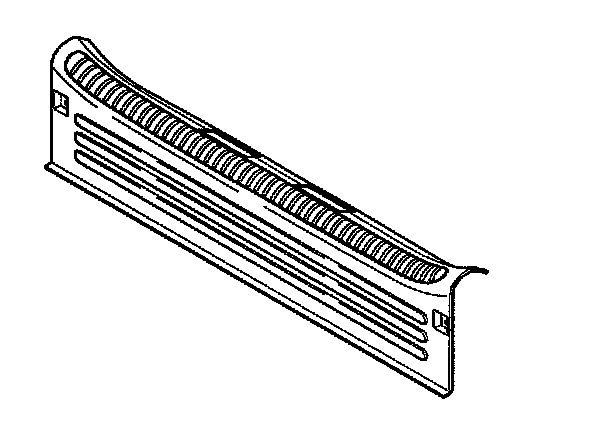

Trunk End Trim

4 DOOR

Removal
1. Remove three fasteners.




2. Unfasten trunk end trim.
3. Remove trunk end trim.

Installation
1. Position trunk end trim.
2. Install three fastener to trunk end trim.

5 DOOR

Removal
1. Remove trunk corner trim. Refer to "Trim".




2. Remove one fastener on trunk end trim.
3. Remove trunk end trim.

Installation
1. Position trunk end trim.
2. Install one fastener on trunk end trim.
3. Remove trunk corner trim. Refer to "Trim".
