Front Wiper Blade

Front windshield wiper blade

Removal

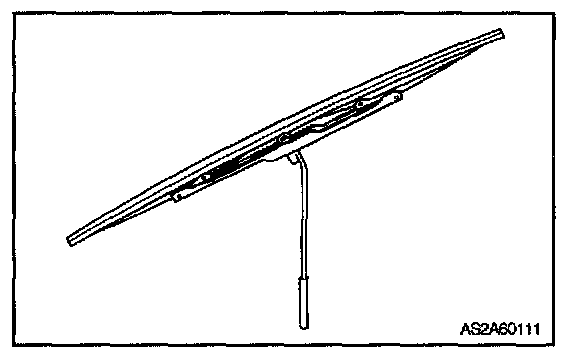

1. Raise wiper arm off windshield into upright locked position.

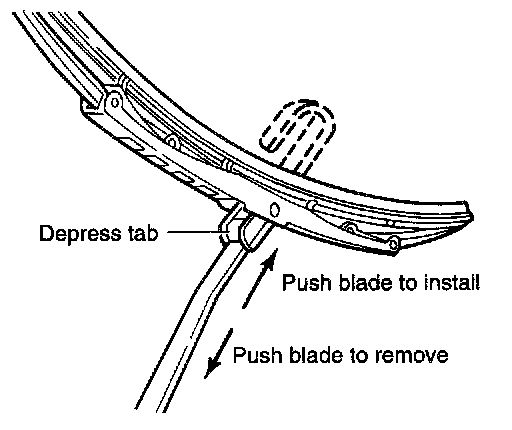

2. Pivot blade until locking tab is exposed and then press in.

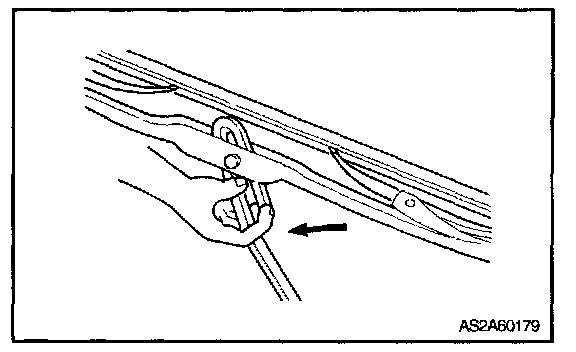

3. Slide wiper blade down arm until hook has separated from blade.




4. Slide blade up arm until it clears hook.

Installation

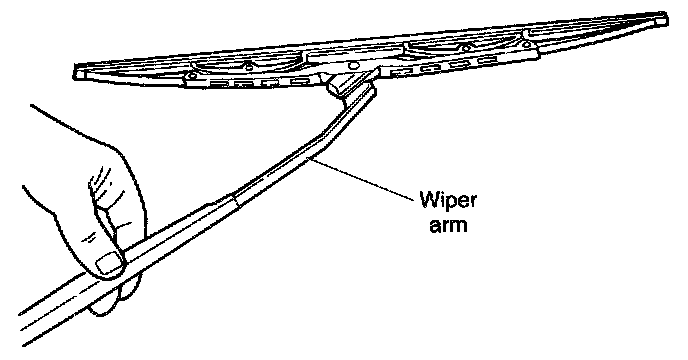

1. Place new blade on wiper arm, taking care that open side of hook is facing connection point.
2. Move blade (left or right) until connection point is at opening of hook.
3. Push blade into hook until lock tab sets.




4. Lower wiper arm to windshield.
