Windshield Wiper/Washer System:

Front washer system

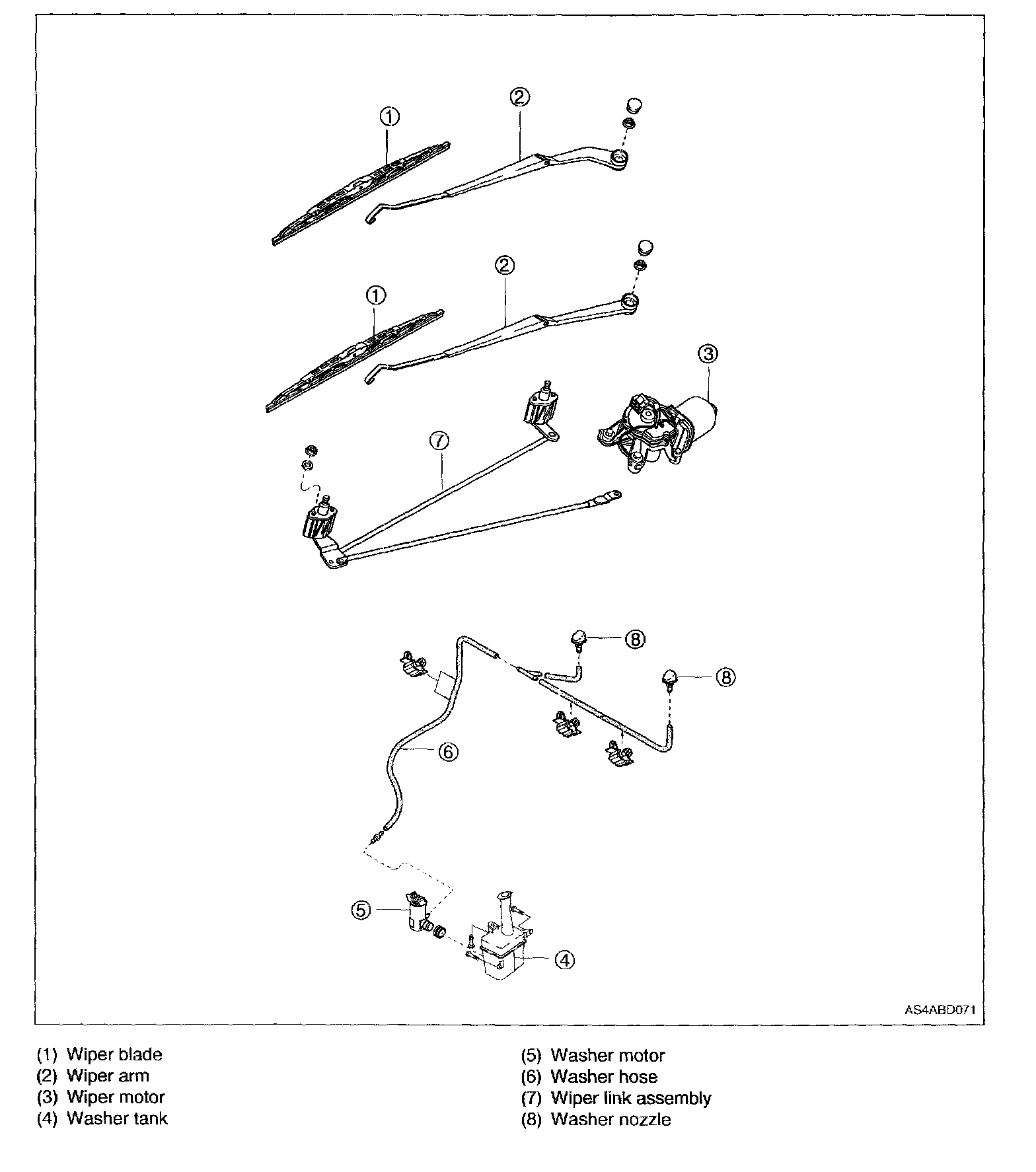

This is equipped with a variable speed (intermittent), modular wiper/washer system. Wiper system consists of a wiper motor, a wiper link assembly, and two wiper arms with blades. Washer assembly consists of a washer tank, a washer motor, two washer nozzles, and connecting hoses. Both systems are then connected to a wiper lever and a timer unit in steering column combination switch.

Hoses
Washer hoses are neoprene lines that carry washer fluid to washer nozzles. There are three hose pieces, a three-port hose joint, and a two-part hose joint. Hoses can be replaced individually. Washer hose system also has three replaceable hold-down clips.

Lever assembly
Wiper assembly is located in combination switch on steering column.

Motor
Washer motor pumps washer fluid to washer nozzles. It is a single speed 12 V DC motor to a pump mechanism. It is a replaceable item.

Nozzles
Washer nozzles deliver washer fluid directly to windshield. Nozzles are replaceable as an individual item.

Tank assembly
Washer tank assembly stores washer fluid used by washer system. It is a plastic assembly with a fill port and a connection port to washer motor. It is a replaceable item.

Timer unit
Timer unit controls intermittent operation of wiper system. It is part of wiper unit assembly in steering column combination switch.
