Component Tests and General Diagnostics

Selector lever
Operation inspection

Notice: Shift selector lever from P range to other ranges with ignition switch ON and brake pedal depressed.

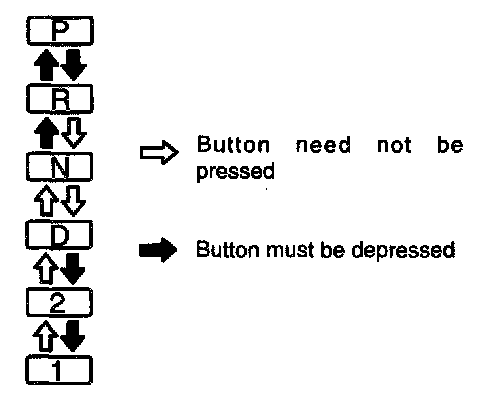

1. Verify that selector lever can only be shifted as shown in figure.
2. Verify that there is a click at each range when shifted from P -> 1 range.
3. Verify that positions of selector lever and indicator are aligned.





4. Verify that button returns smoothly when pushed.
