Electrical Diagrams

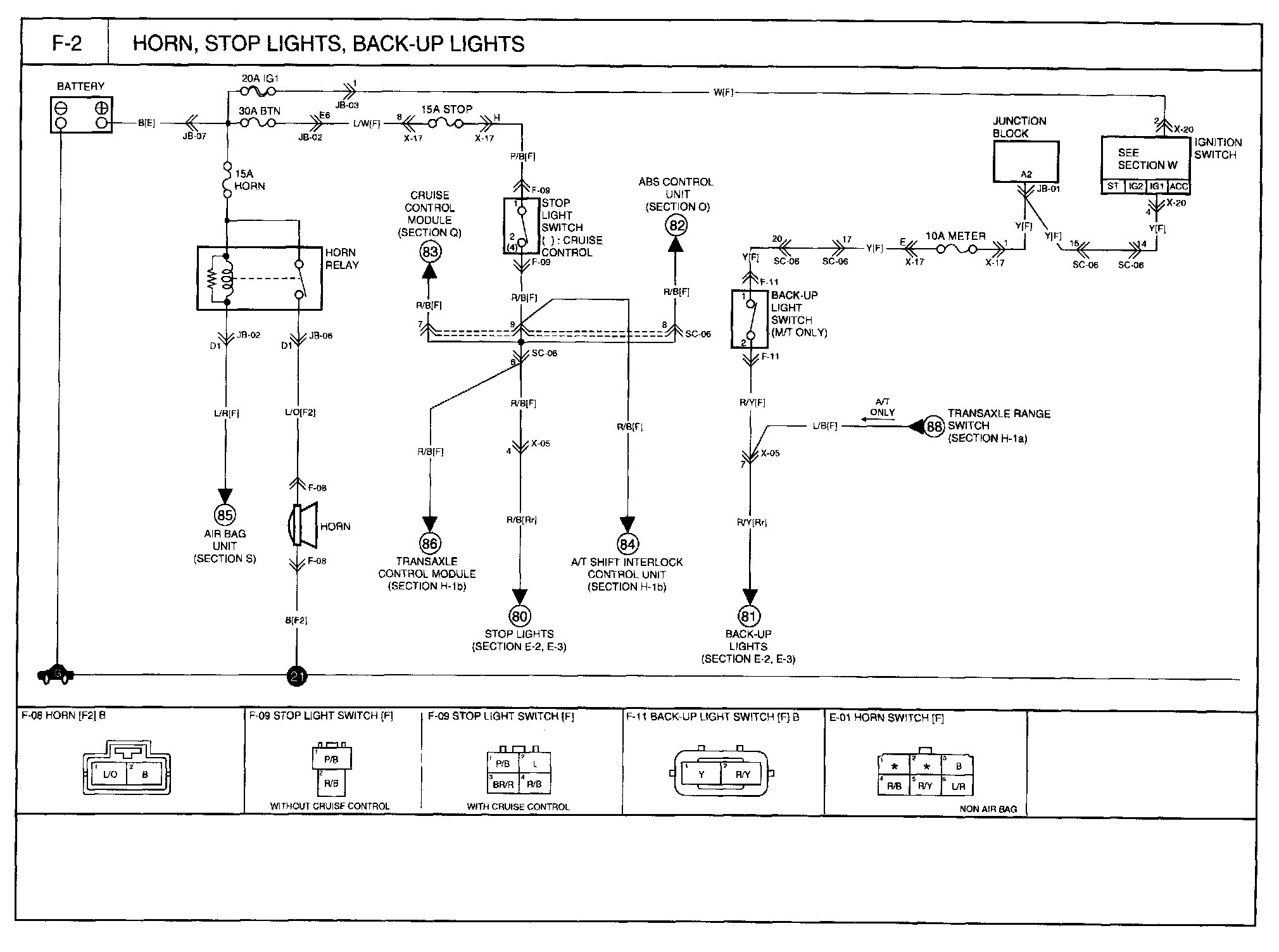

F-2 - Horn, Stop Lights, Back-Up Lights Circuit:

NOTE: Other diagrams referred to by section number but not shown here can be found at Diagrams by Diagram Section Number. Electrical Diagrams
