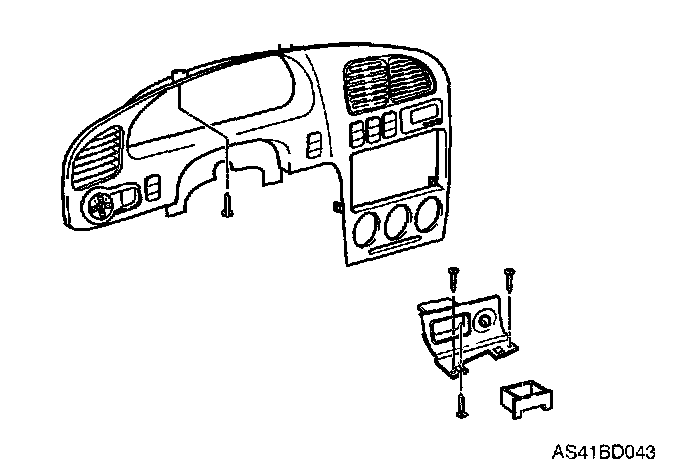

Instrument Cluster Trim

4 DOOR

Removal
1. Disconnect negative battery cable.
2. Remove ashtray.




3. Remove center panel trim. Refer to "Center panel trim".
4. Remove two instrument cluster mounting screws.
5. Disconnect electric connectors.
6. Remove trim.

Installation
1. Connect switch connectors.
2. Place instrument cluster trim into place in front of instrument cluster.
3. Install two screws.
4. Install center panel trim. Refer to "Center panel trim".
5. Connect negative battery cable.

5 DOOR

Removal
1. Disconnect negative battery cable.
2. Remove driver air bag module.
3. Remove steering wheel, turn signal assembly, and upper/lower column covers.




4. Remove boot cover from top of console.

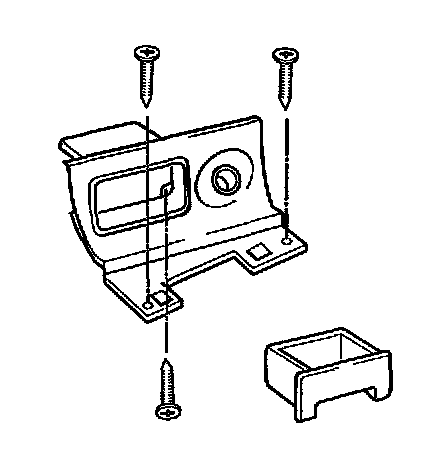

5. Remove center panel.
a. Remove ashtray from center panel.
b. Remove three screws from front side of panel.




c. Disconnect electrical connector from rear of center panel.

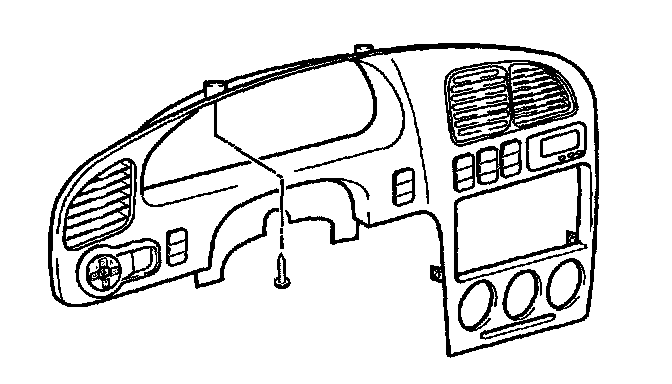

6. Remove instrument cluster trim.
a. Remove two screws from instrument cluster trim.
b. Remove instrument cluster trim from mounting space.




c. Disconnect electrical connector from rear of unit.

Installation
Install instrument cluster trim in reverse order of removal.
