Home >> Kia >> 2002 >> Spectra GS L4-1.8L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Testing and Inspection

Engine: Testing and Inspection

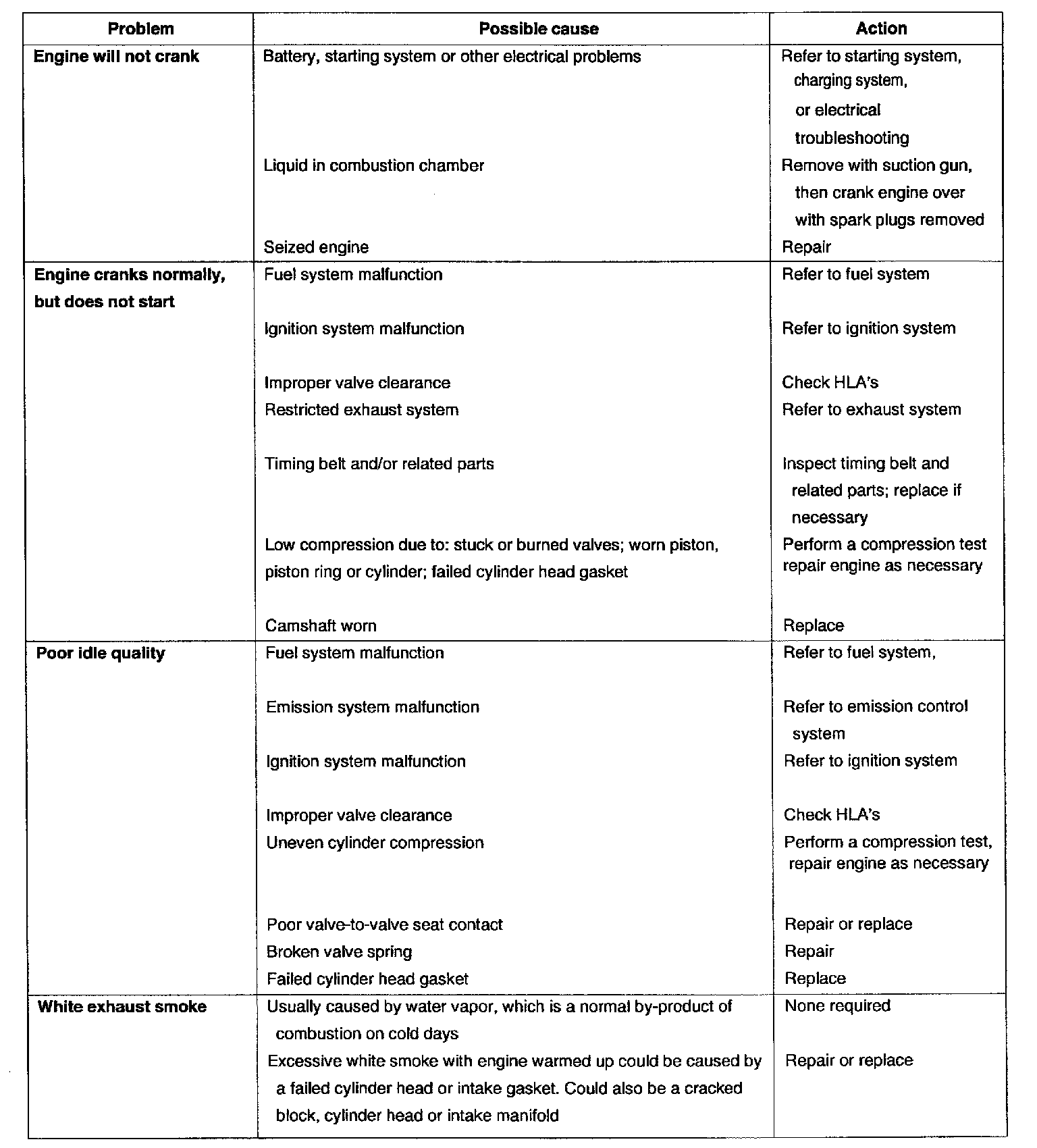

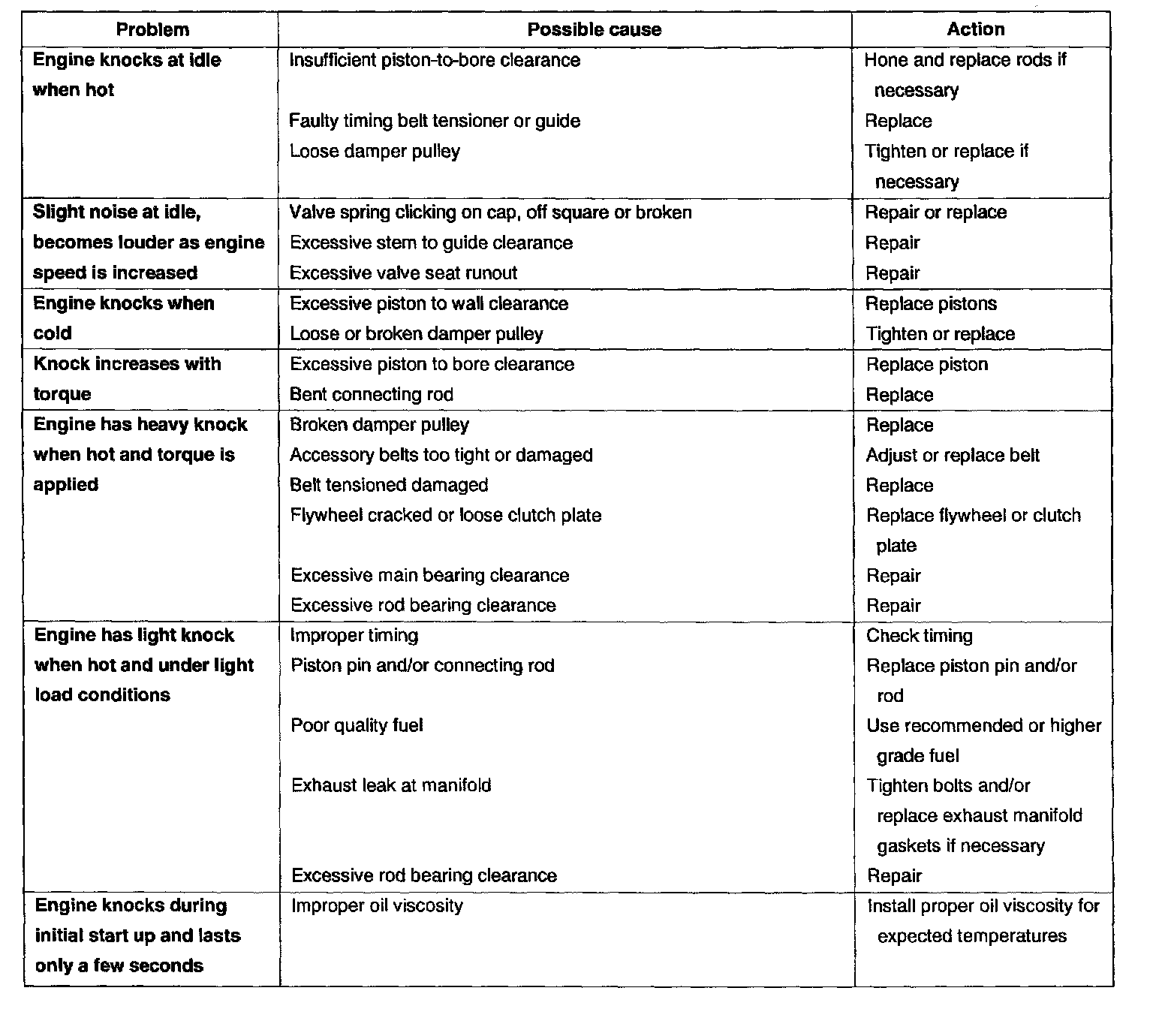

DIAGNOSTIC CHART





1 of 3





2 of 3





3 of 3
