O - Anti-Lock Brake System (ABS)
O - Anti-Lock Brake System (ABS)

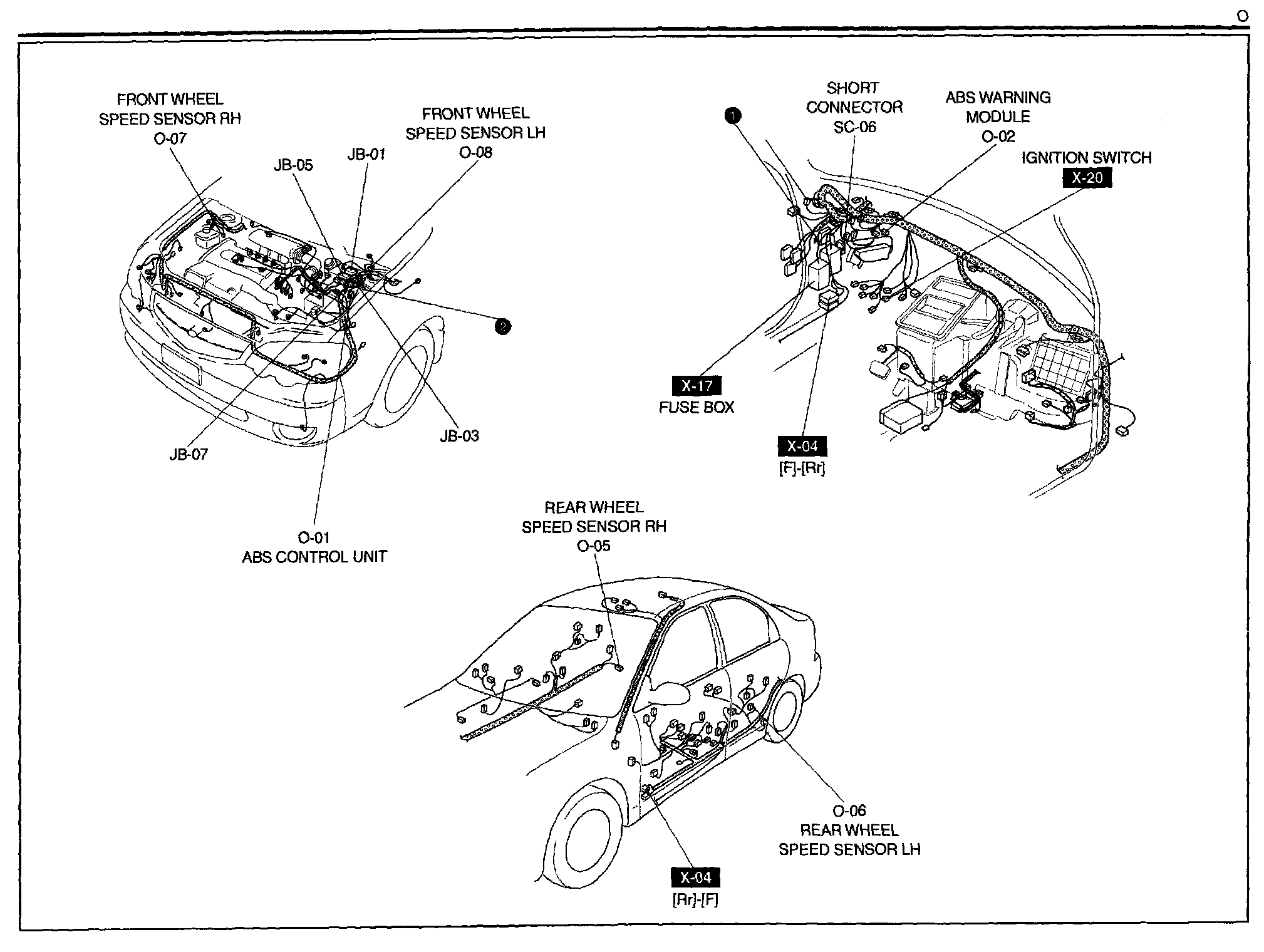

O - Anti-lock Brake System Harness / Connectors Symbols:
