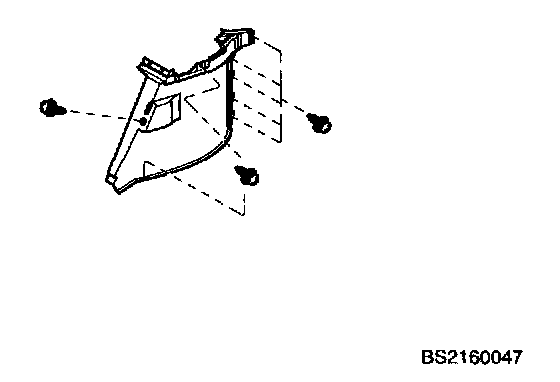

Trunk Side Trim

Removal
1. Remove shelf side trim. Refer to "Trim".
2. Remove trunk corner trim. Refer to "Trim".




3. Remove six fasteners on trunk side trim.
4. Remove trunk side trim.

Installation
1. Position trunk side trim.
2. Install six fasteners on trunk side trim.
3. Install trunk corner trim. Refer to "Trim".
4. Install shelf side trim. Refer to "Trim".
