Electrical Diagrams

K-1 - Power Window System (2 Button) Circuit:

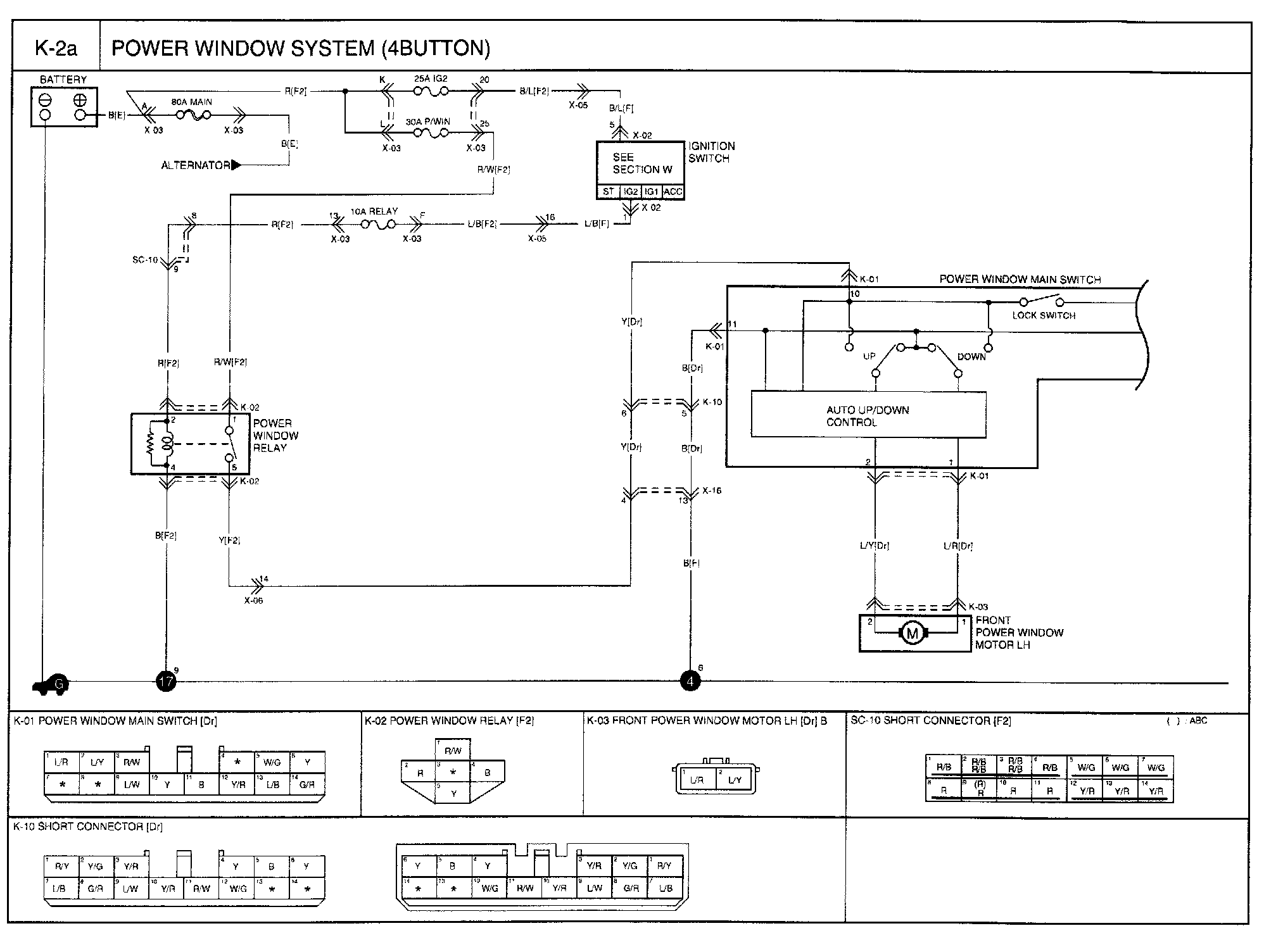

K-2a - Power Window System (4 Button) Circuit:

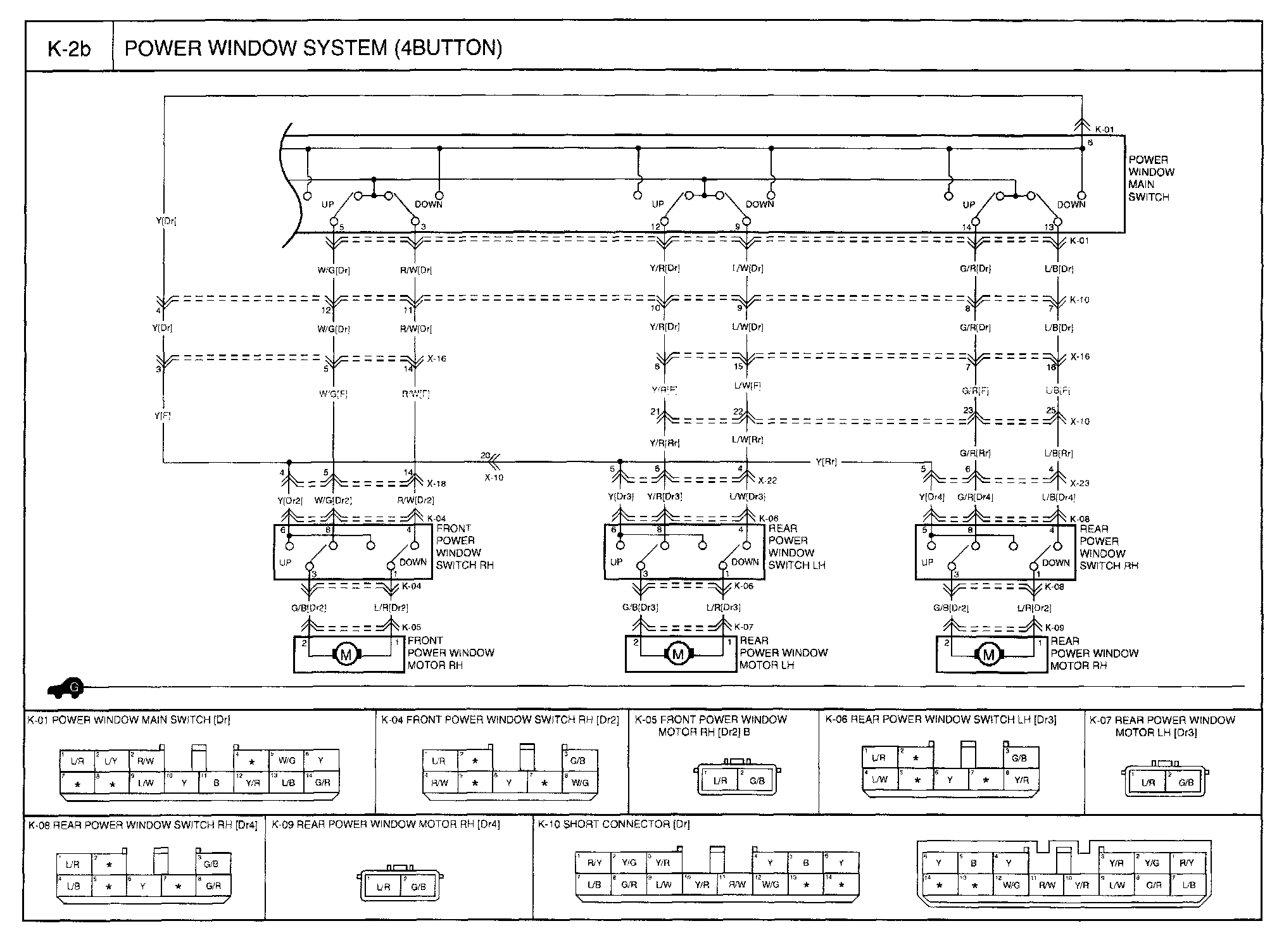

K-2b - Power Window System (4 Button) Circuit:

NOTE: Other diagrams referred to by section number but not shown here can be found at Diagrams by Diagram Section Number. Electrical Diagrams
