Symptom 9 Vehicle Does Not Move In D, 2, and/or R Range
Symptom 9 Vehicle Does Not Move In D, 2, and/or R Range

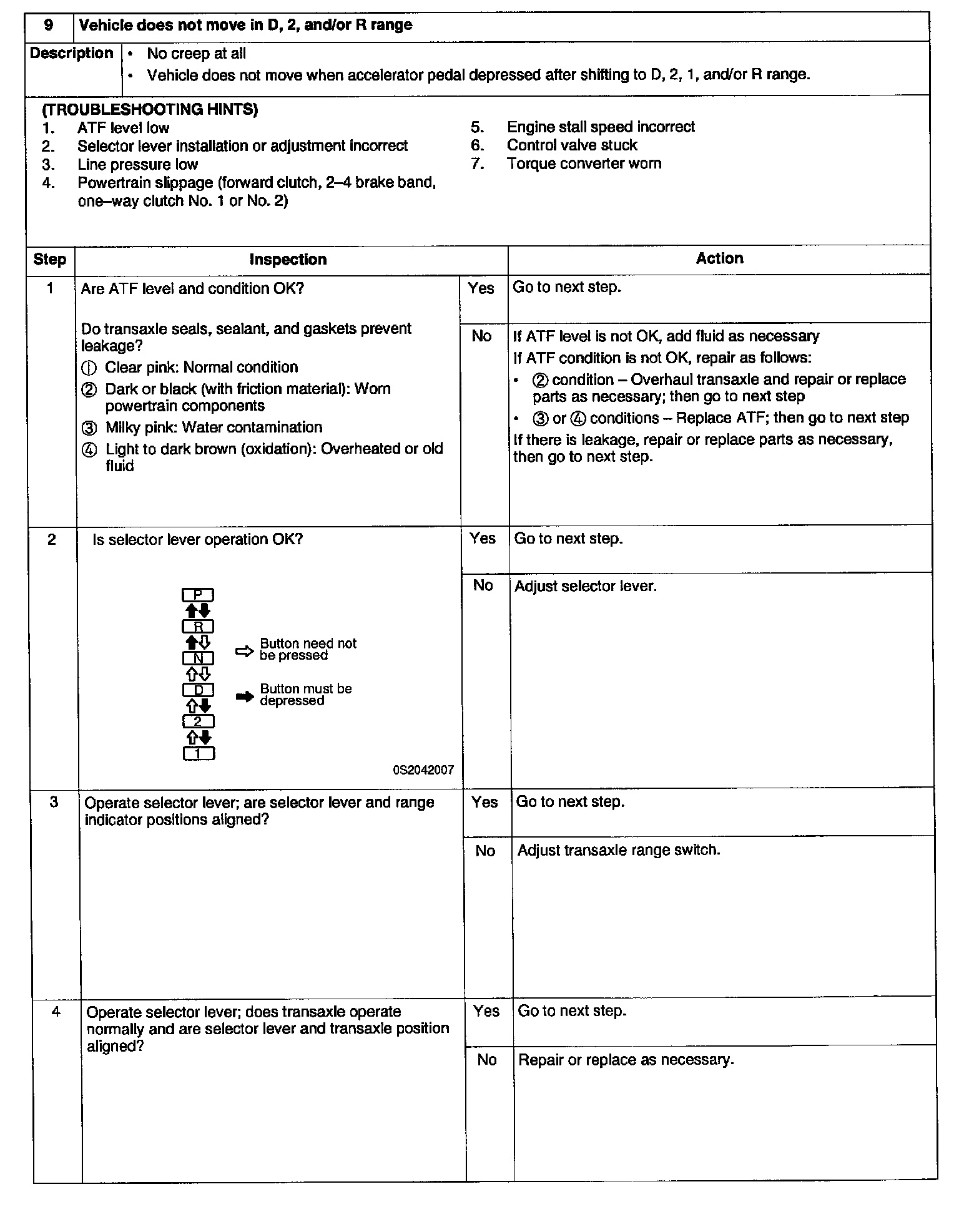

Steps 1 through 4

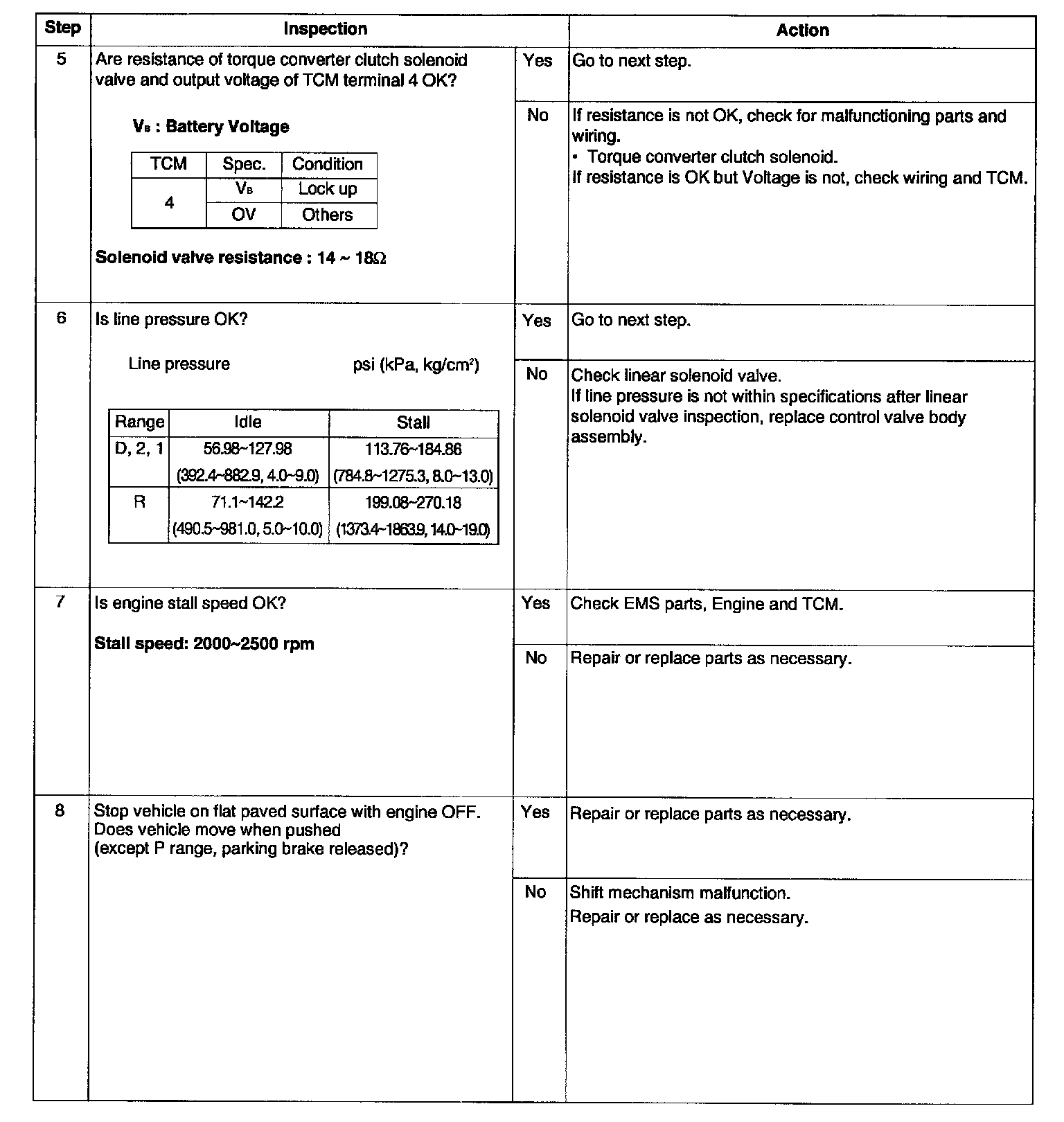

Steps 5 through 8
