Home >> Kia >> 2002 >> Rio L4-1.5L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Troubleshooting Procedures >> Symptom 18 No Kickdown

Symptom 18 No Kickdown

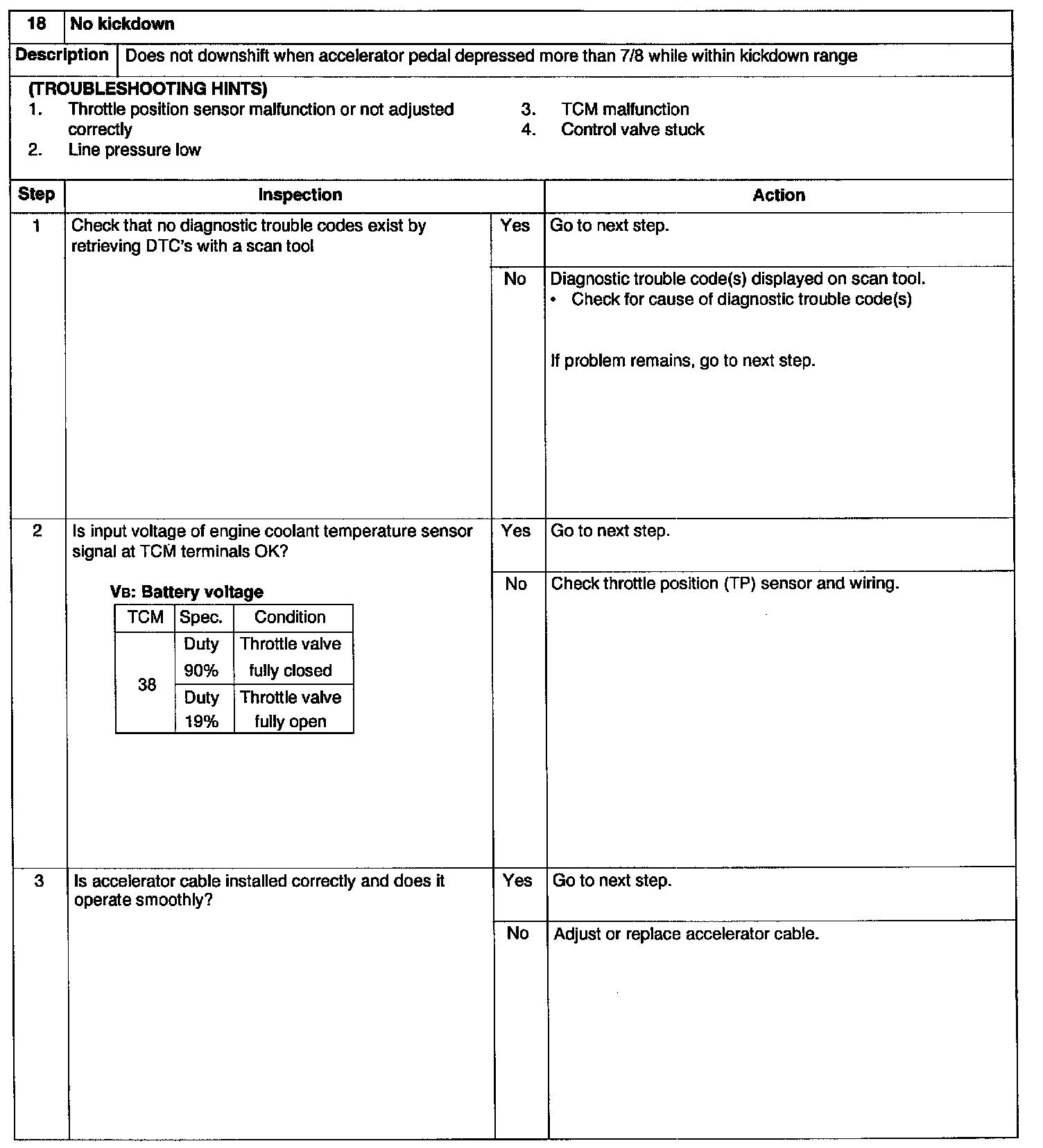

Steps 1 through 3

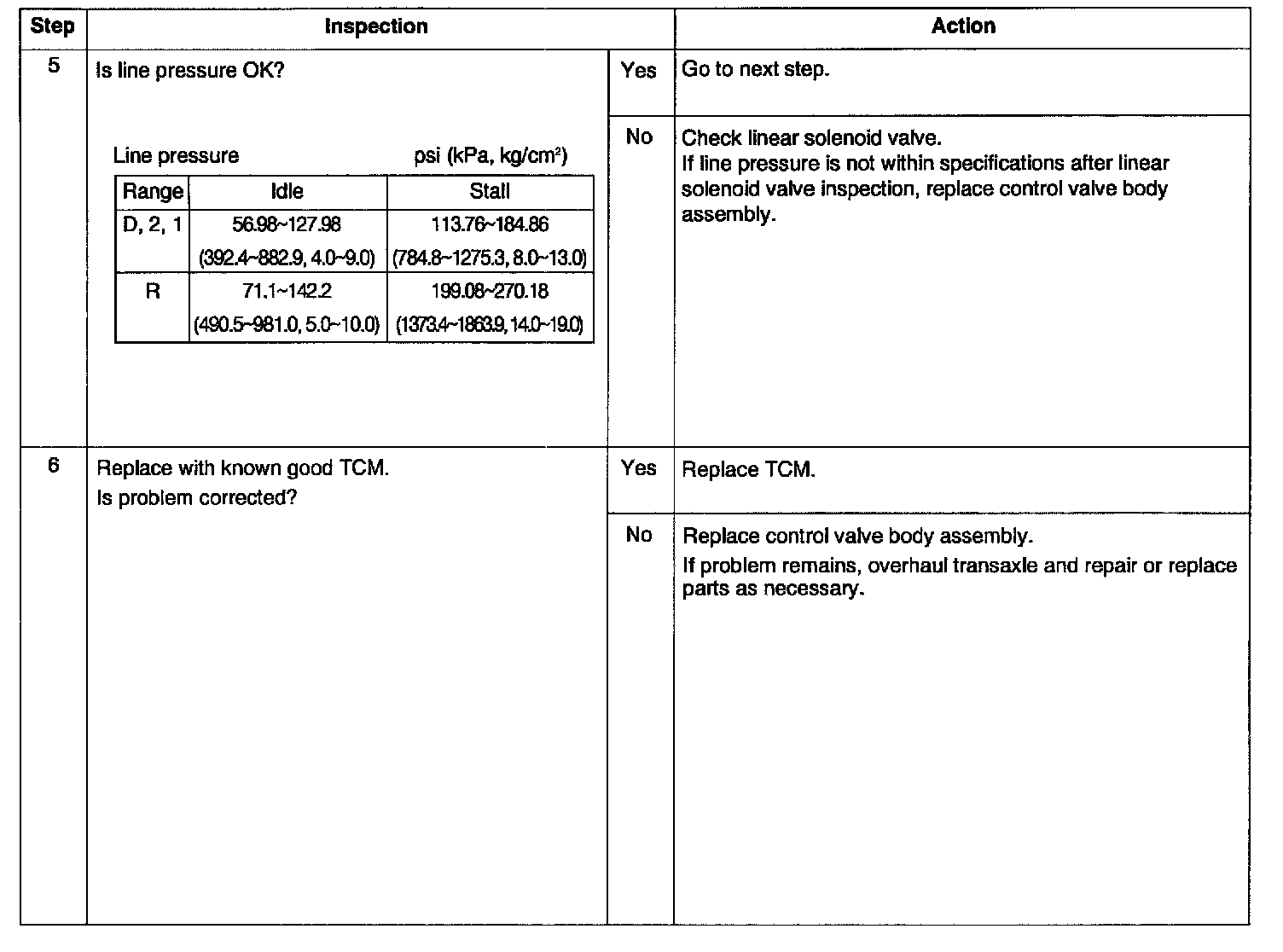

Steps 5 and 6

NOTE: OEM did not supply the information for step 4.
