Home >> Kia >> 2002 >> Rio L4-1.5L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Troubleshooting Procedures >> Symptom 16 Shift Point High or Low

Symptom 16 Shift Point High or Low

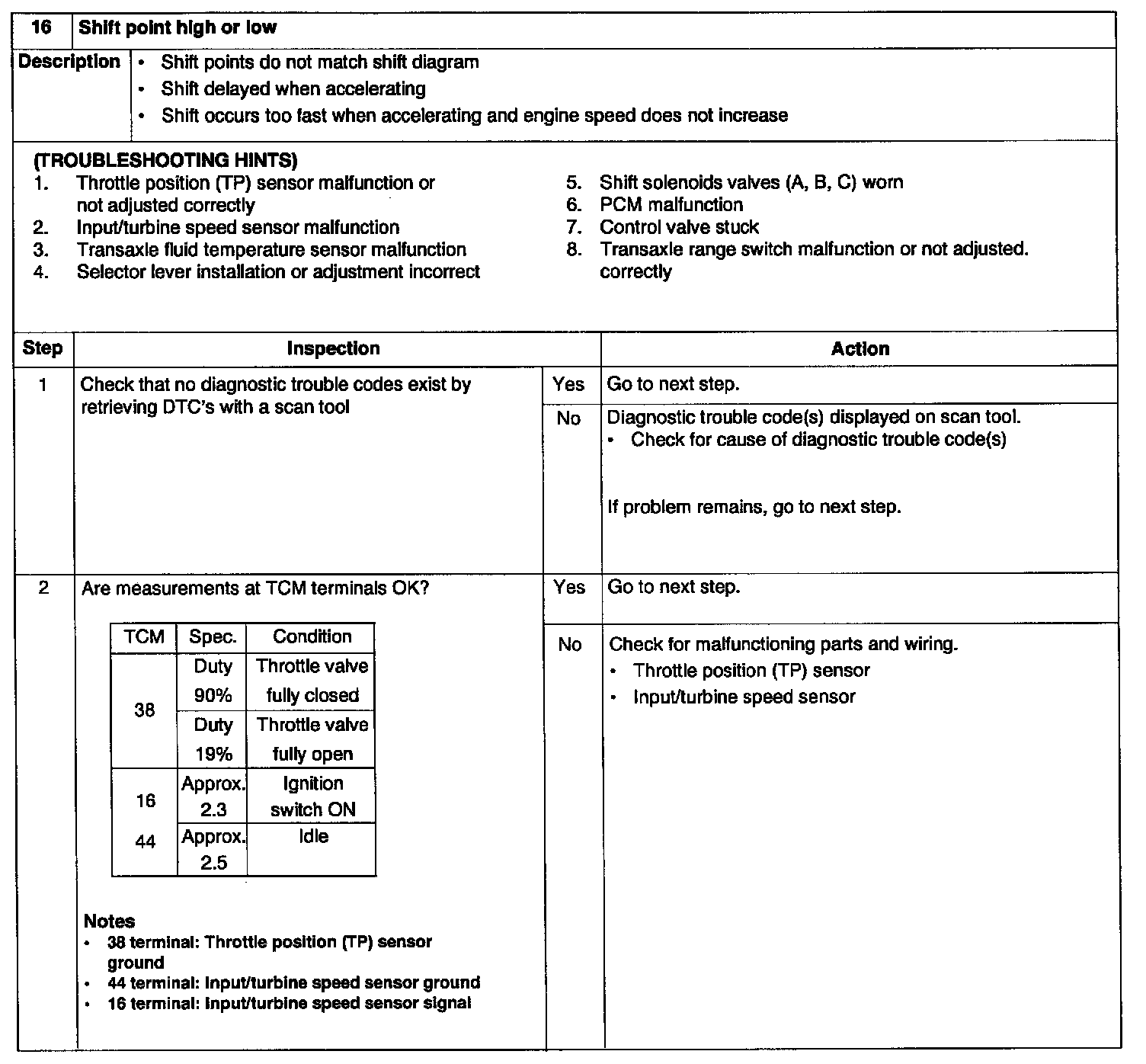

Steps 1 and 2





Steps 3 through 6

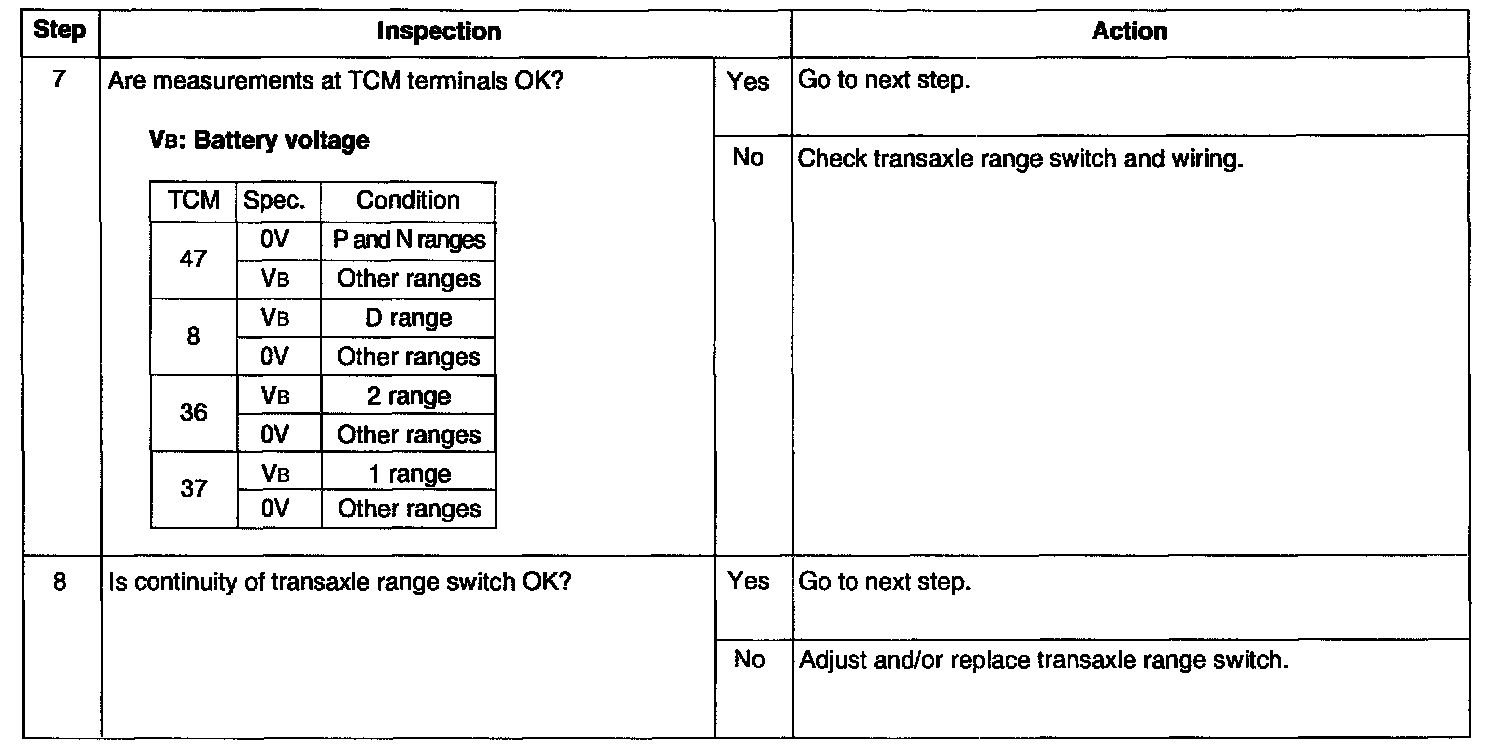

Steps 7 and 8

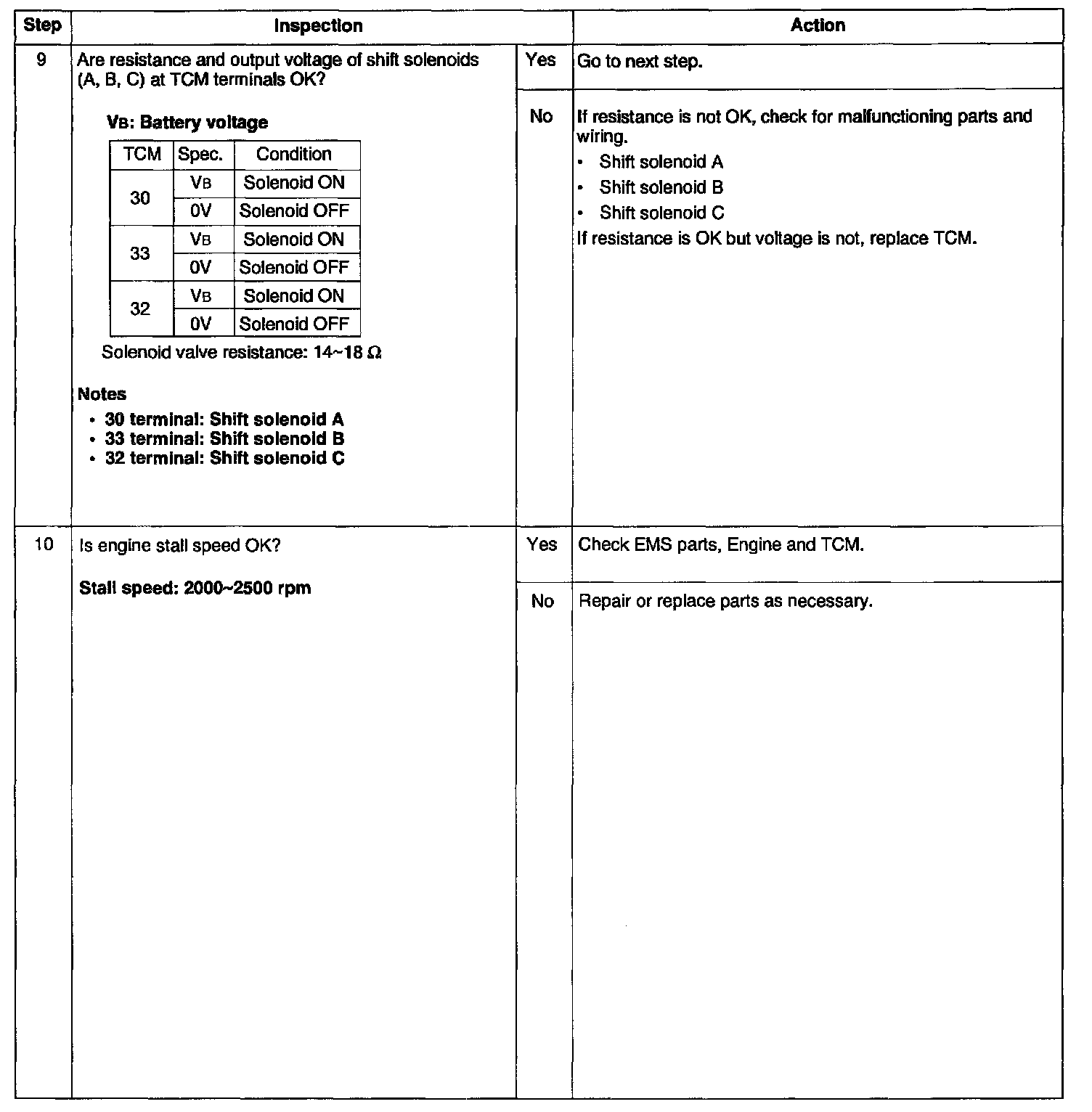

Steps 9 and 10
