Home >> Kia >> 2002 >> Rio L4-1.5L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Troubleshooting Procedures >> Symptom 13 No Shift

Symptom 13 No Shift

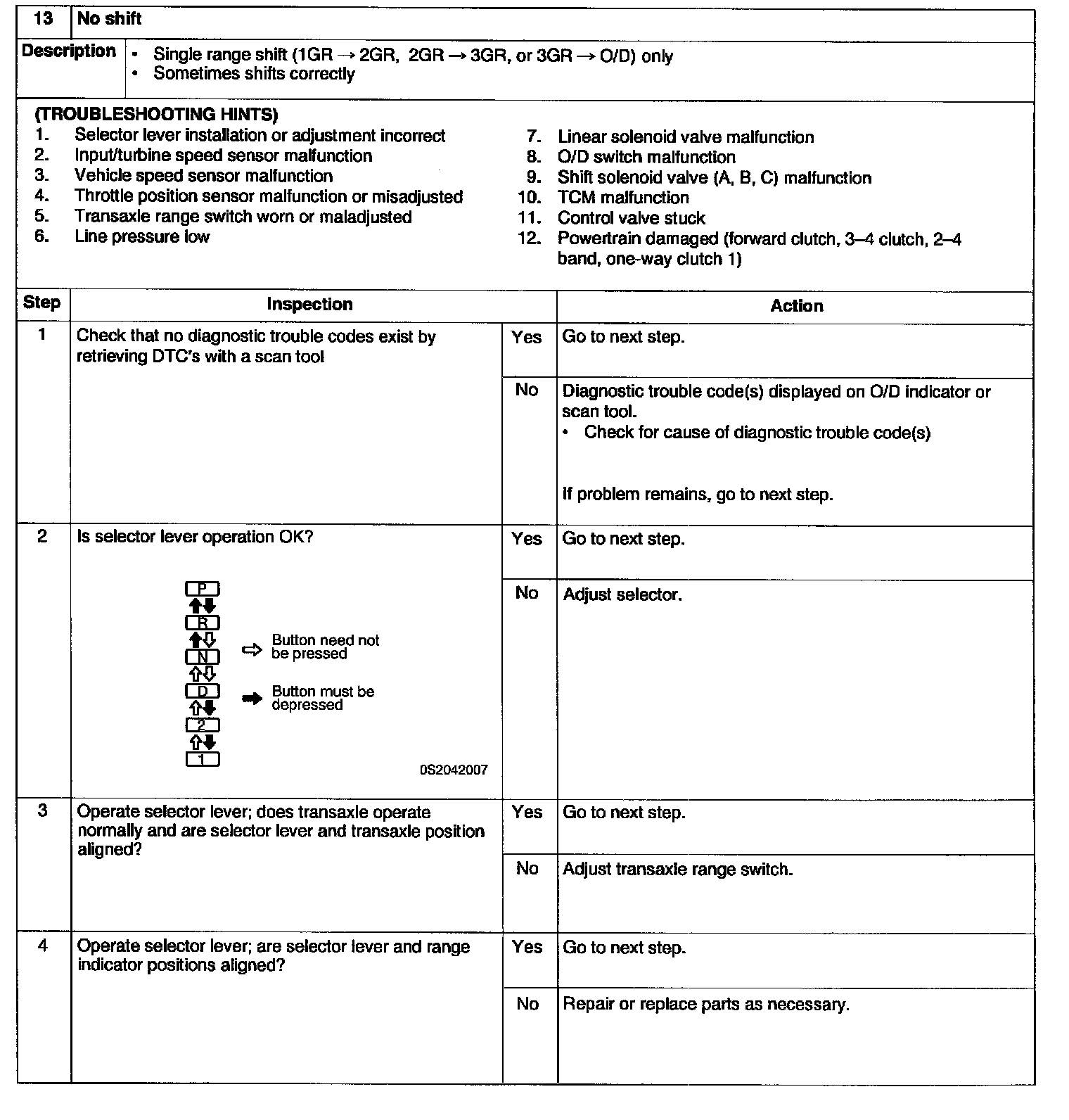

Steps 1 through 4

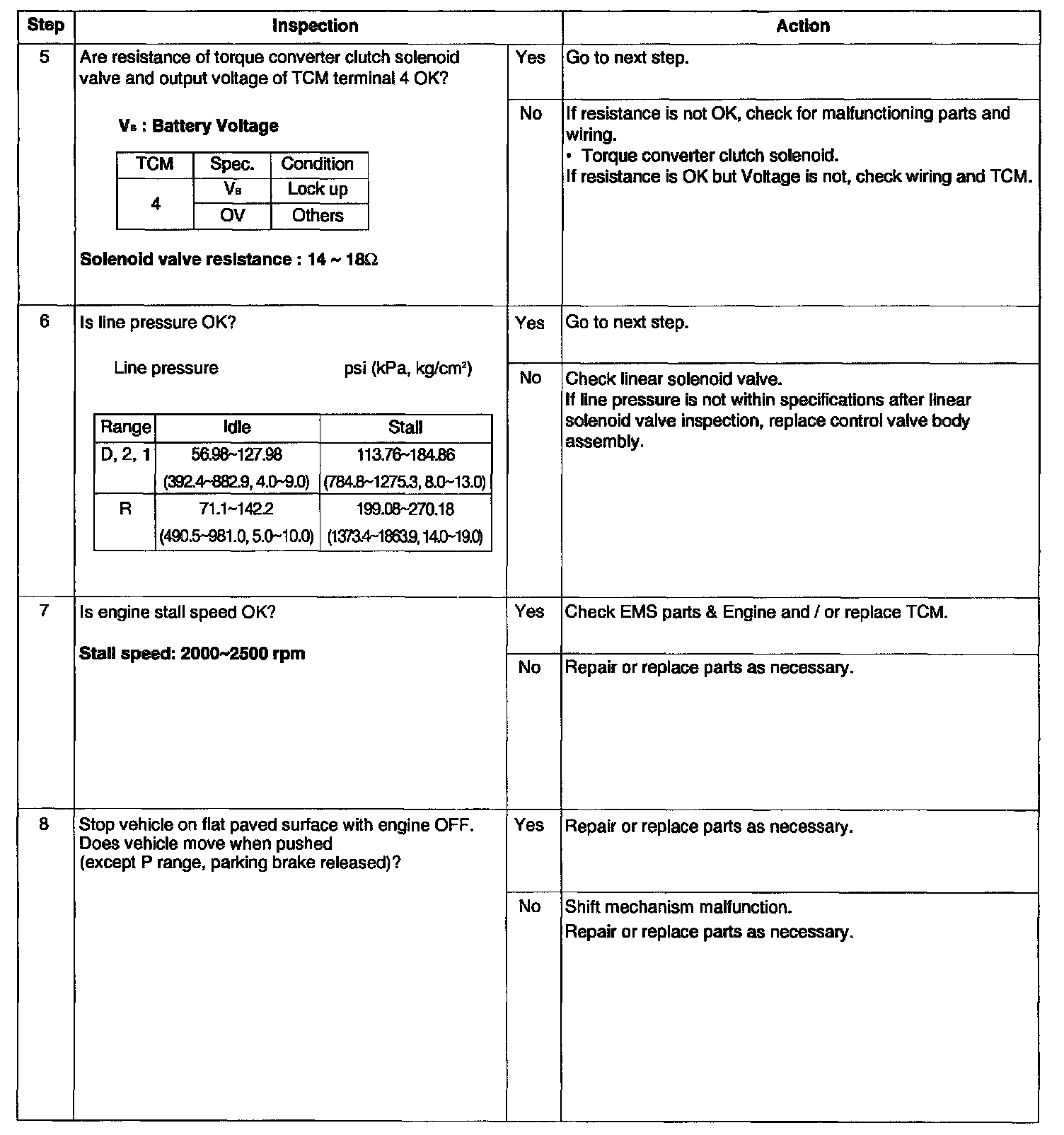

Steps 5 through 8

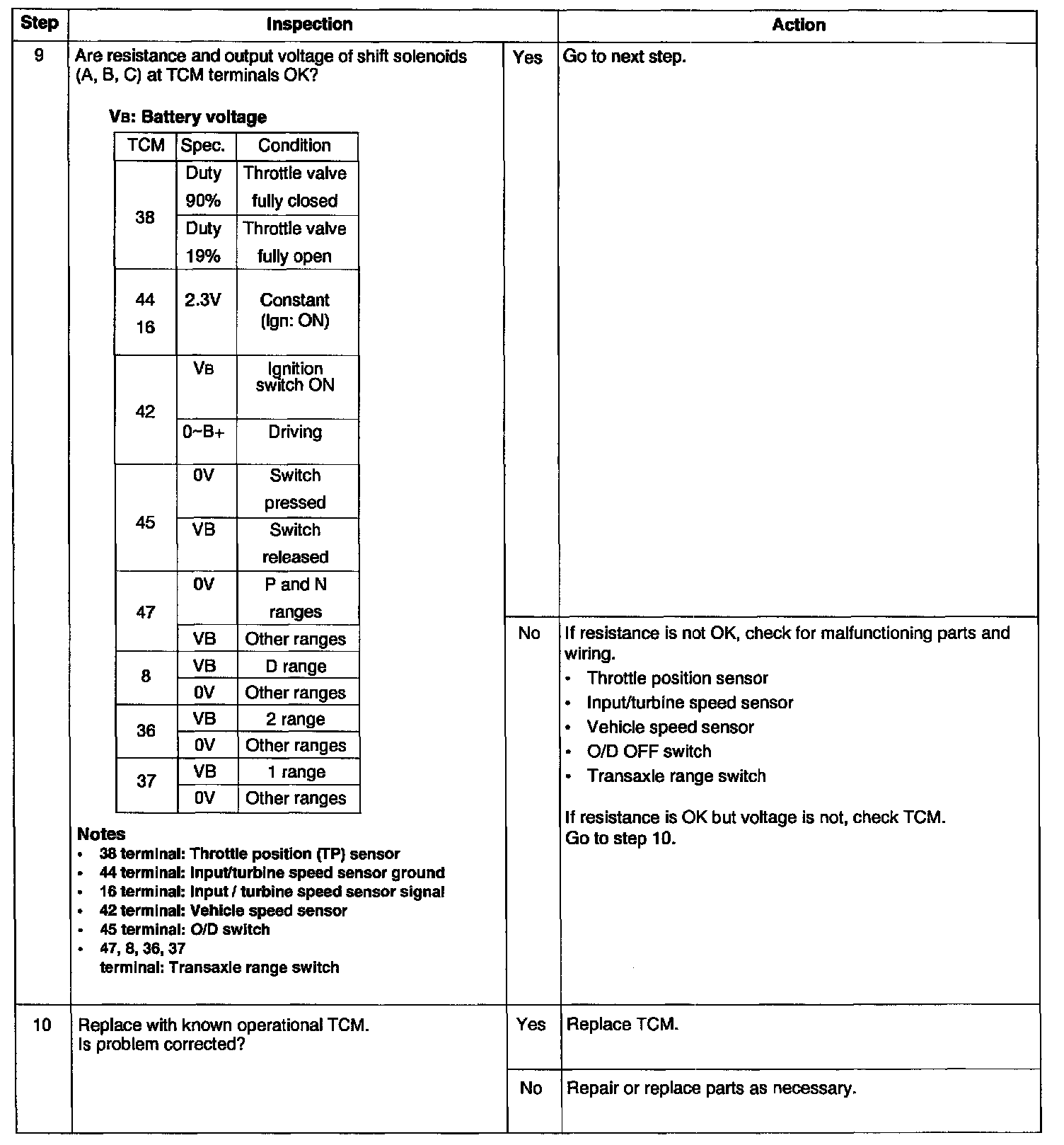

Steps 9 and 10





Steps 11 and 12
