Pinout Values and Diagnostic Parameters

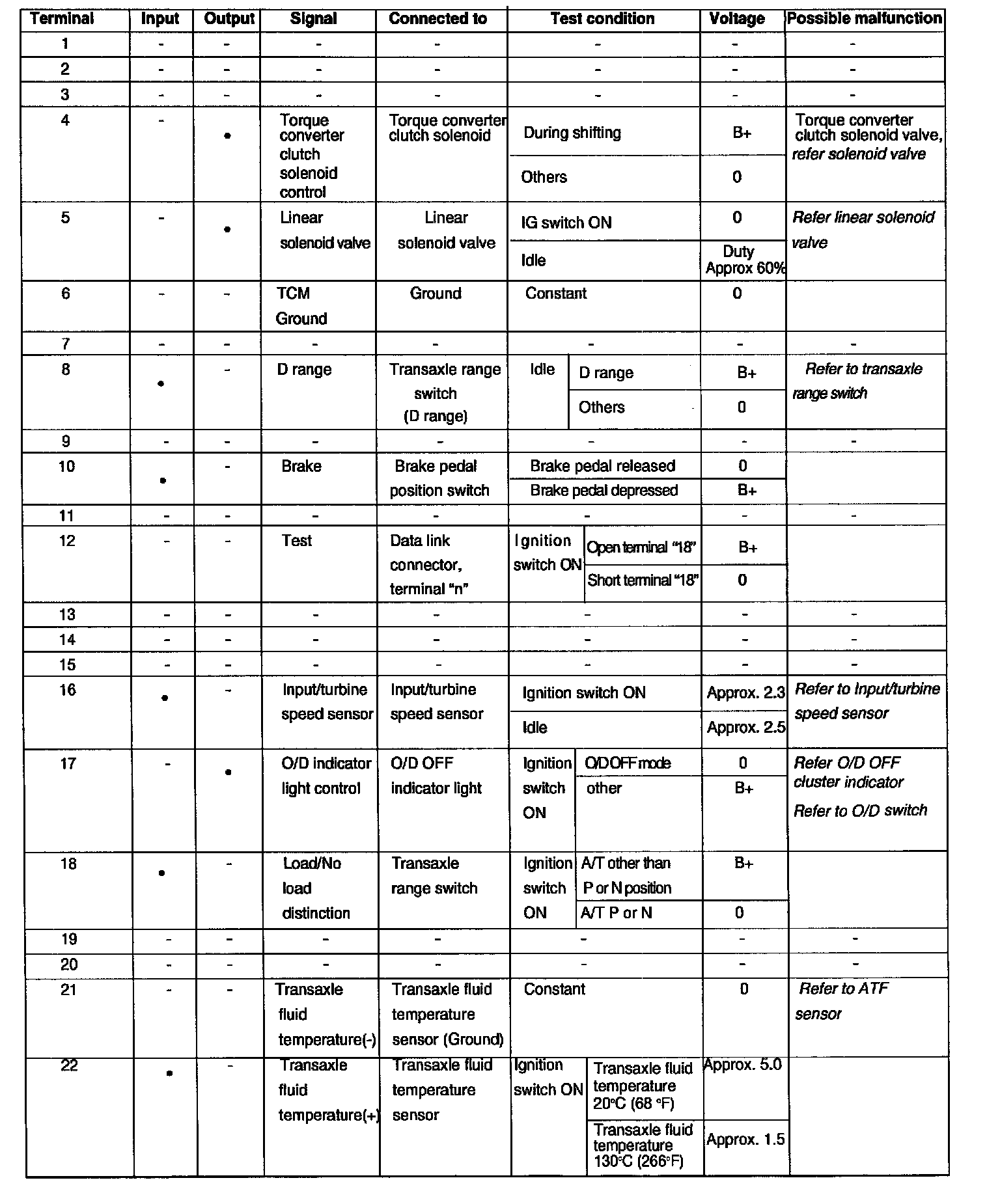

TCM terminal voltage chart (Pins 1 through 22)

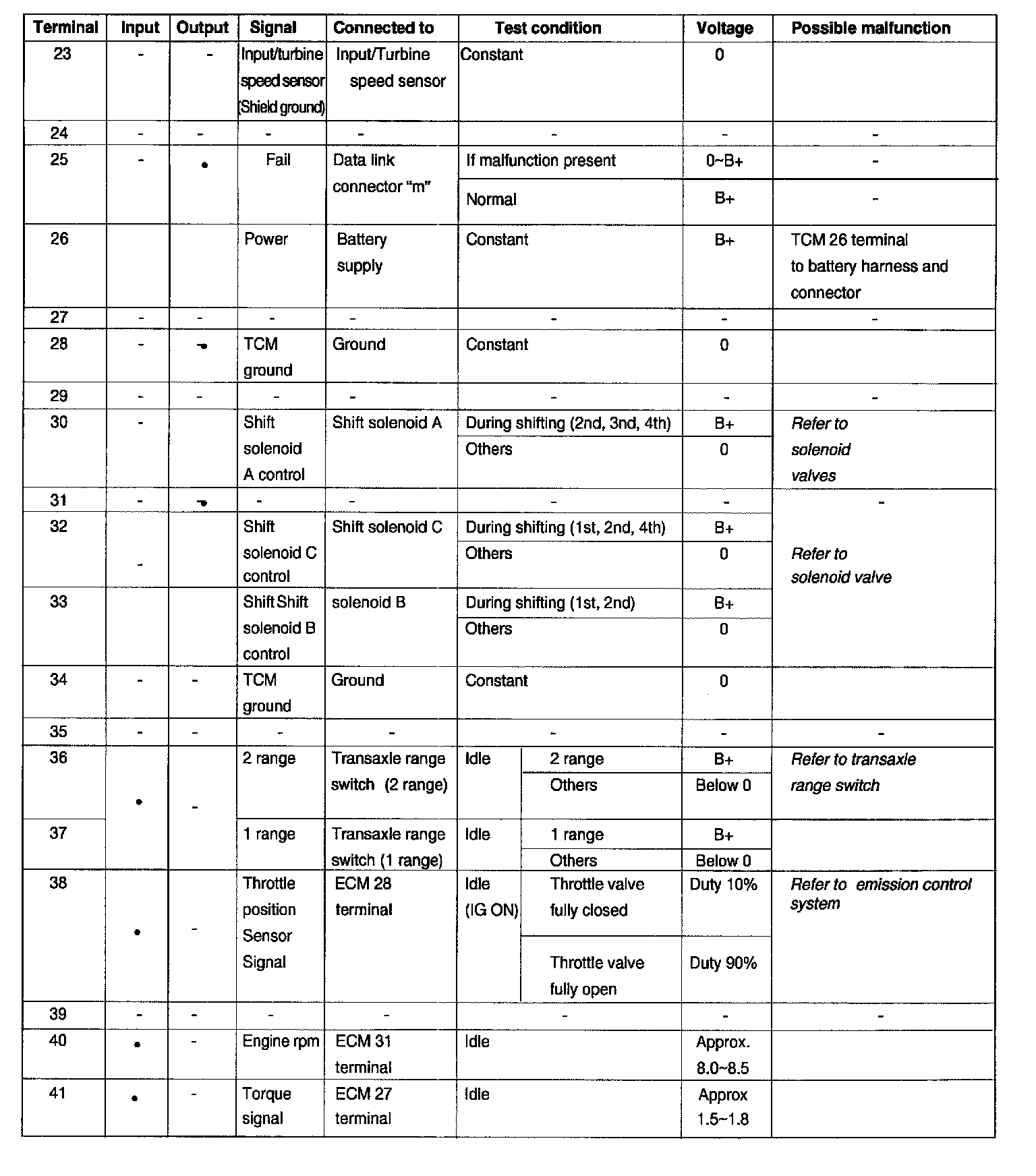

TCM terminal voltage chart (Pins 23 through 41)

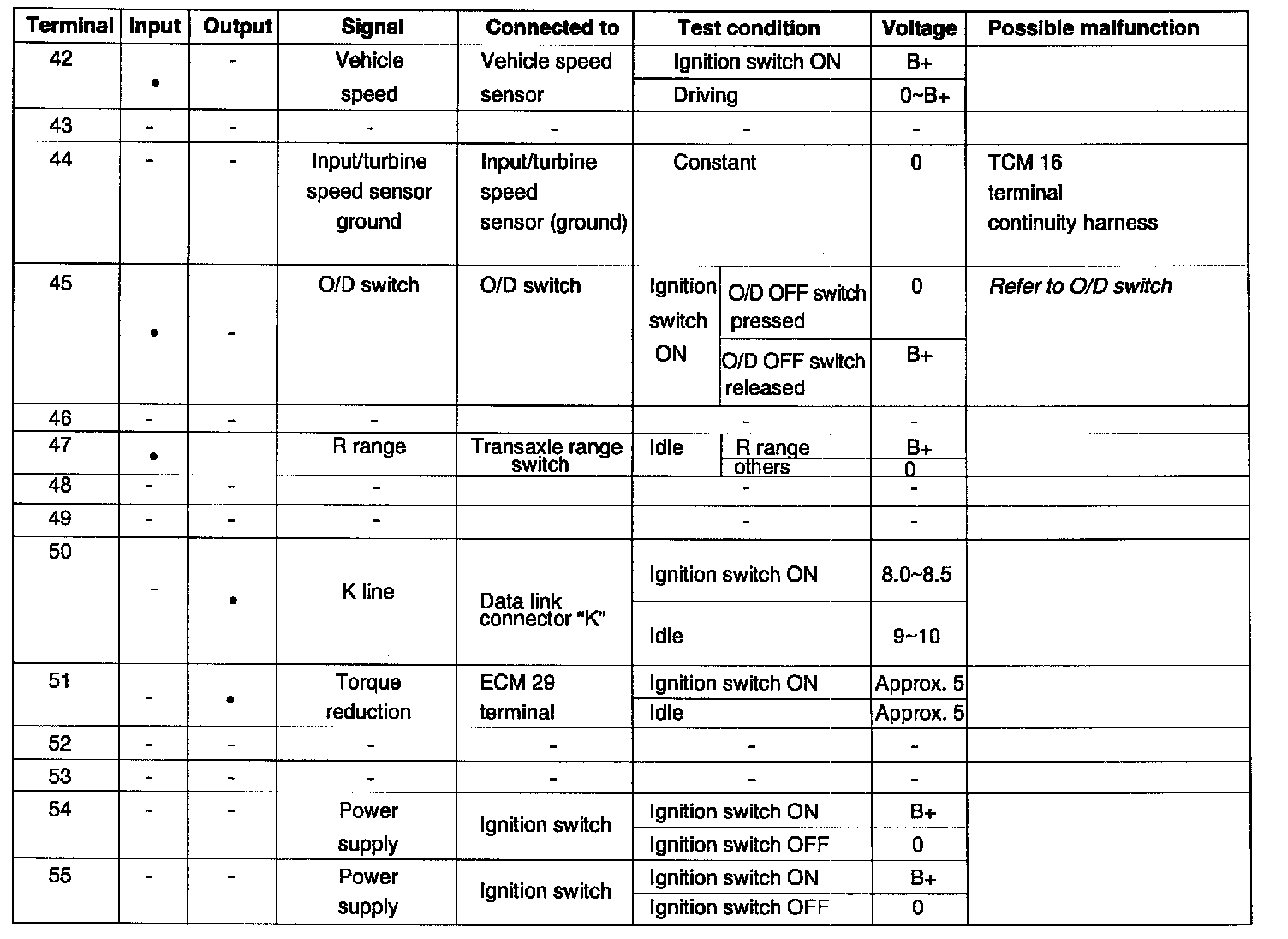

TCM terminal voltage chart (Pins 42 through 55)
