One-Way Clutch No.2 and Planetary Carrier Assembly

Disassembly

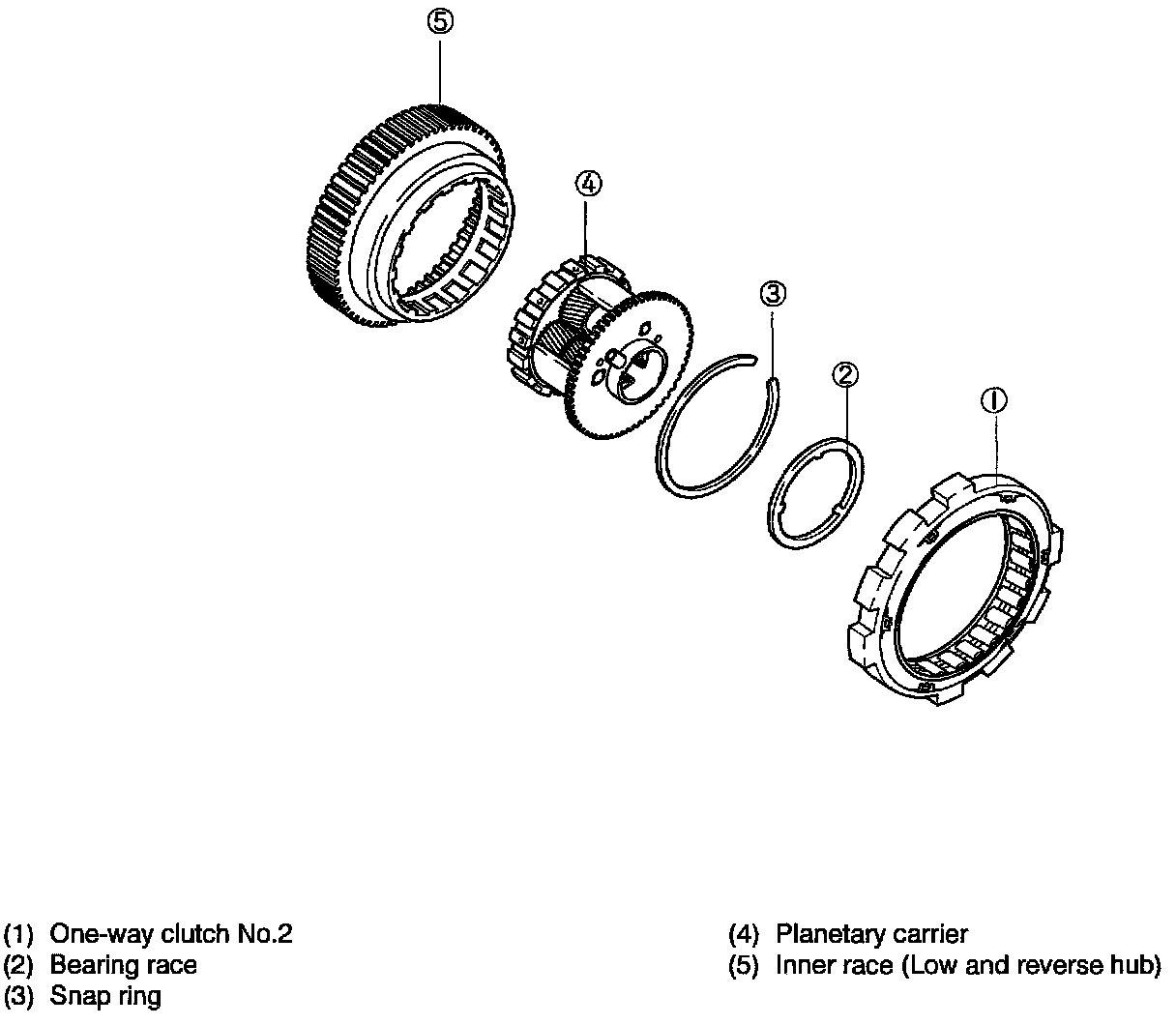

1. Disassembly in order shown in figure.

Inspection
One-way clutch No.2





1. Check for following and repair or replace as necessary

Notice: Assembly on-way clutch and inner race, then verify that one-way clutch rotates only clockwise and smoothly.

a. Damaged or worn one-way clutch and operation.
b. Detached roller.

Planetary carrier





1. Check for following and repair or replace as necessary.
a. Damage or worn gear and operation.
b. Clearance between pinion washers and planetary carrier.
Clearance: 0.008 - 0.028 inch (0.2 - 0.7 mm)

Reassembly





1. Assembly planetary carrier to inner race.
2. Install snap ring.





Notice: Install tangs of bearing race into alignment holes.

3. Apply petroleum jelly to bearing race and secure them to each side of one-way clutch No.2 and planetary carrier assembly.





Bearing race outer diameter:
Sun gear drum side: 3.307 inch (84.0 mm)
