Electrical Diagrams

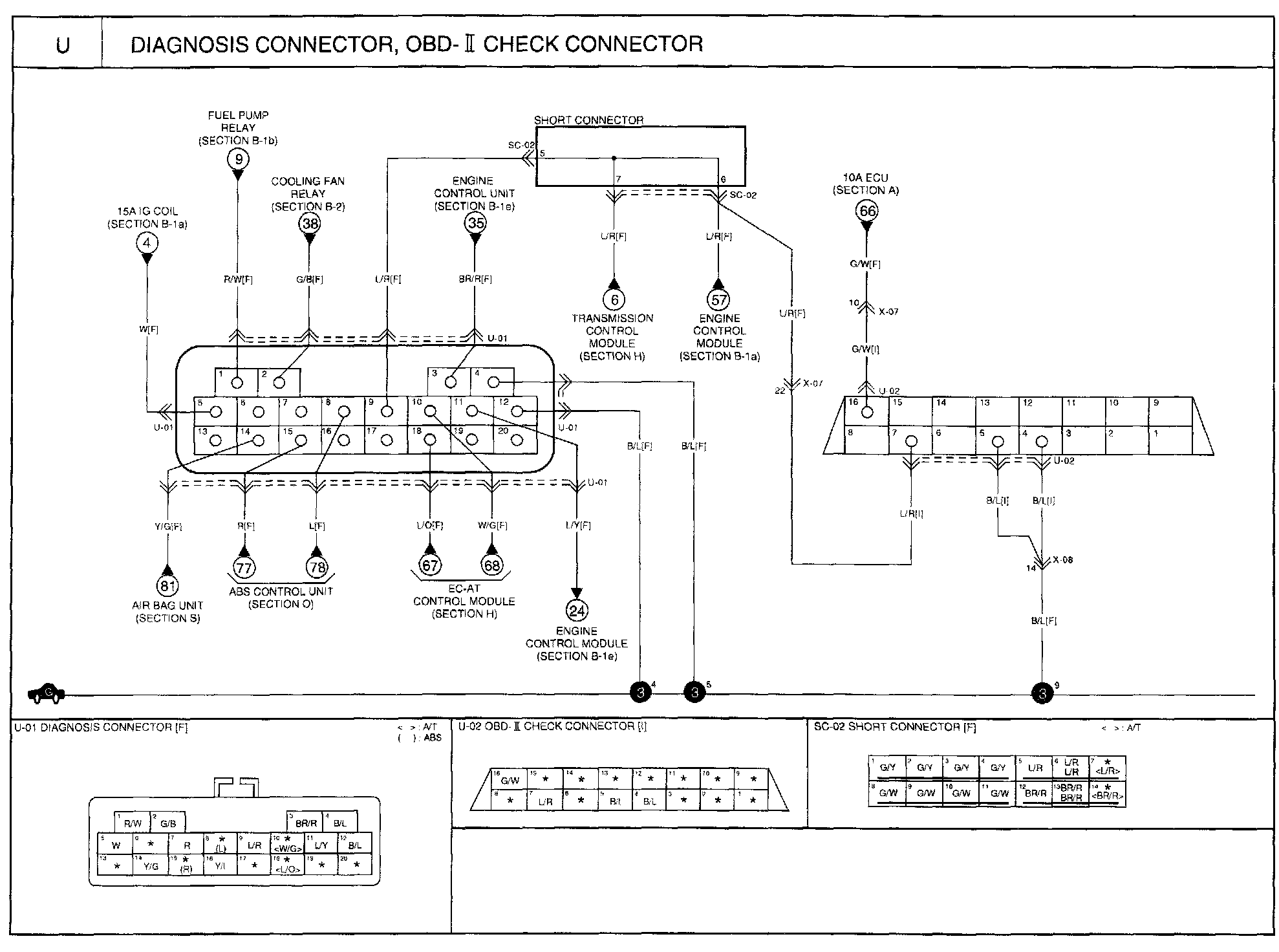

U - Diagnosis Connector, OBD-II Check Connector Circuit:

NOTE: Other diagrams referred to by section number but not shown here can be found at Diagrams by Diagram Section Number. Electrical Diagrams
