Home >> Kia >> 2002 >> Rio L4-1.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Computers and Control Systems >> System Diagram

System Diagram

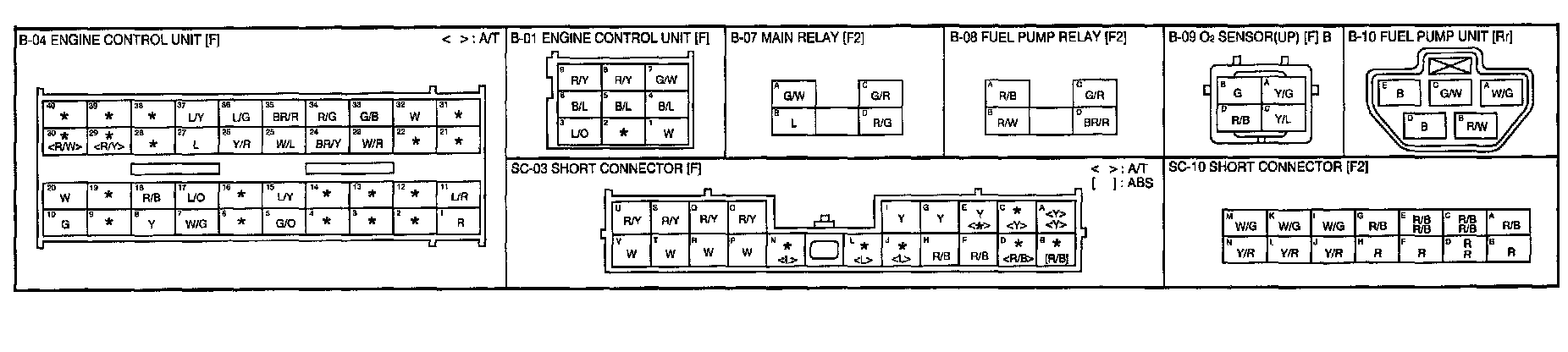

B-1a Engine Control System Connectors:

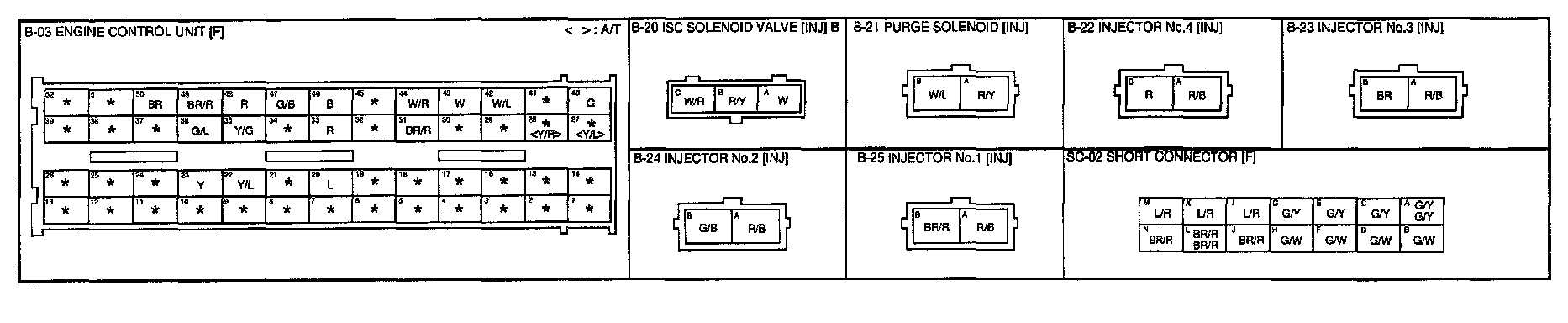

B-1b Engine Control System Connectors:

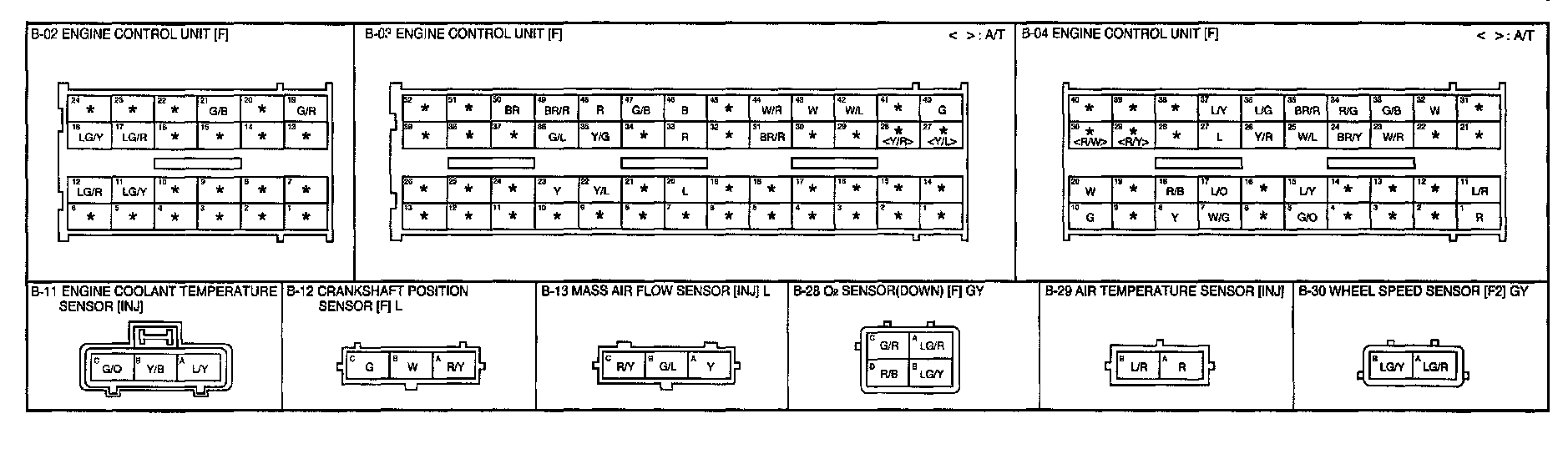

B-1c Engine Control System Connector:

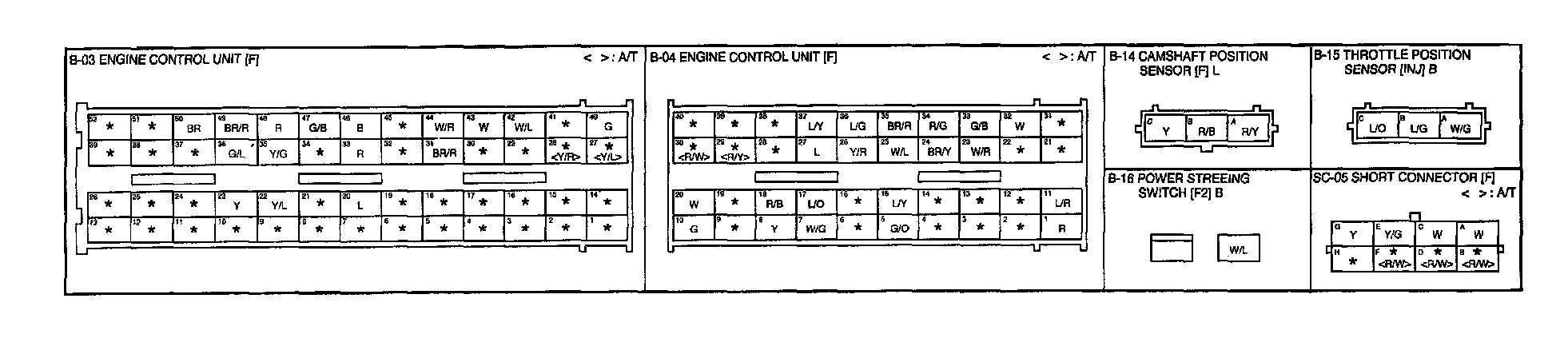

B-1d Engine Control System Connector:

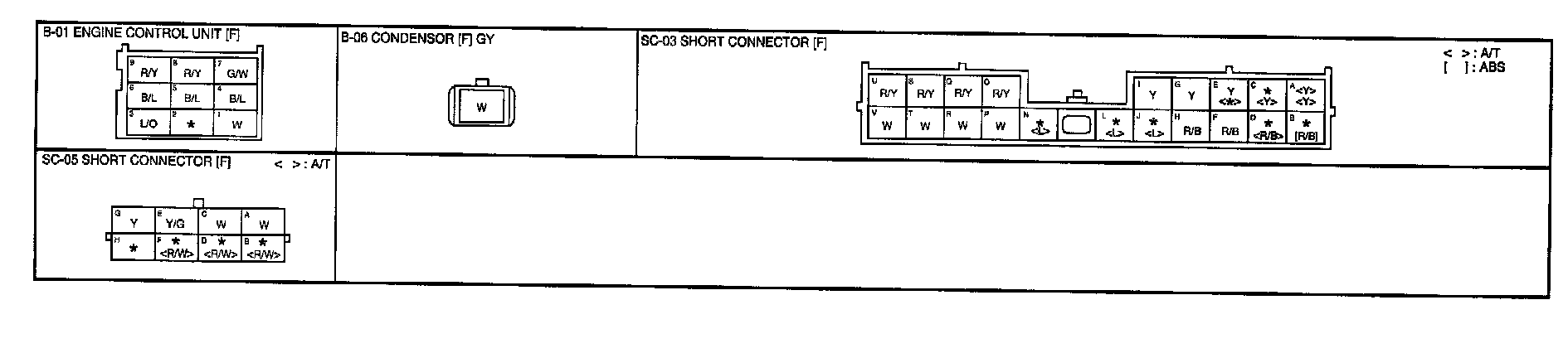

B-1e Engine Control System Connector:



B-1f Engine Control System Connector:
