Without Scan Tool

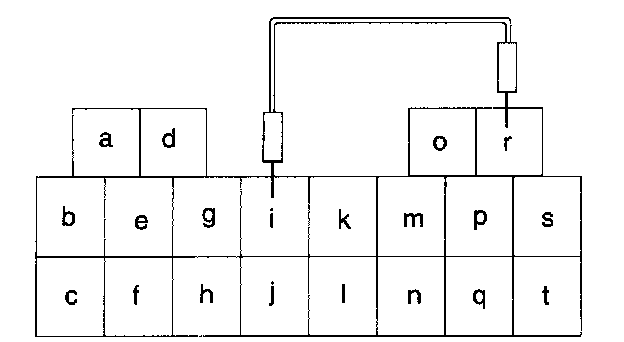

a Ground the pin "i" end "r" of data link connector in the engine compartment with the ignition switch OFF.
b Turn ignition switch ON.
c DTC's will be displayed beginning will the lowest DTC number first.





d After all stored DTC's have been displayed, the process will repeat and display the lowest DTC number first.

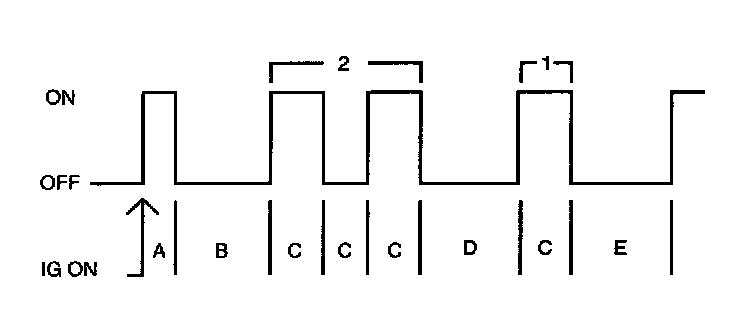

A: 0.1 Seconds





Notice: The ABS warning lamp illuminates for 0.1 second after the ignition switch is turned ON. This does not indicate an error code.

B: 4 Seconds
C: 0.5 Seconds
D: 1.5 Seconds
E: 2.5 Seconds or 4 Seconds

Notice:
^ The OFF state between DTC display cycles is 4 seconds.
^ When several DTC's are displayed, the OFF state between codes is 2.5 seconds.

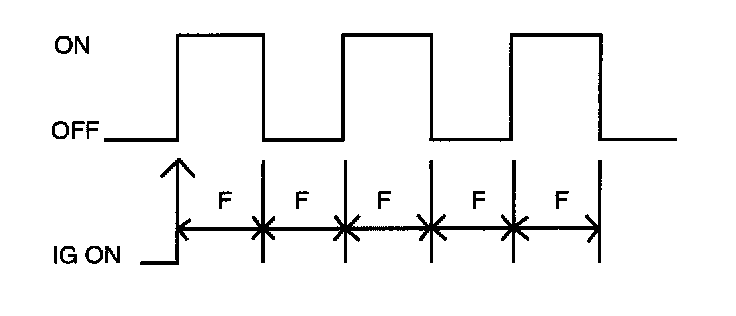

F: All Clear Code - 0.25 Seconds

^ Notice: If the system is operating nominally (no malfunction) the warning lamp will blink once every 0.25 second. This is the "All Clear" code.
