Home >> Kia >> 2002 >> Rio Cinco L4-1.5L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Testing and Inspection >> Connector Ranges

Connector Ranges

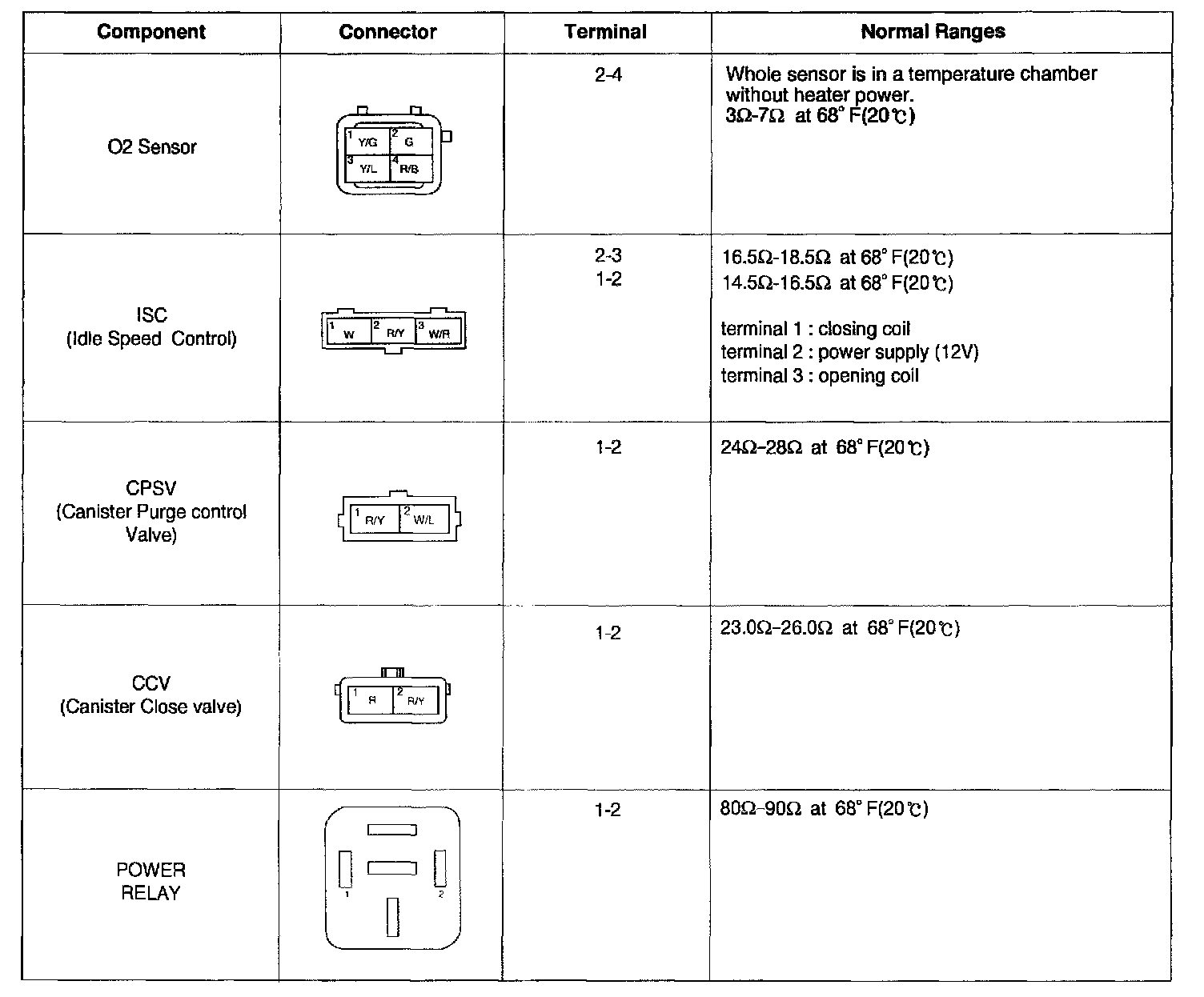

Part 1:

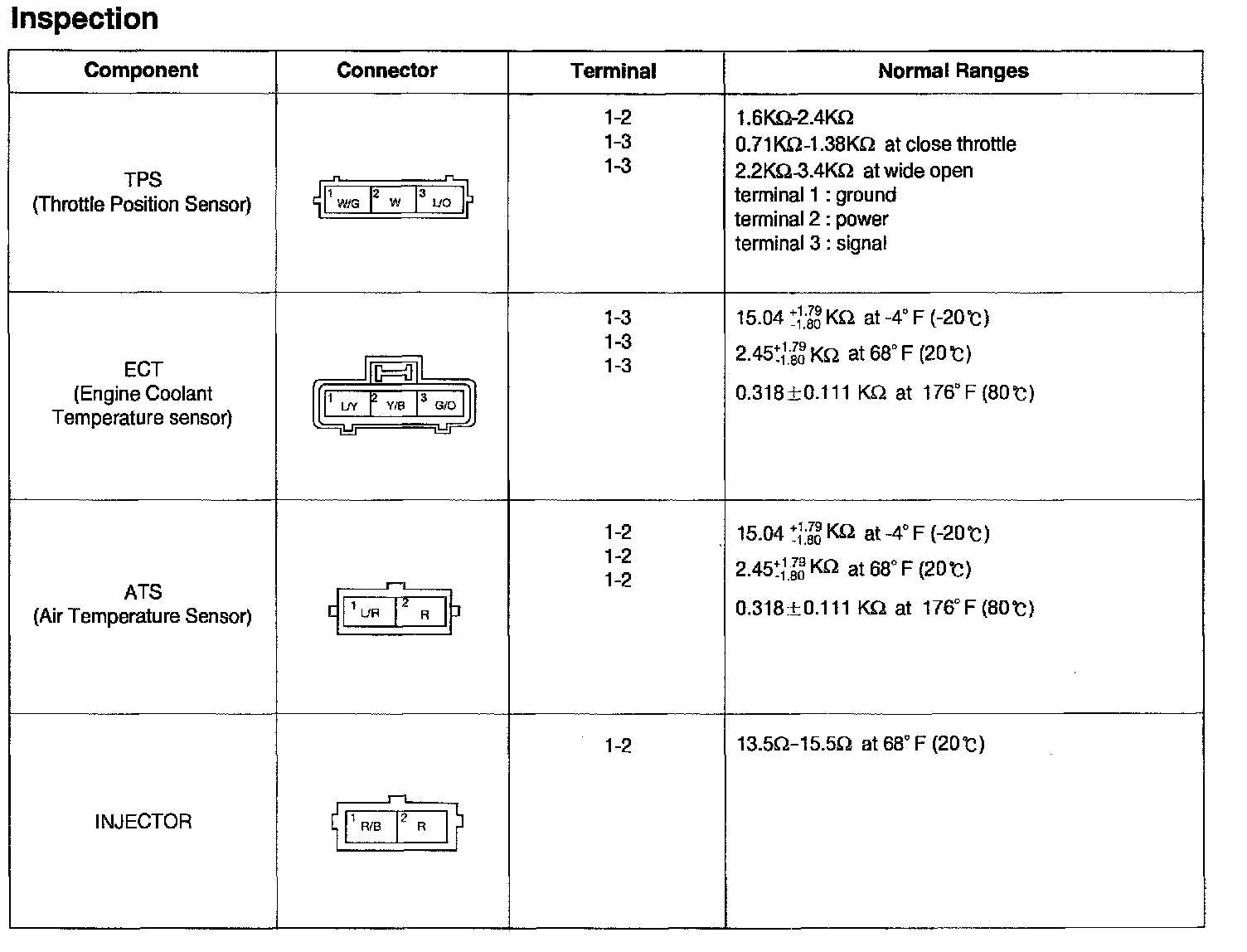

Part 2:
