Oil Pump Replacement

Removal
1. Disconnect negative battery cable.
2. Drain engine oil.
3. Remove Drive belt.
4. Remove timing belt.

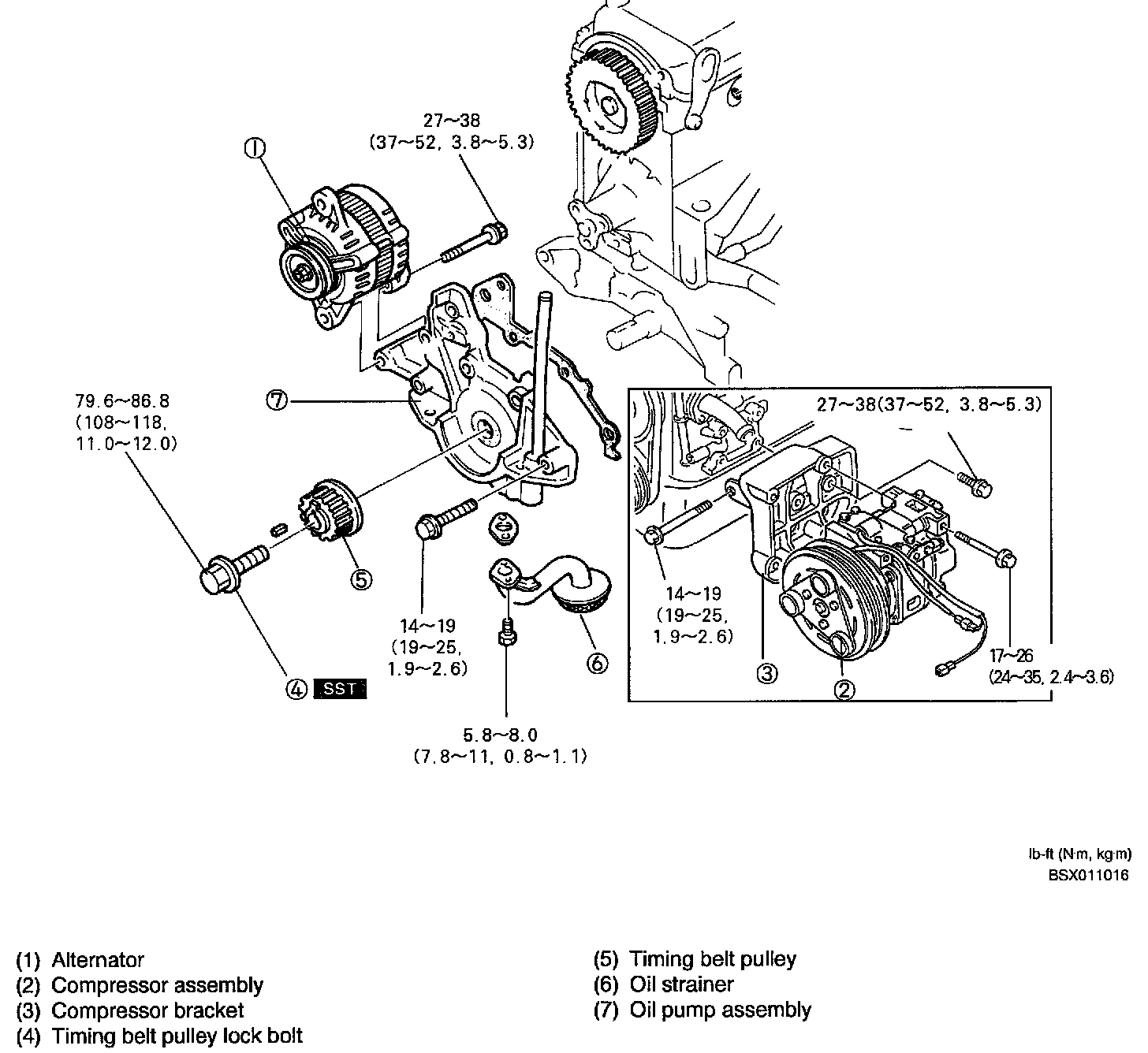

5. Remove components in the order shown.
