Removal and Installation
REMOVAL1. Remove the brake pads.

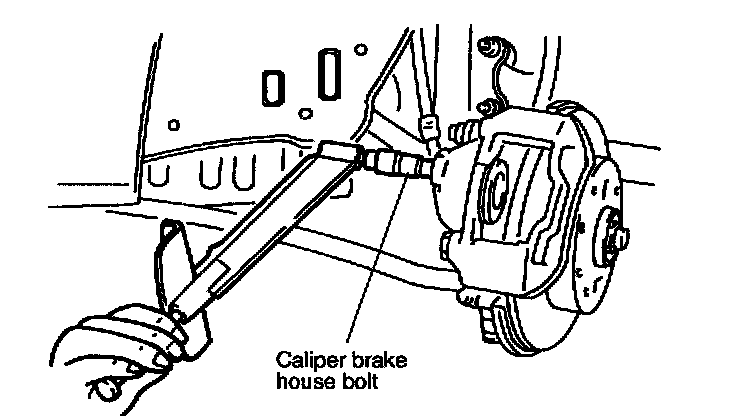

2. Remove the caliper brake hose bolt. Discard the seal washers.
3. Remove the caliper bolts and the caliper.
4. Remove the anti-squeak caps.
INSPECTION
Disc plate
1. Measure the thickness of the disc plate.
Standard 0.86 inch (22 mm)
Minimum 0.78 inch (20 mm)
2. Measure the runout at the outer edge of the contact surface of the disc pad.
Runout: 0.003 inch (0.08 mm) max.
Caution: There must be no wheel bearing looseness.
INSTALLATION
1. Install the anti-squeak caps.

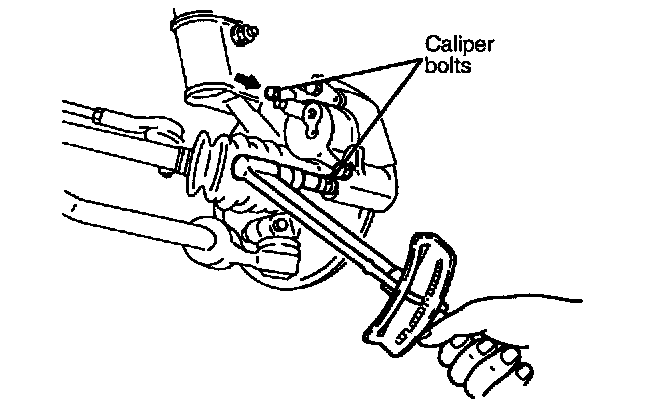

2. Position the caliper on the steering knuckle and install the caliper bolts and tighten.
Tightening torque: 39 - 49 Nm (4.0 - 5.0 kg-m, 29 - 36 ft. lbs.)
3. Connect the caliper brake hose. Be sure to use new seal washers. Tighten the caliper brake hose bolt.
Tightening torque: 22 - 29 Nm (2.2 - 3.0 kg-m, 16 - 22 ft. lbs.)
4. Install the brake pads.
5. Bleed the brakes.
