Wiper Switch
>>
Testing and Inspection
Wiper Switch: Testing and Inspection

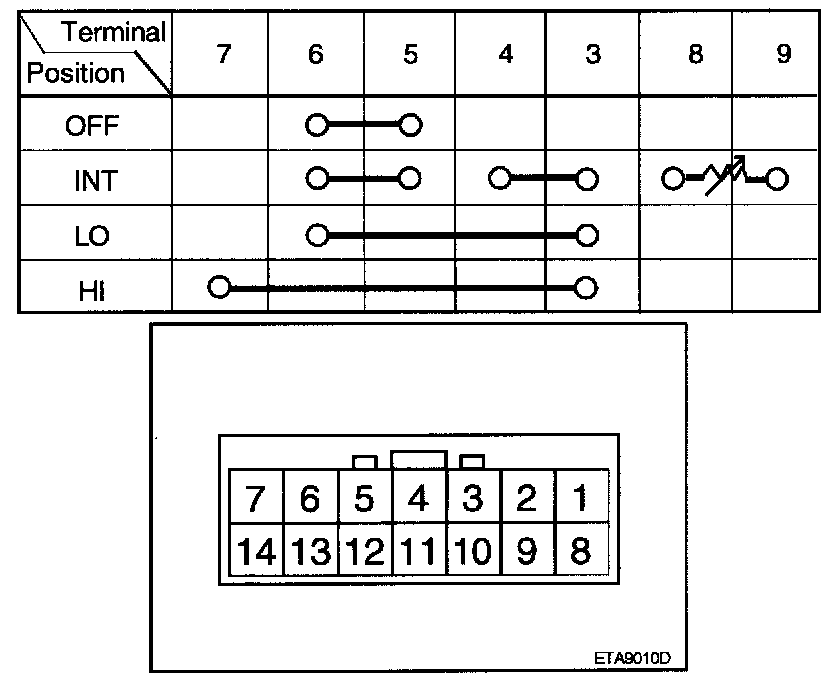

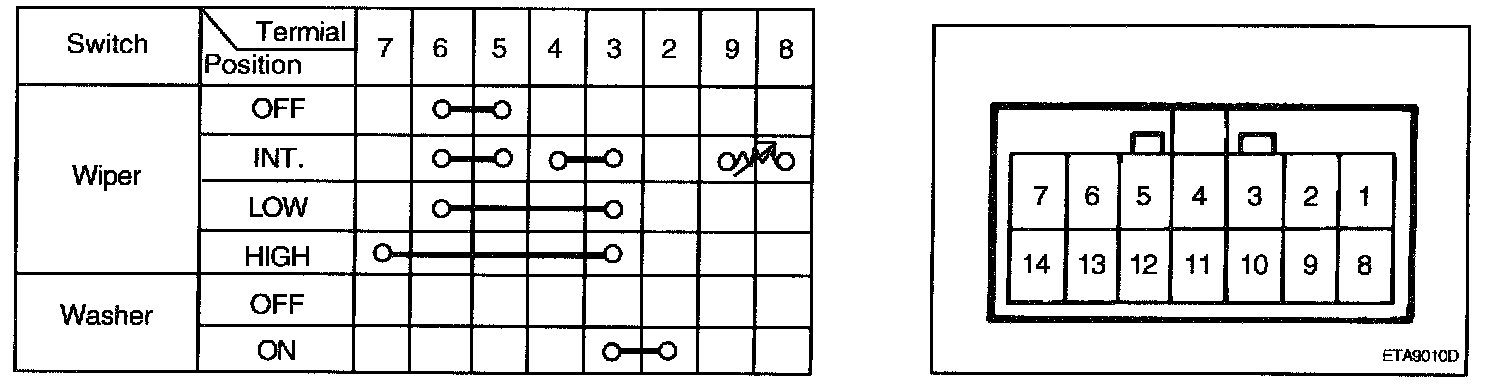

Wiper and intermittent volume switch
Wiper And Intermittent Volume:
Check the switch for continuity between the terminals.
