Sports Mode Switch Inspection (F4A42-2 & 2.7D)
Sports Mode Switch Inspection (F4A42-2 & 2.7D)
SPORTS MODE SWITCH INSPECTION (F4A42-2 & 2.7D)

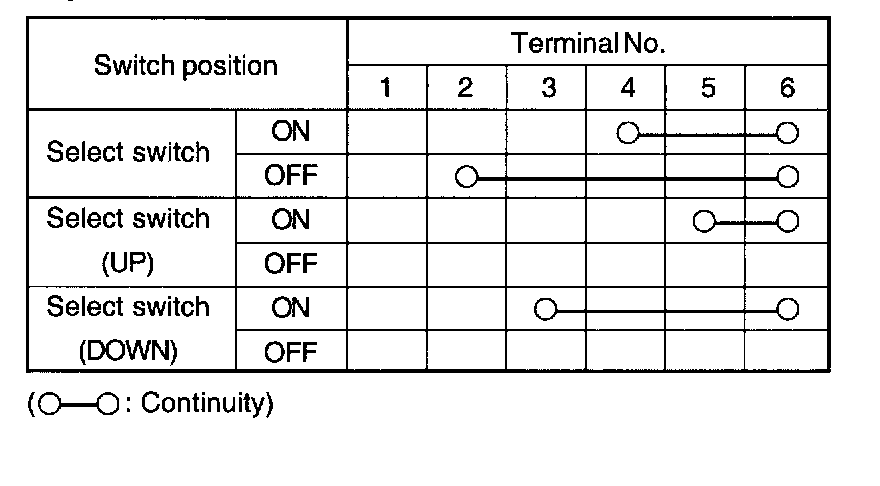

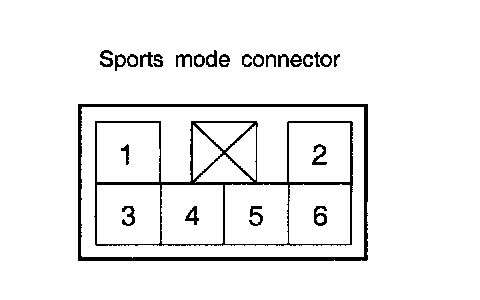

Inspection
