Checking Steering Angle

Checking Steering Angle

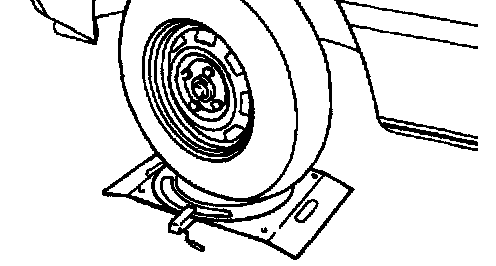

1. Place the front wheel on a turning radius gauge and measure the steering angle.
Wheel angle [Standard value]
Inside Wheel 40.63° ±2°
Outside Wheel 32.37°
2. If the measured value is not within the standard value. Adjust the linkage.
