Combination Switch: Testing and Inspection

Turn Signal And Lane Change Switch:

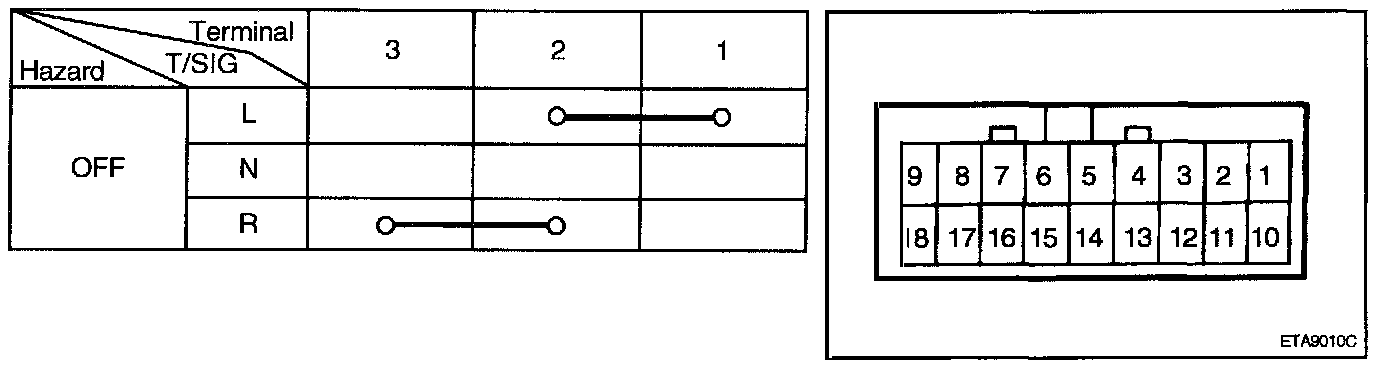

Check the continuity between the terminals while operating the switch.
