Home >> Kia >> 2002 >> Optima L4-2.4L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Starting and Charging >> Starter Relay >> Testing and Inspection

Starter Relay: Testing and Inspection







CHECK STARTER RELAY

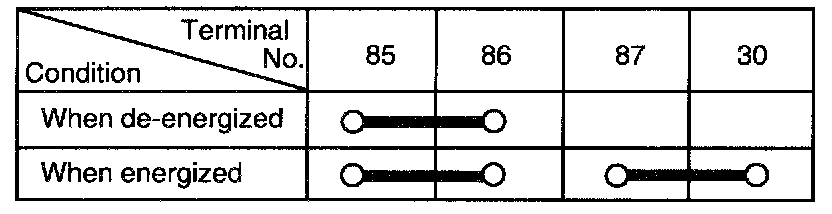

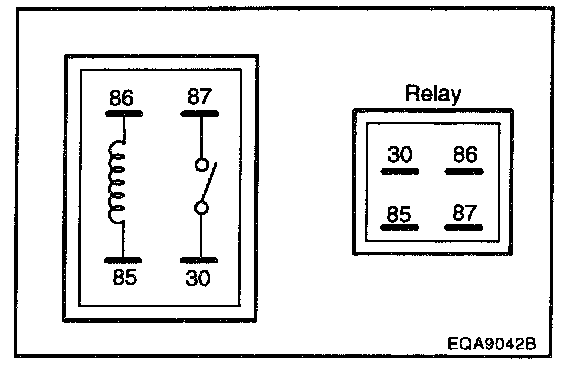

Remove the starter relay and check continuity between the terminals. If the continuity is not as specified, replace the relay.
