Rear

REAR WHEEL ALIGNMENT INSPECTION TOE-IN
Standard value 2 ±2 mm

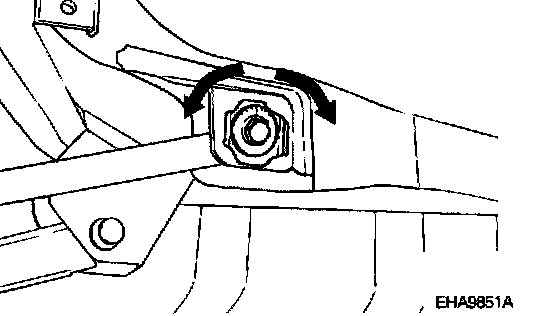

NOTE: The assist arm mounting bolt (crossmember side) should be turned an equal amount on both sides when adjusting.

Inside direction of the vehicle toe-in
Outside direction of the vehicle toe-out
The scale has gradations of approximately 2.4 mm (14').

CAMBER
Standard value -30' ±30' (For general suspension)
38' ±30' (For high suspension)

NOTE:
1) The rear suspension assembly must be free of worn, loose or damaged parts prior to measuring rear wheel alignment.
2) Camber is pre-set at the factory and cannot be adjusted.
3) If camber is not within the specifications, replace bent or damaged parts.
