Home >> Kia >> 2002 >> Optima L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom >> Problem Symptom Charts

Problem Symptom Charts

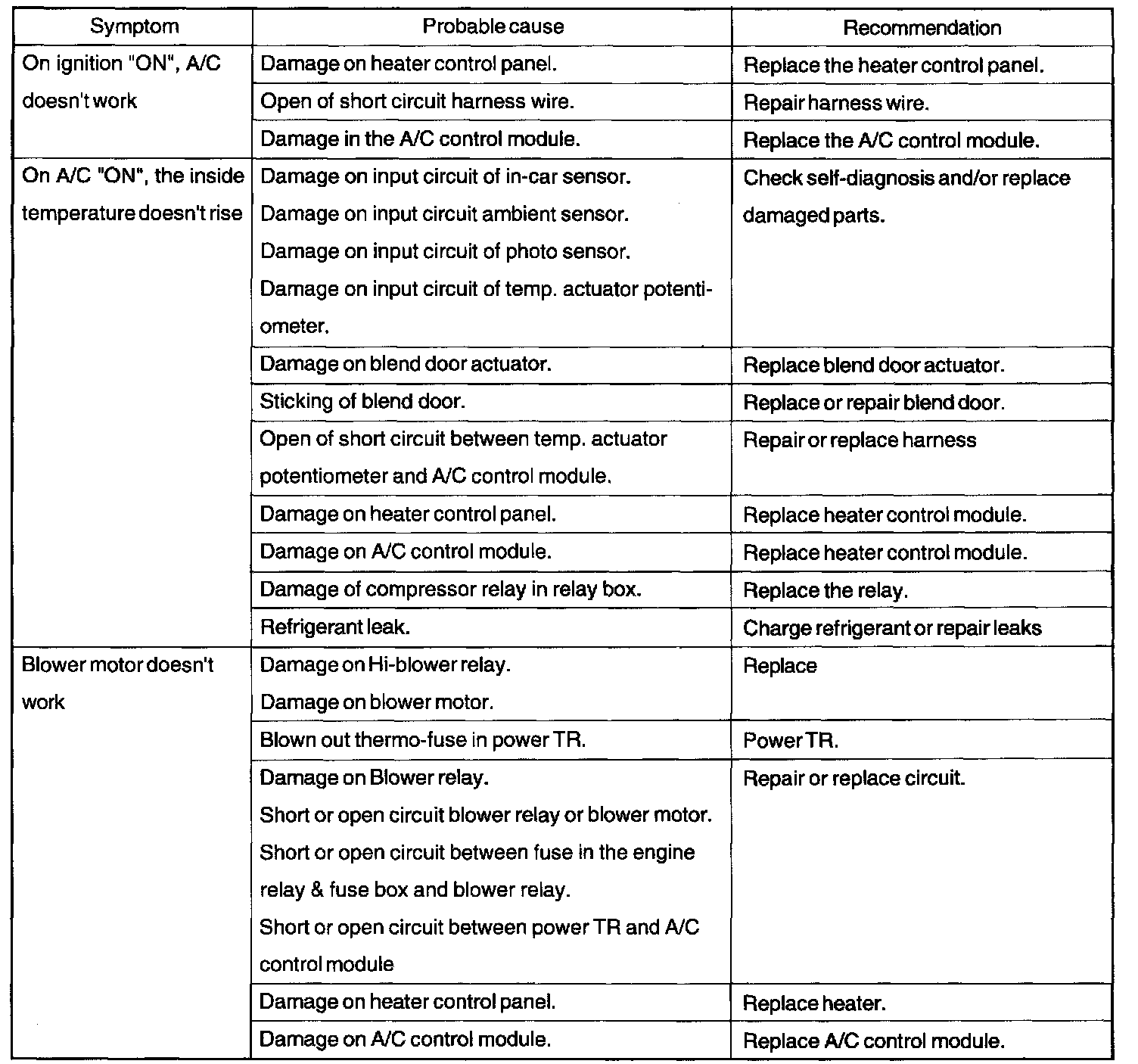

Symptom And Probable Cause, Part 1:

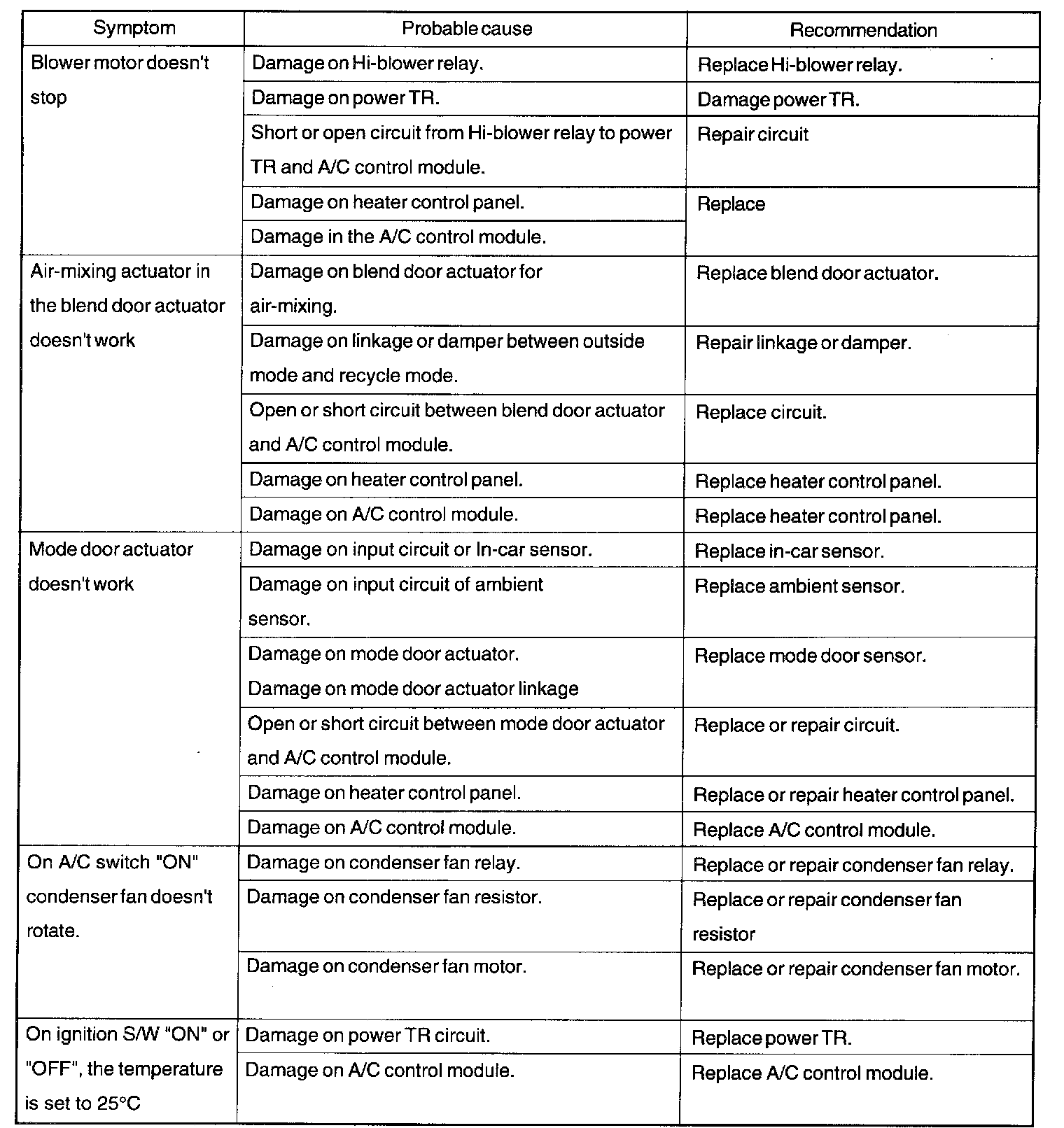

Symptom And Possible Causes, Part 2:
