Engine Oil: Service and Repair
CHANGING ENGINE OIL1. Run the engine until it reaches normal operating temperature.
2. Stop the engine.

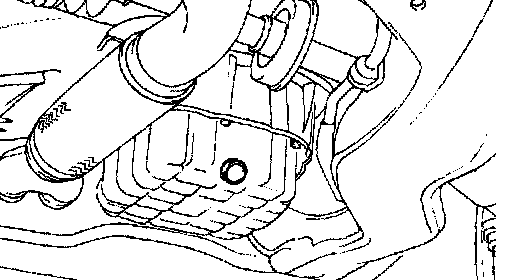

3. Remove the oil filler cap (on rocker cover) and the drain plug (on the oil pan). Drain the engine oil.
4. Re-install and tighten the drain plug to the specified torque.
Tightening torque Drain plug 35 - 45 Nm (350 - 450 kg.cm, 25 - 33 ft. lbs.)
5. Fill the crankcase with new engine oil through the oil filler cap opening.
Capacity: Drain and refill
Without oil filter 4.0 lit (4.23 U.S. qts., 3.51 Imp. qts.)
With oil filter 4.3 lit (4.5 U.S. qts., 3.8 Imp. qts.)
CAUTION: Do not overfill the crankcase. This will cause oil aeration and loss of oil pressure.
6. Install the oil filler cap.
7. Start and run the engine.
8. Stop the engine and then check the oil level. Add oil if necessary.
