Temperature Gauge: Testing and Inspection

TEMPERATURE

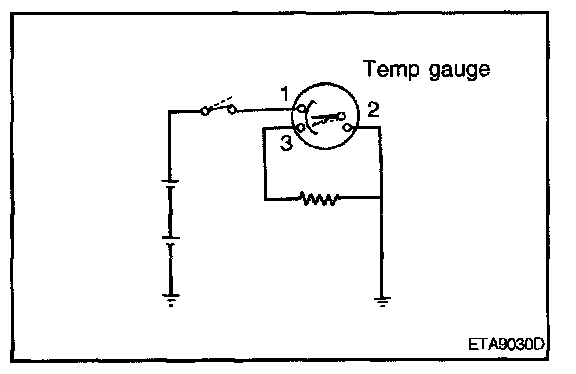

1. Connect the positive (+) lead from battery to terminal 1 and negative (-) lead to terminal 2.
2. Connect the variable resistance to terminal 3 and terminal 2.

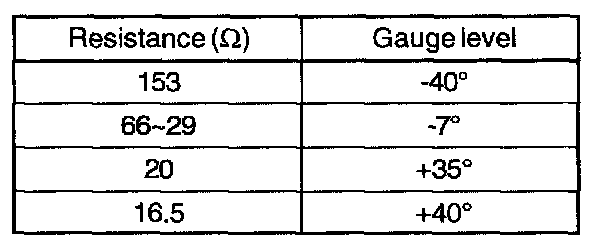

3. Varies the variable resistance.




4. Check that the temperature gauge pointer moves. If the operation is not as specified, replace the gauge.
