G-2 - Blower and Air Conditioner System (Automatic)

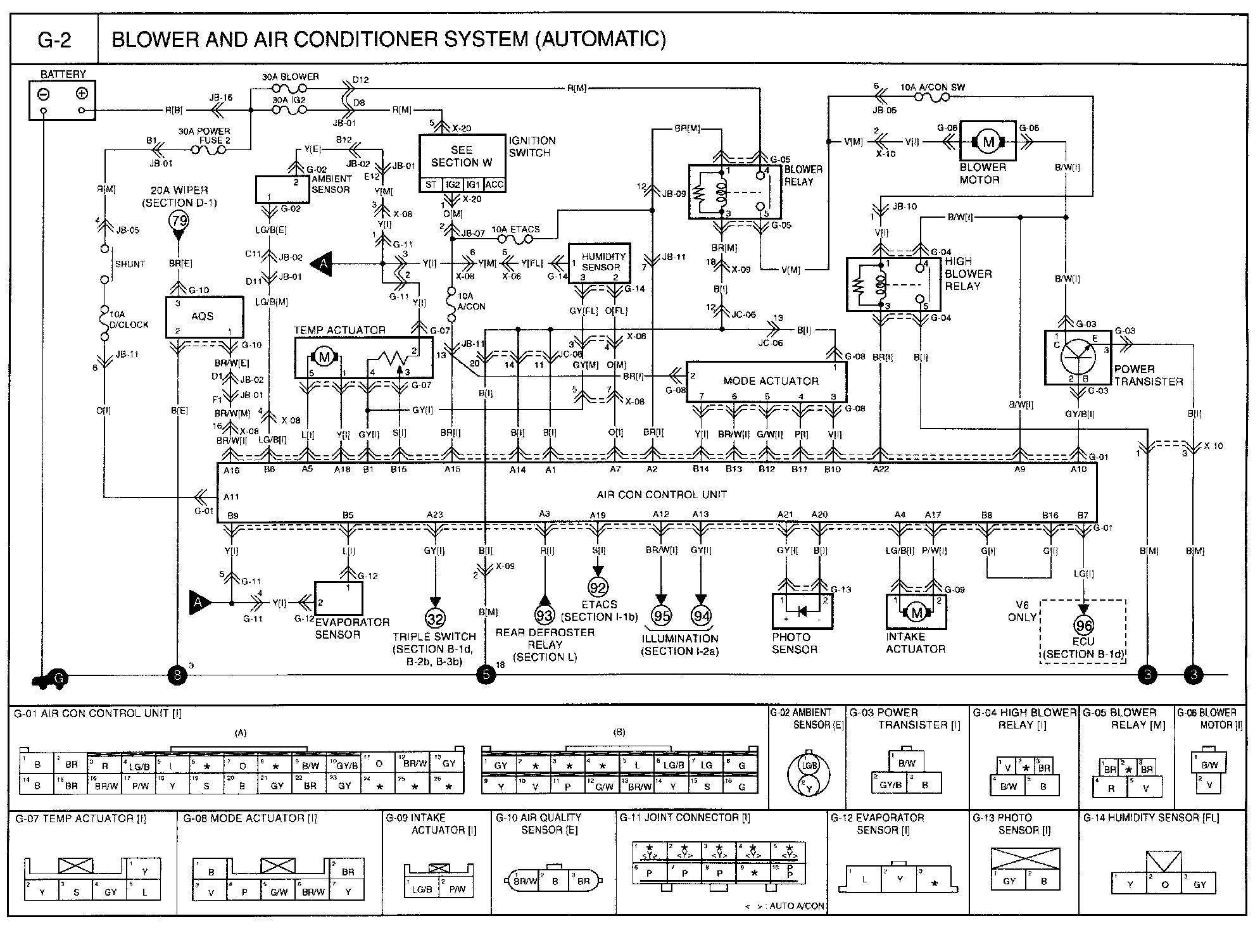

G-2 - Blower And Air Conditioner System (Automatic) Circuit:

NOTE: Other diagrams referred to by section number but not shown here can be found at Diagrams by Diagram Section Number. Electrical Diagrams
