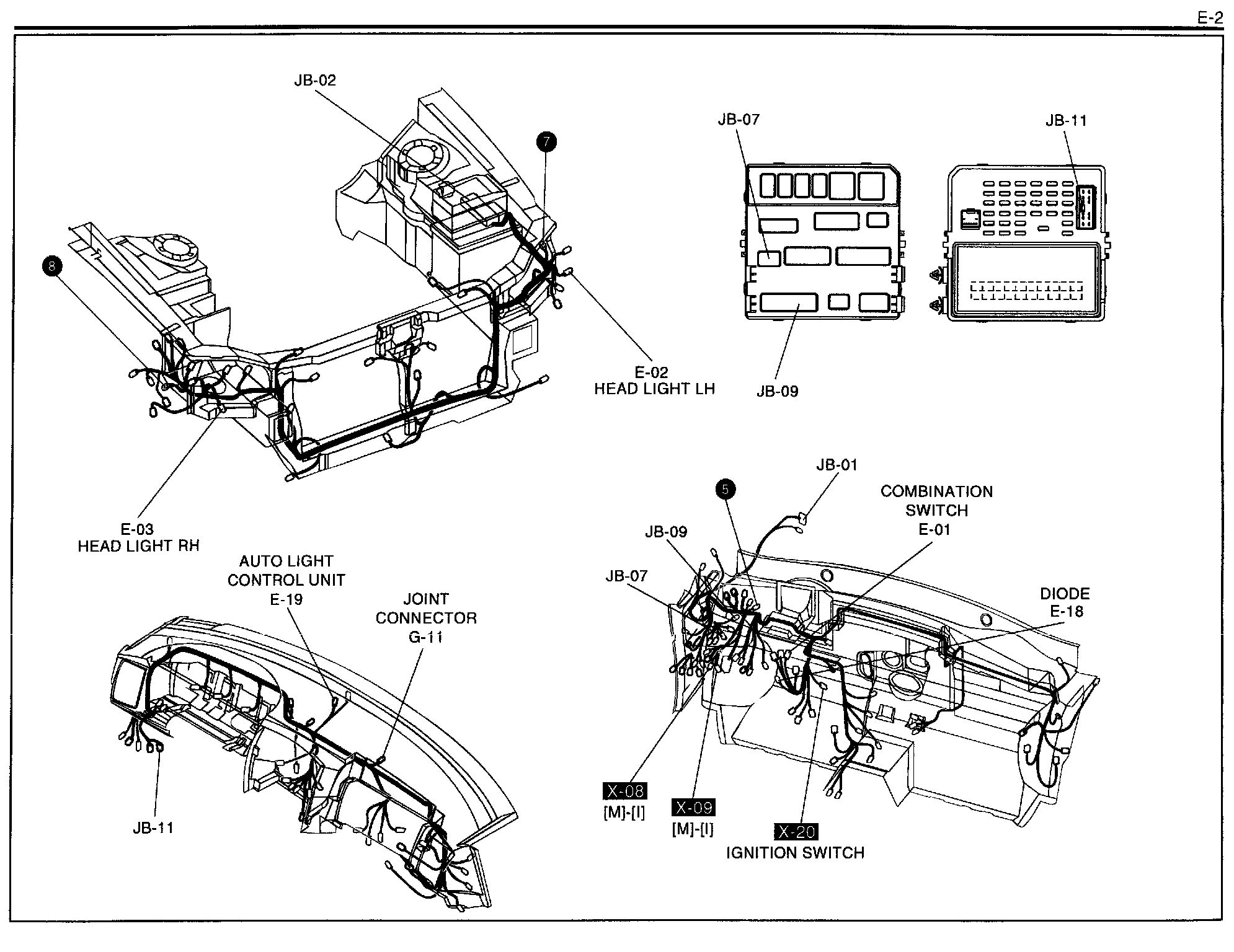

E-2 - Head Light (Auto Light)
E-2 - Head Light (Auto Light)
E-2 Head Light (Auto Light) (USA) Harness/Connector Symbols:
