Brake Switch (Cruise Control): Testing and Inspection

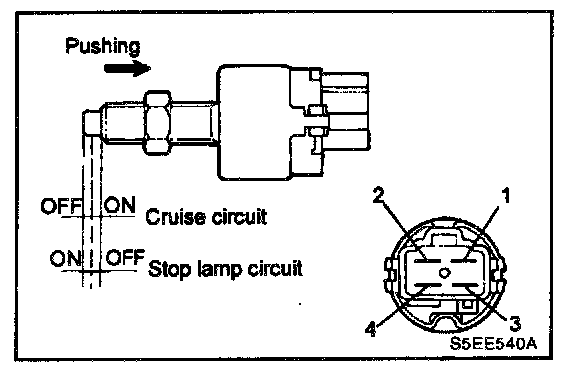

STOP LAMP SWITCH

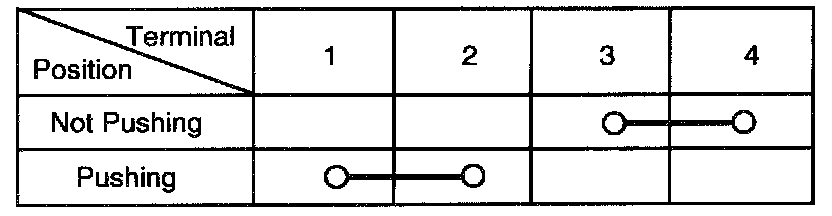

After operating the stop lamp switch, check for continuity between the terminals.

INSPECTION

CONDITION
- Turn A/C and all lights OFF. Inspect and adjust at no load.
- Warm engine until stabilized at idle. Confirm idle speed is at specified RPM.
- Then, ignition switch OFF.

1. Confirm there are no sharp bends in cables.
2. Depress the accelerator pedal and check if the throttle lever moves smoothly from fully closed to fully open.
3. Check inner cables for correct slack.
4. If there is too much slack or no slack, adjust play by the following procedures.

SERVICE HINT
1. If the cable is very loose, the loss of speed going uphill will be large.
2. If the cable is too tight, the idle RPM will become high.
