Flow of Diagnosis

TROUBLESHOOTING

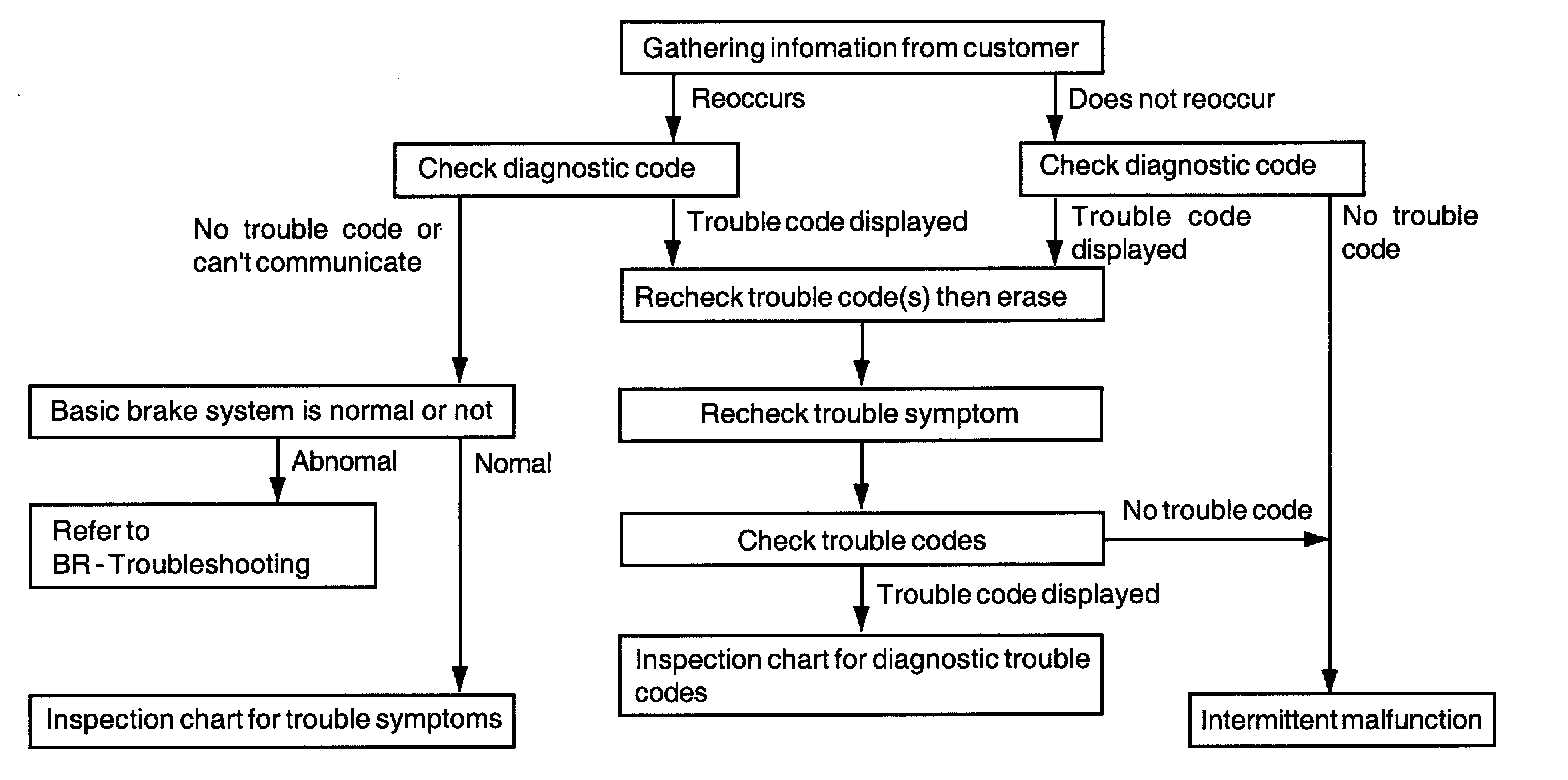

Standard Flow Of Diagnostic Troubleshooting

- Using the customer problem analysis heck sheet for reference, ask the customer in as much detail as possible about the problem.

NOTES WITH REGARD TO DIAGNOSIS

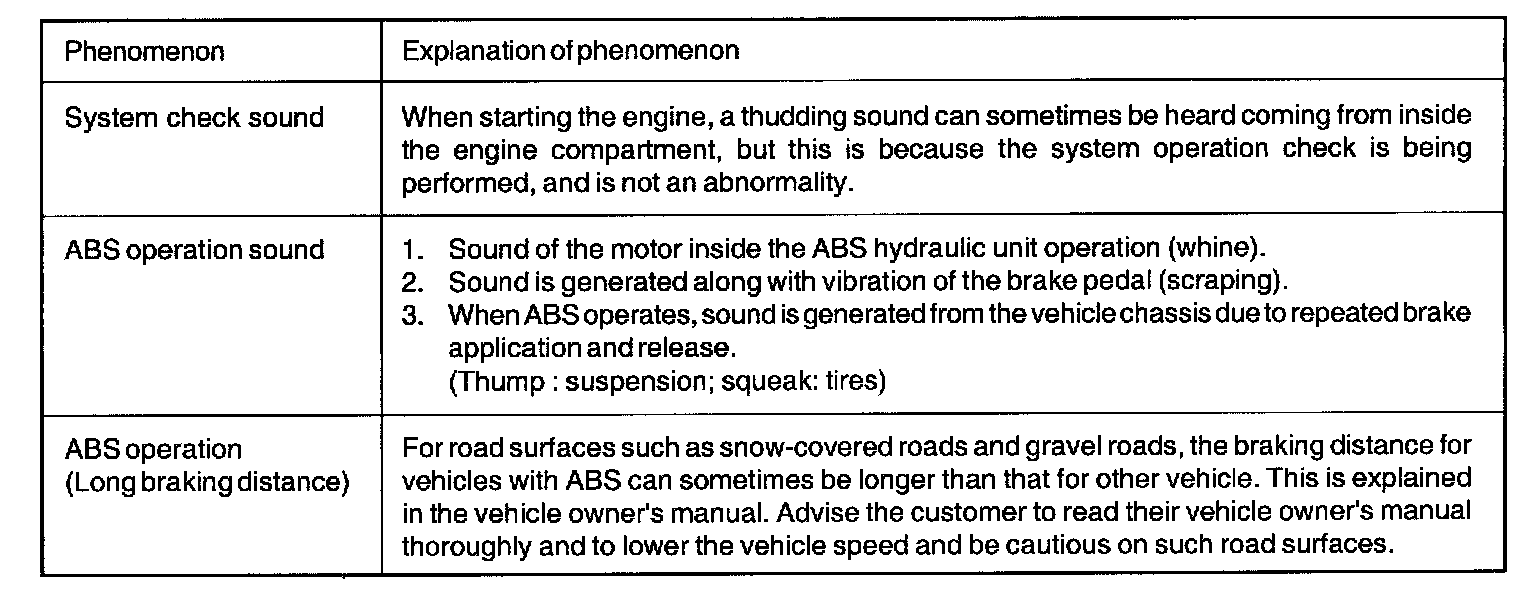

The phenomena listed in the table are not abnormal.

Diagnosis detection condition can vary depending on the diagnosis code. Make sure that checking requirements listed in the "Comment" are satisfied when checking the trouble symptom again after the diagnosis code has been erased.

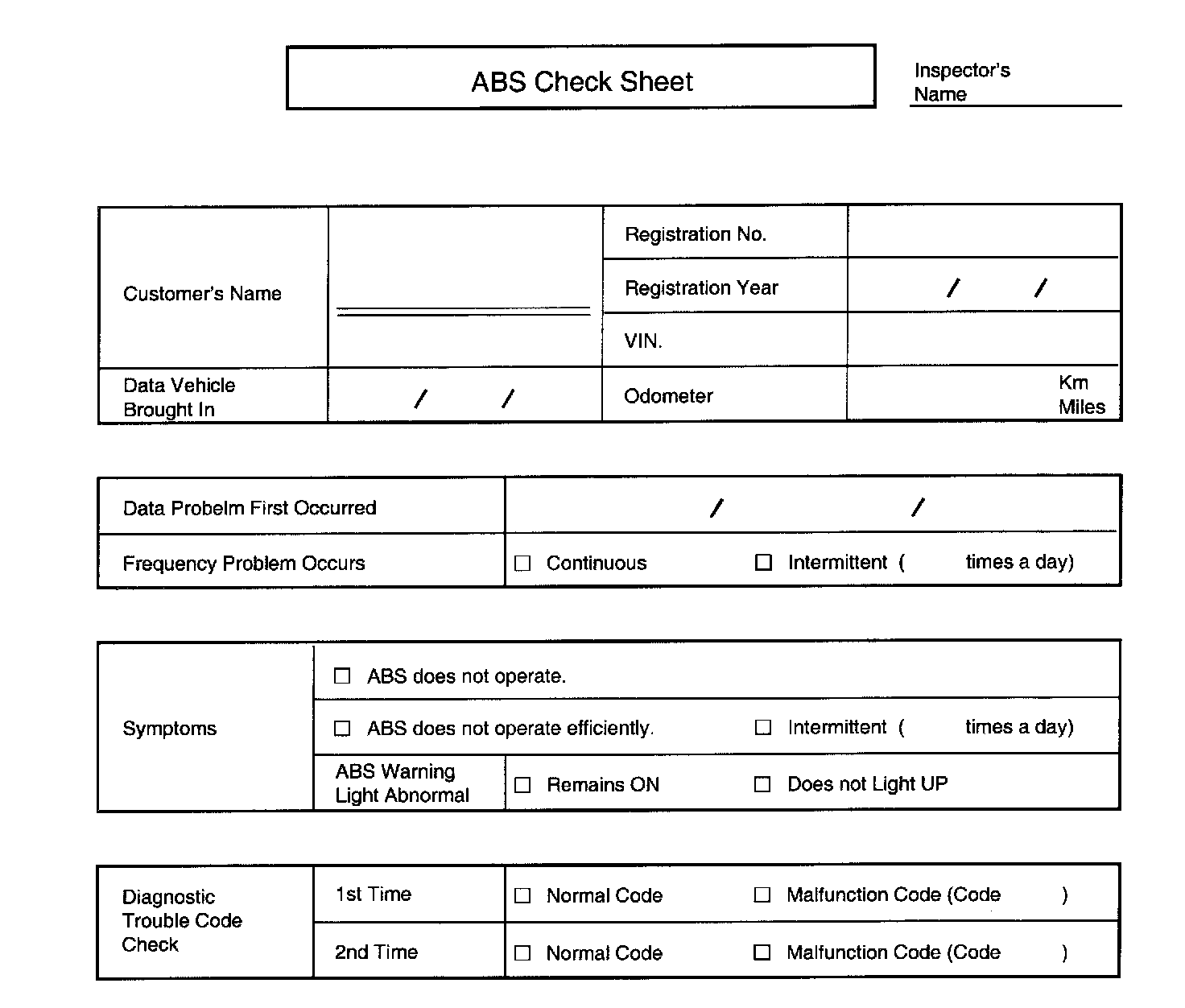

ABS Check Sheet

HI-SCAN CHECK





1. Turn the ignition OFF.
2. Connect the hi-scan to the data link connector located underneath low crash pad panel.
3. Turn the ignition ON.
4. Use the hi-scan to check the self-diagnosis codes.
5. After completion of the repair or correction of the problems, turn the ignition switch; then erase the stored faults codes using the clear key.
6. Disconnect the hi-scan.

CONNECTOR CHECK





1. Remove the battery negative (-) terminal.
2. Disconnect the connectors and check terminals follow the troubleshooting procedure.

NOTE: When you check terminals, be sure to use enough small pin which is not damaged to the connector terminals.
