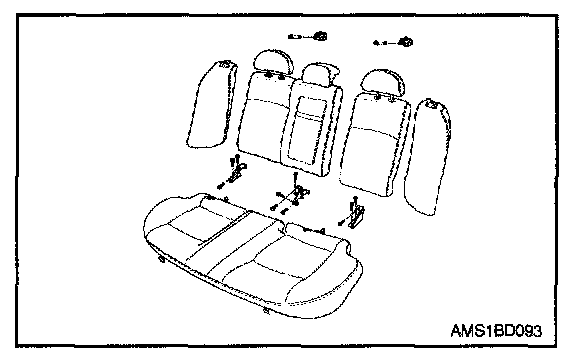

Rear Seats

REMOVAL




1. Remove two mounting bolts from rear side of cushion.

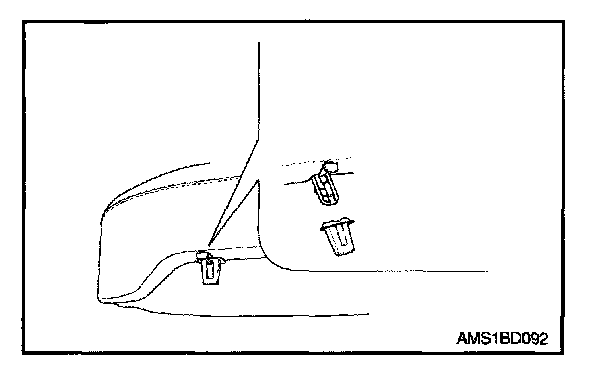

2. Push lock buttons as shown in figure to release cushion, and then pull seat cushion out.




3. Remove two mounting bolts from left side of seat hinge bracket.
4. Repeat right side.
5. Push lock button and fold seatback.
6. Remove four seatback mounting bolts from left ,right and center of hinge.
7. Remove one mounting bolts from left side bolster.
8. Remove one mounting bolts from right side bolster.
9. Remove left and right side bolster.
10. Remove left seatback.
11. Repeat for right side.

INSTALLATION
Reverse removal procedures.

Tighten seat mounting bolts to 12 - 19 lb-ft (17 - 26 N.m, 1.7 - 2. 6 kg-m)
