Rear Door Panel: Service and Repair

REAR DOOR TRIM

REMOVAL




1. Disconnect negative battery cable.
2. Remove inside door garnish.

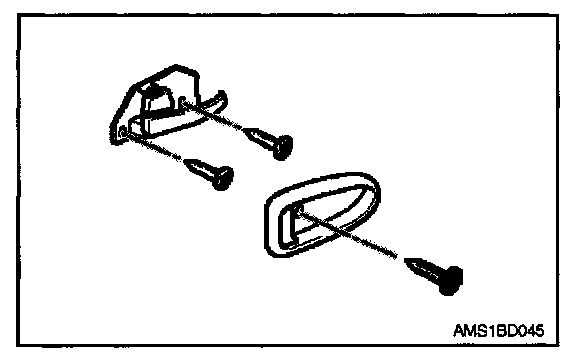

3. Remove inside handle cover.
1. Remove screw cover and one screw.
2. Unfasten inside handle cover.

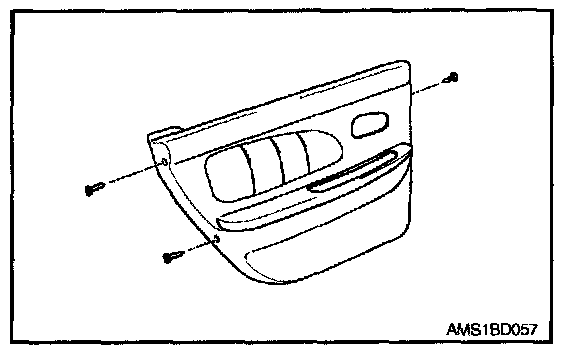

4. Remove door trim.




1. Remove one screw on pull handle.




2. Remove screw cover and two screws on left side of door trim.
3. Remove one screw on right side of door trim.
4. Unfasten door trim.
5. Disconnect power window switch connector.

INSTALLATION
1. Install door trim.
1. Connect electrical connector.
2. Place door trim.
3. Install two screws and cover on left side of door trim.
4. Install one screw on right side of door trim.
5. Install one screw on pull handle.




2. Install inside handle cover.
1. Fasten inside handle cover.
2. Install one screw and cover.

3. Install inside door garnish.
4. Connect negative battery cable.
