Shift Lock Actuator

Shift-lock actuator

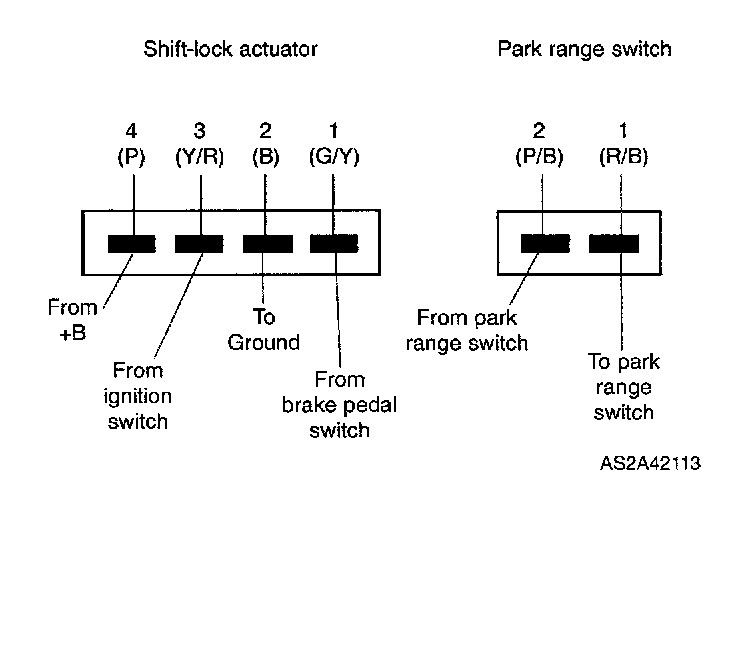

Terminal voltage continuity inspection
1. Remove console.

Notice: Disconnect shift-lock actuator connector when checking continuity between terminal 2 (harness side) and ground.

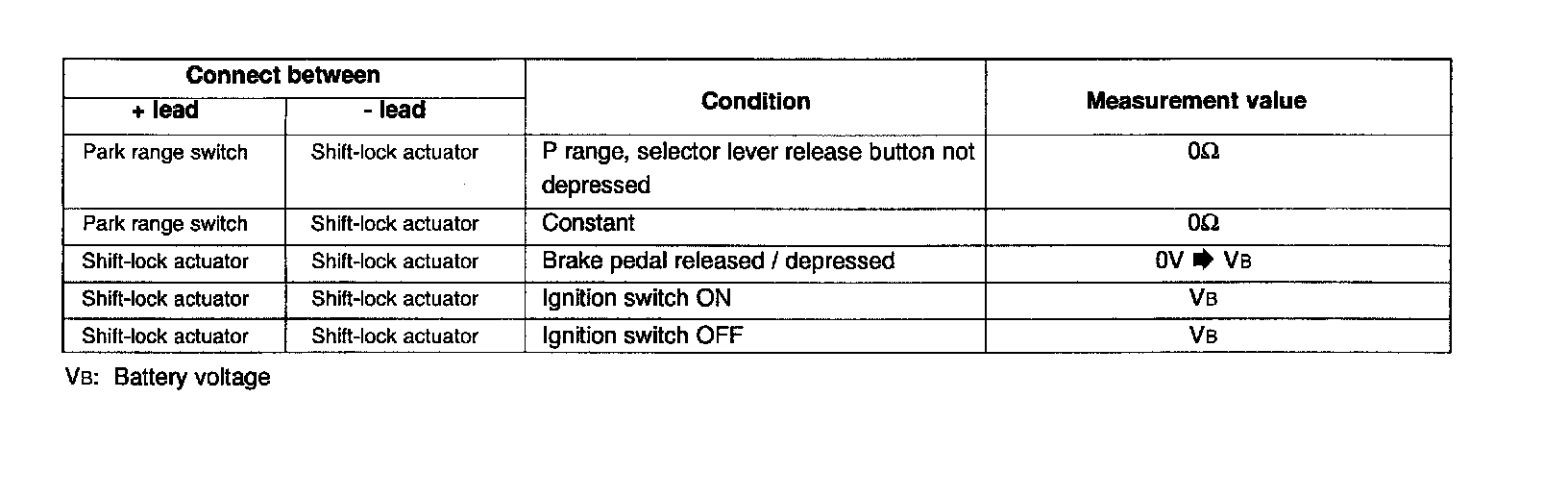

2. Shift selector lever to P range, and check terminal voltages and continuity, referring to chart below.





3. If not as specified, repair wire harness and/or replace shift-lock actuator.
4. Install console.





5. Verify correct operation of shift-lock system.
