Seals and Gaskets: Service and Repair

Oil seal
Removal and replacement
1. Remove driveshaft.
2. Remove oil seal with a screwdriver.

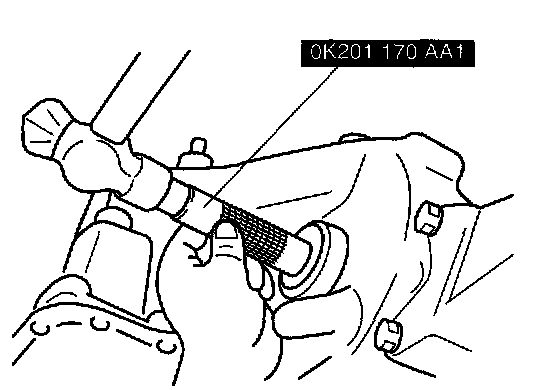

3. Tap new oil seal into transaxle case with SST (OK201 170 AA1) or equivalent.

Notice:
a) Tap in until SST (OK201 170 AA 1) or equivalent contacts case.
b) Coat oil seal lip with ATE
