Instrument Cluster Trim

Removal
1. Disconnect negative battery cable.
2. Remove ashtray.
3. Remove center panel trim.

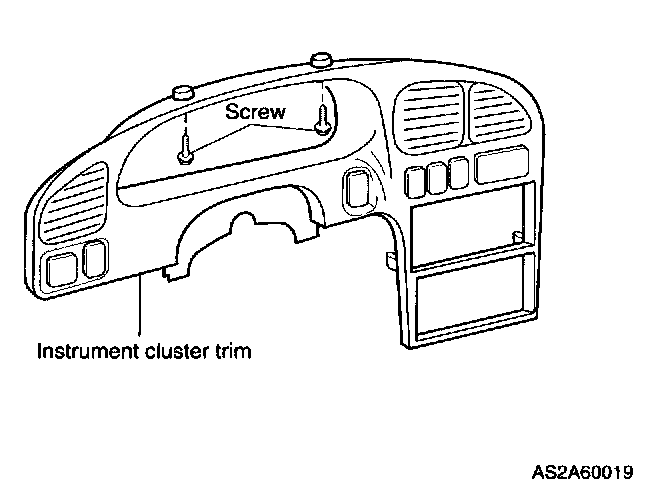

4. Remove two instrument cluster mounting screws.
5. Disconnect six connectors.
6. Remove trim.

Installation
1. Connect six switch connectors.
2. Place instrument cluster trim into place in front of instrument cluster.
3. Install four screws.
