Home >> Kia >> 2001 >> Spectra GSX L4-1.8L >> Repair and Diagnosis >> Diagrams >> Harness >> E-3 - Back-Up Lts,License Lts,Tail Lts,Stop Lts,High Stop Lts

E-3 - Back-Up Lts,License Lts,Tail Lts,Stop Lts,High Stop Lts

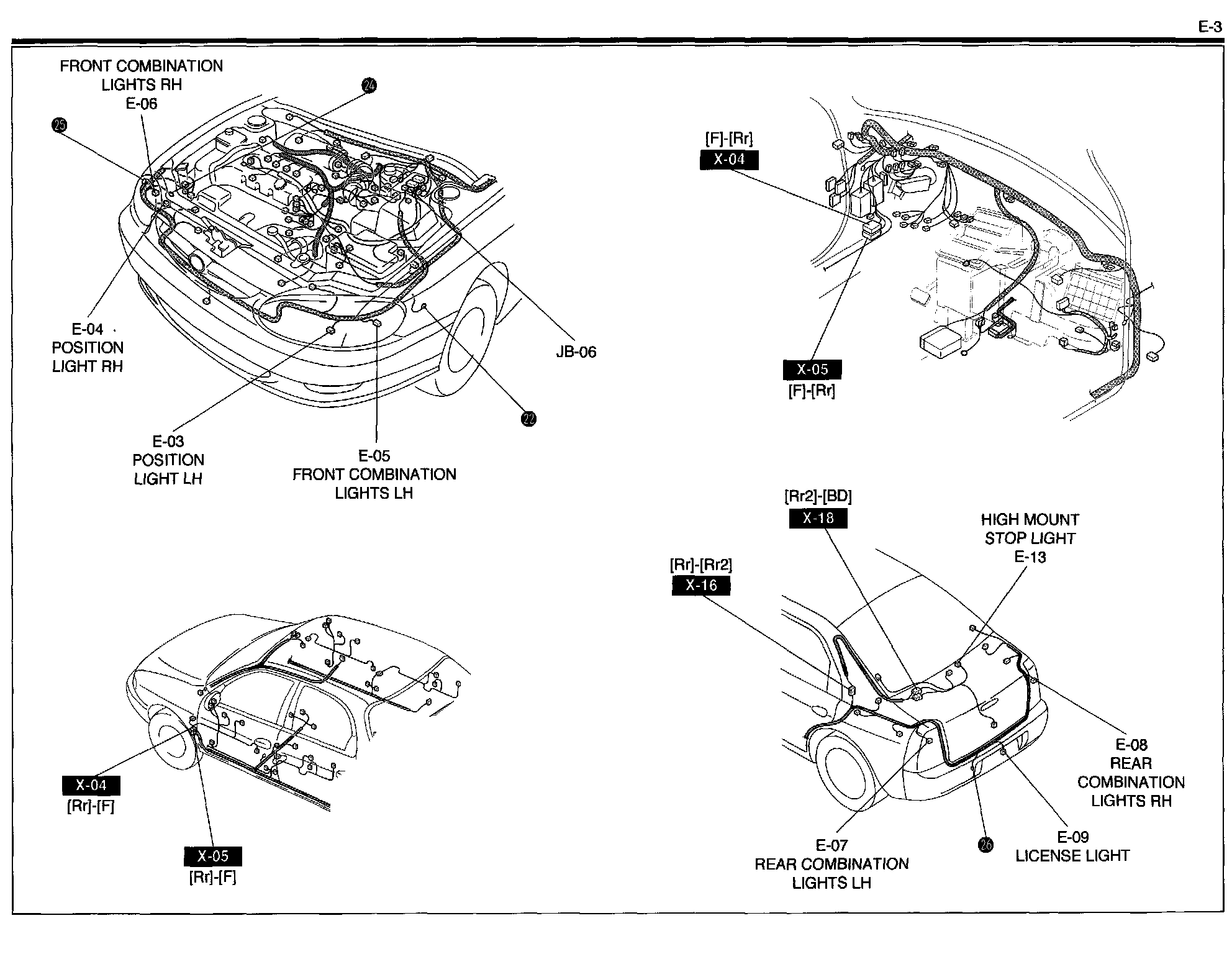

E-3 - Back-up Lights, License Lights, Tail Lights, Stop Lights, Position Lights, High Mount Stop Light Harness/Connector Symbols:
