Interior Lighting Module

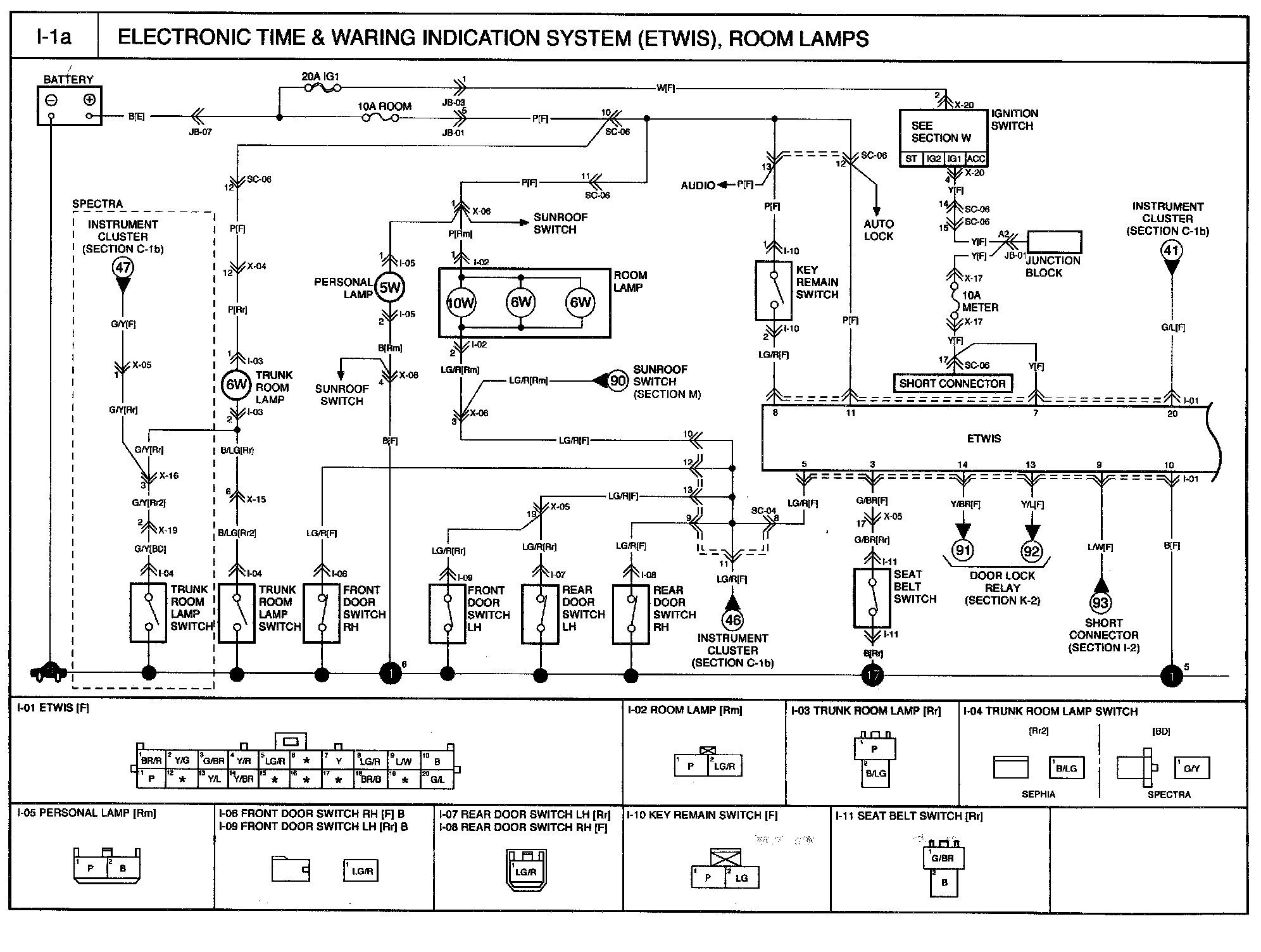

I-1a - Electronic Time & Warning Indication System (ETWS), Room Lamps Circuit:

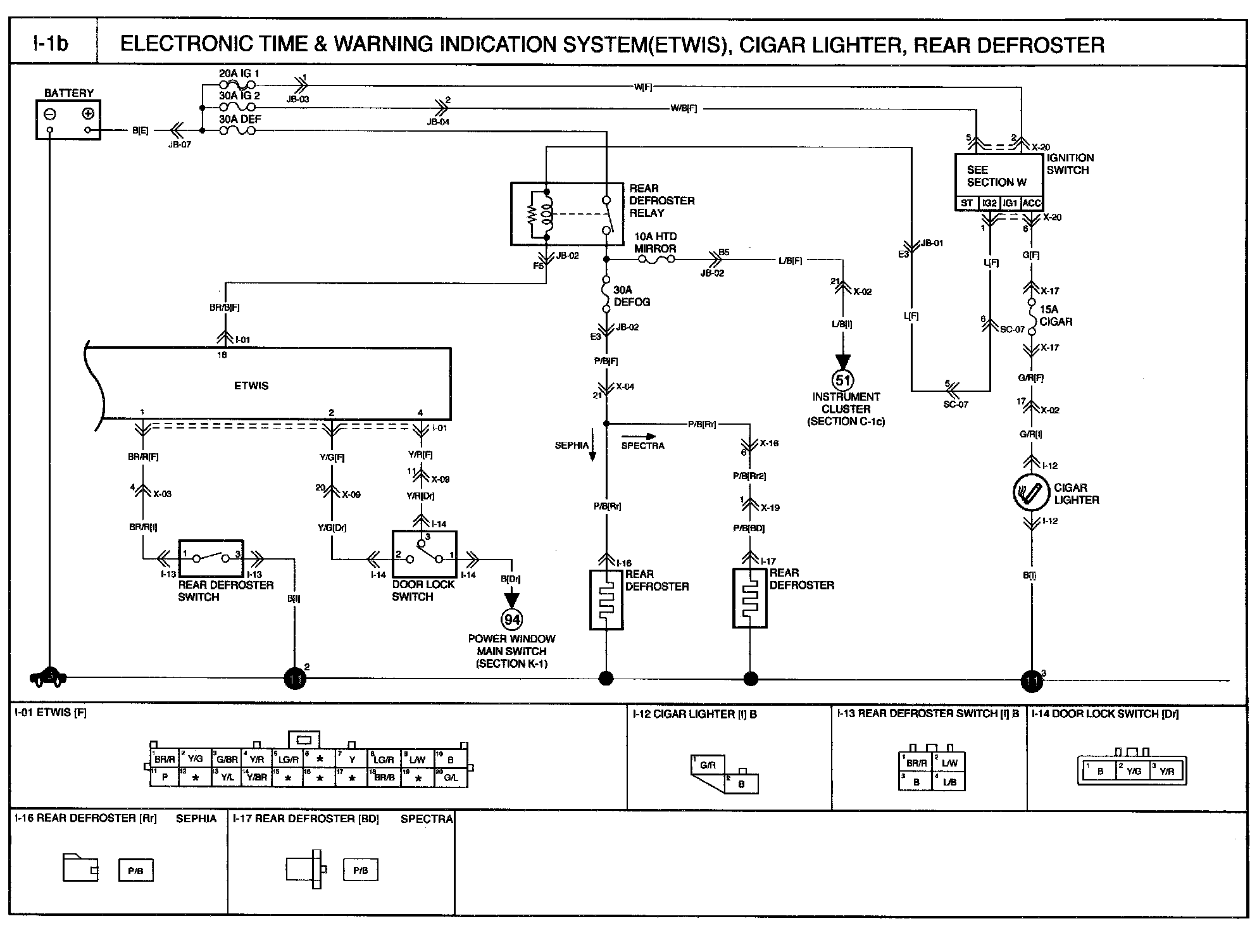

I-1b - Electronic Time & Warning Indication System (ETWS), Cigar Lighter, Rear Defroster Circuit:
