Home >> Kia >> 2001 >> Spectra GSX L4-1.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System >> Radiator Cooling Fan Motor

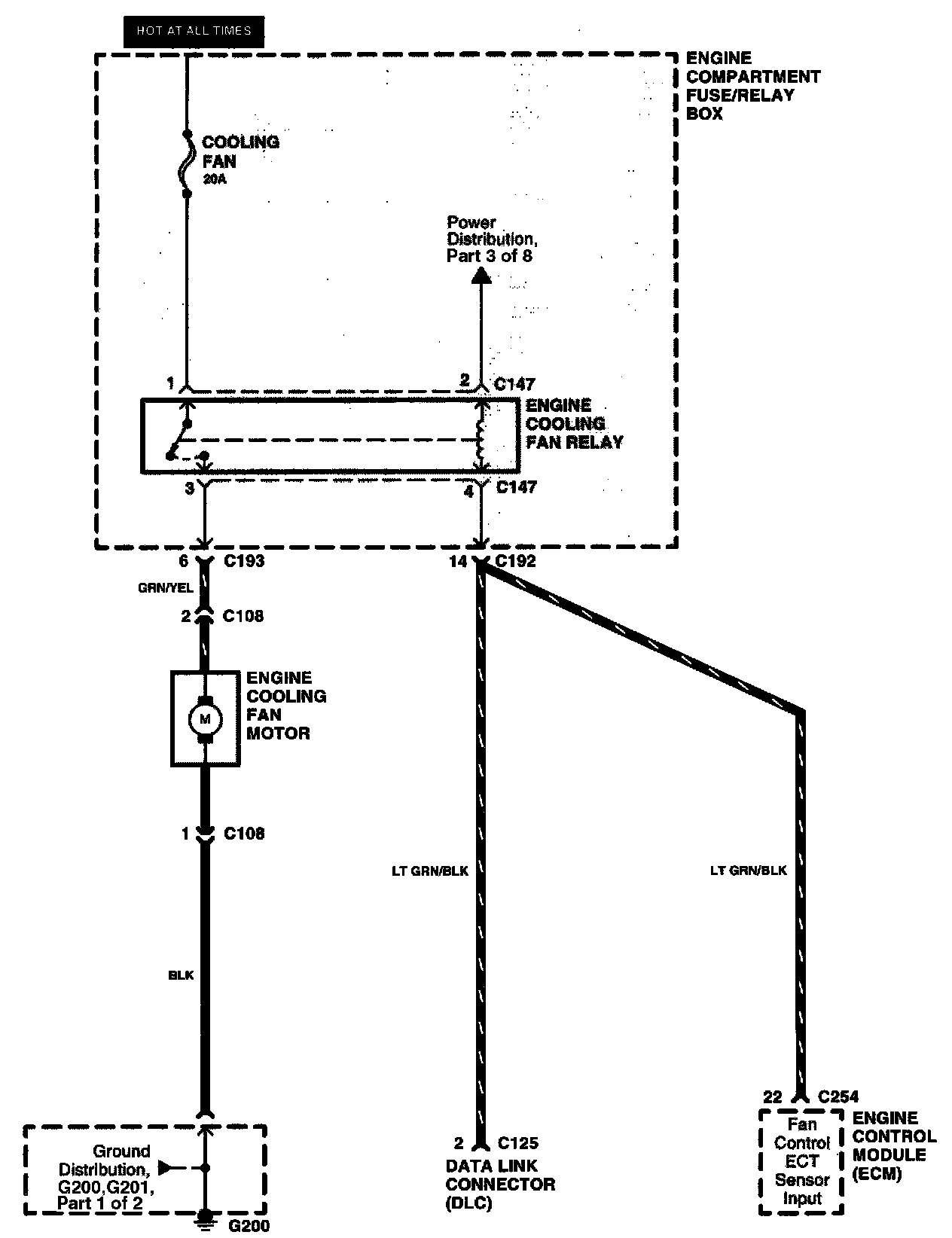

Radiator Cooling Fan Motor

Part 1 Of 2:
