Home >> Kia >> 2001 >> Spectra GSX L4-1.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> System Diagram

System Diagram

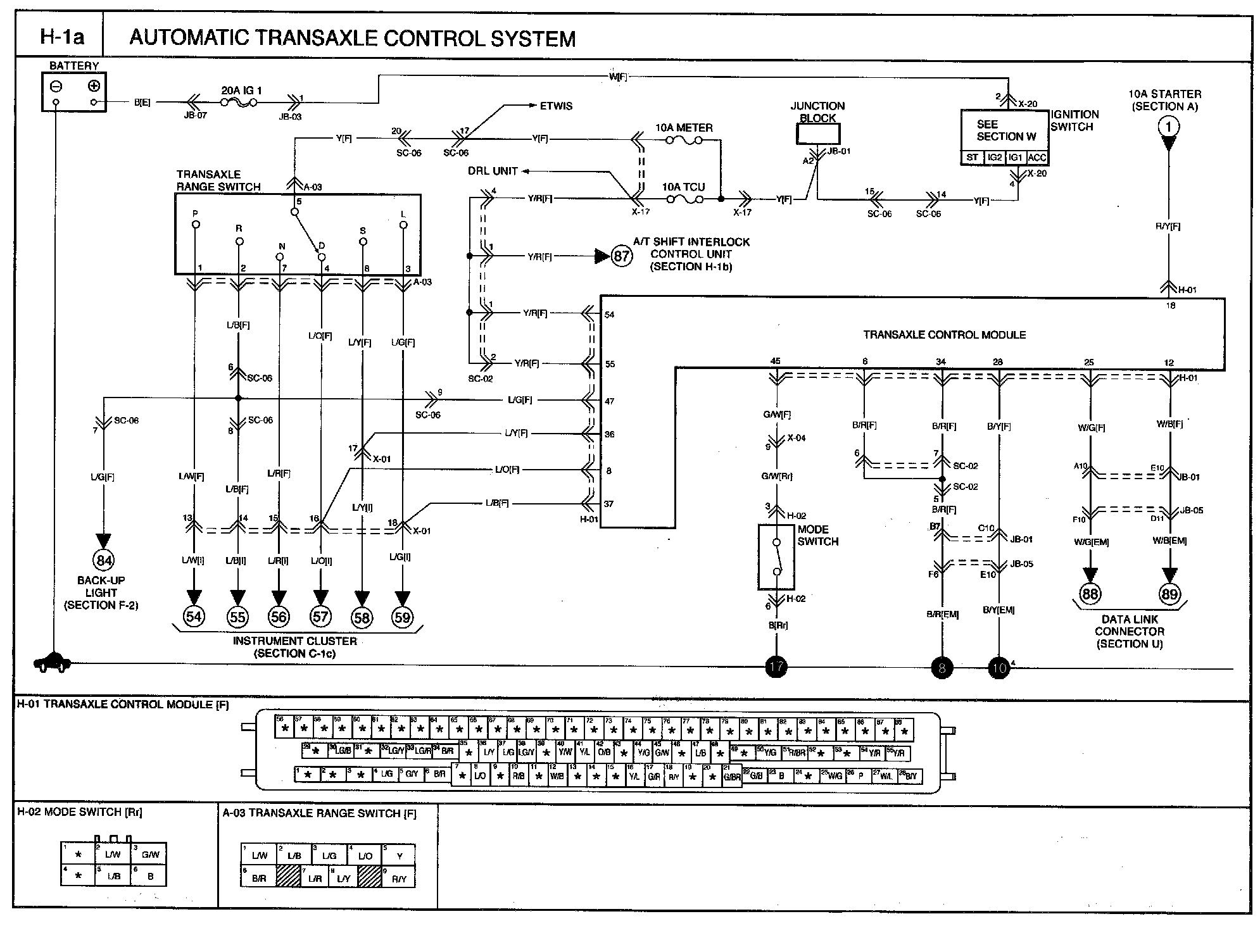

H-1a - Automatic Transaxle Control System Circuit:



H-1b - Automatic Transaxle Control System, A/T Shift Interlock Control System Circuit:
