Brake Pedal Free Play
BRAKE PEDAL FREE PLAYInspection
1. Pump pedal a few times (with engine off) to eliminate any slack in system.
2. To measure pedal free play, gently press pedal by hand until resistance is felt.
Pedal free play: 0.16 - 0.28 inch (4 - 7 mm)
Adjustment

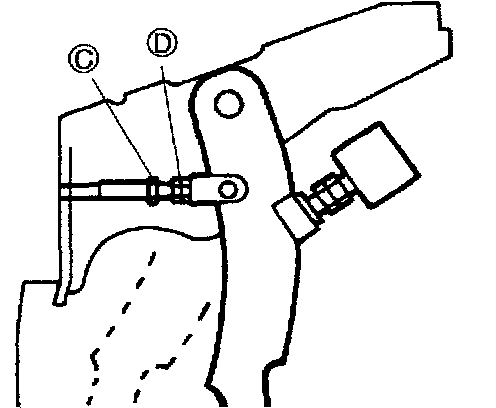

1. Loosen locknut D and turn rod C to adjust free play.
2. Verify pedal height and stoplight operation.
3. Tighten locknut D.
