Rear Hatch Trim

Removal

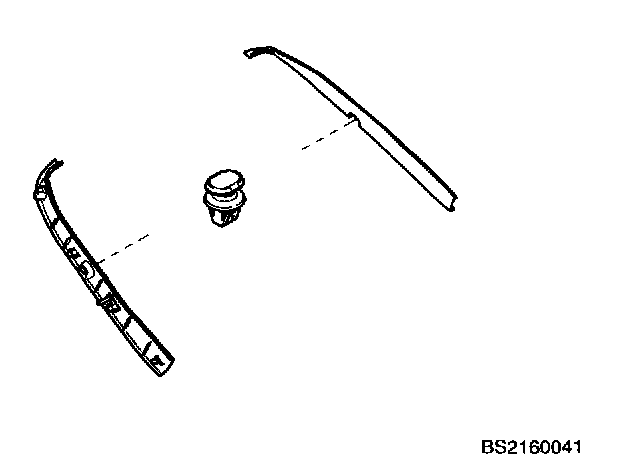

1. Remove hanger strap on rear hatch.




2. Unfasten rear hatch trim.
3. Unsnap captive assist grip mounting bolt cover from bottom and lift up.




4. Remove one assist grip mounting bolt.

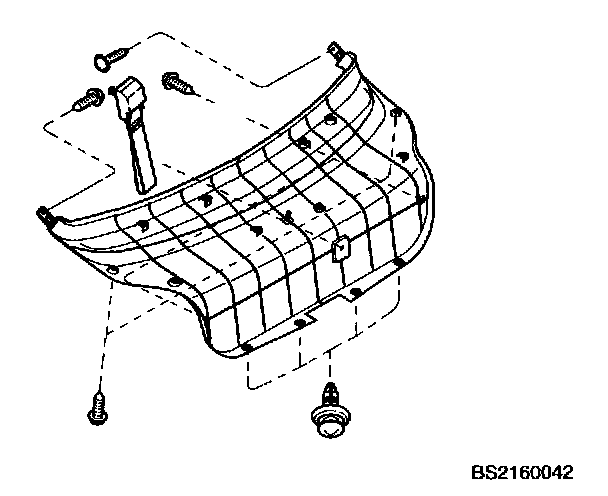

5. Remove six screws on rear hatch trim.
6. Remove four fasteners on rear hatch trim.
7. Remove rear hatch trim.

Installation

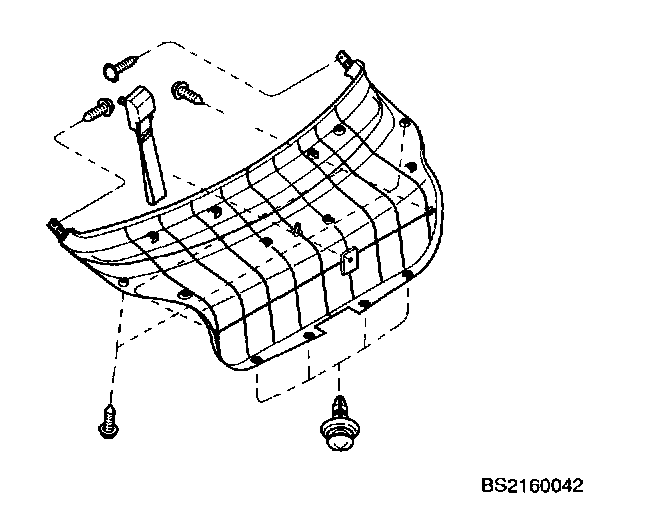

1. Position rear hatch trim.
2. Install four fasteners on rear hatch trim.
3. Install six screws on rear hatch trim.

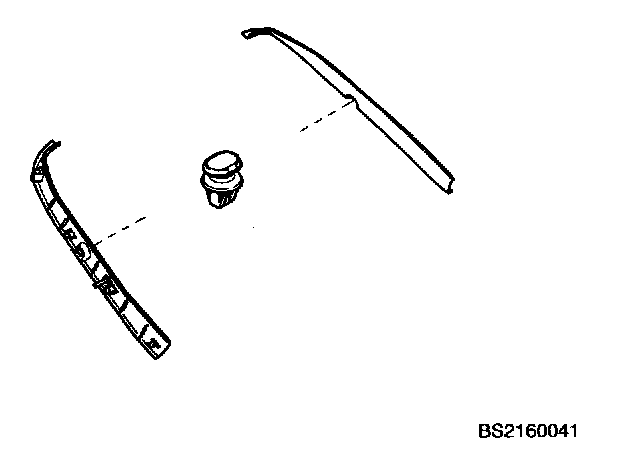

4. Install one assist grip mounting bolt and cover.




5. Position rear hatch trim and press in.




6. Install hanger strap on rear hatch.
