Rear Door Panel: Service and Repair
Removal1. Remove inside garnish.

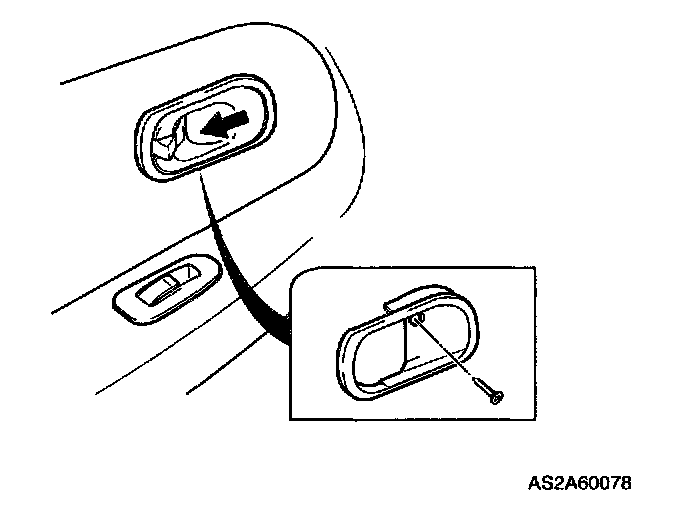

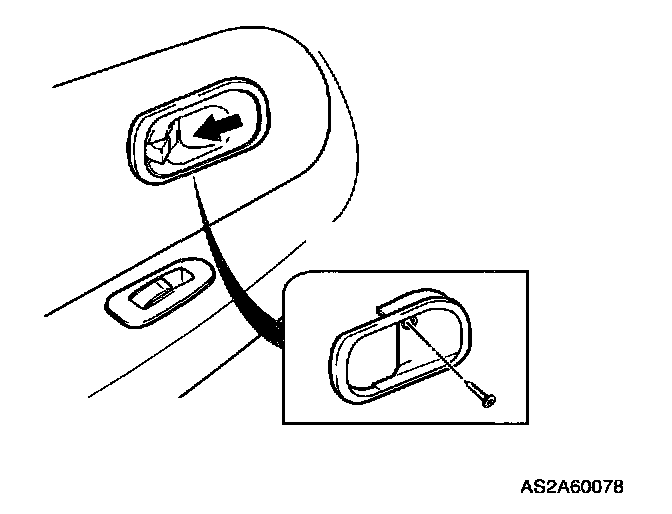

2. Remove one screw on inside door handle cover.
3. Remove inside door handle cover.

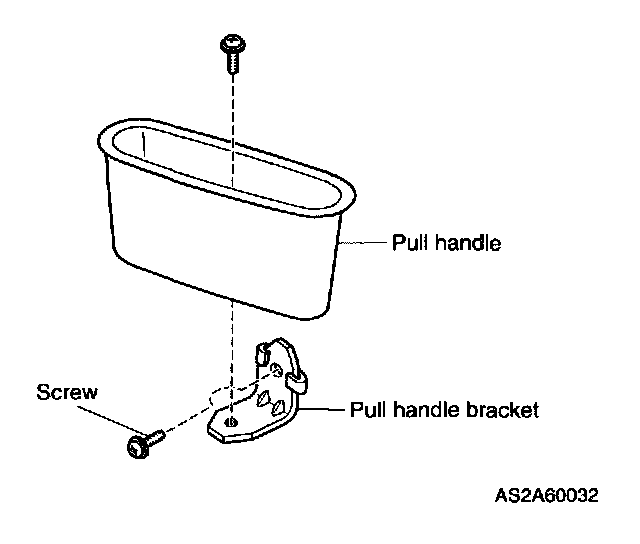

4. Remove one screw door handle in pull.
5. Remove door handle pull.

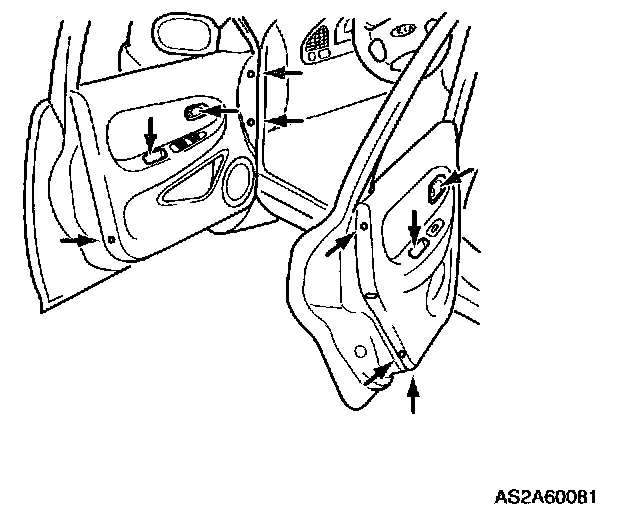

6. Remove three screws from left side and bottom side of rear door trim.
7. Unfasten rear door trim with trim removal tool.
8. Disconnect power window switch connector.
Installation
1. Connect window operating switch connector.
2. Install rear door trim.
3. Install inside door handle cover.
4. Install one screw on inside door handle cover.
5. Install door handle pull.
6. Install one screw on pull door handle.
7. Install three screws at left side and bottom side of rear door trim.
8. Install inside door garnish.
