Front Bumper: Service and Repair

Removal

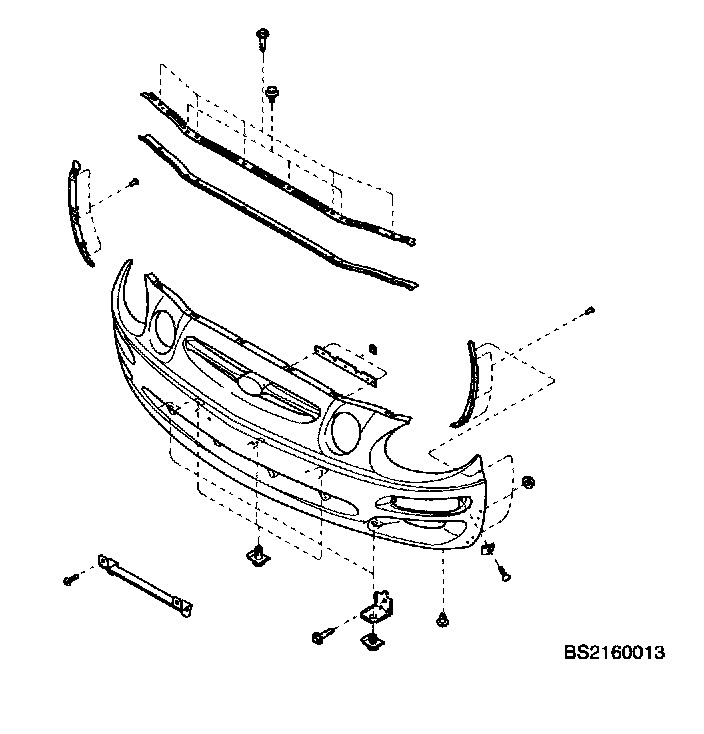

1. Remove five bolts and three fasteners from top of the bumper.
2. Remove the bumper retainer.
3. Remove five fasteners from bottom of the bumper.
4. Remove three nuts from side of the bumper.
5. Remove three fasteners from bottom of the bumper.
6. Repeat for right side.
7. Disconnect the connector for the left side of the front turn signal light.




8. Remove bumper face.

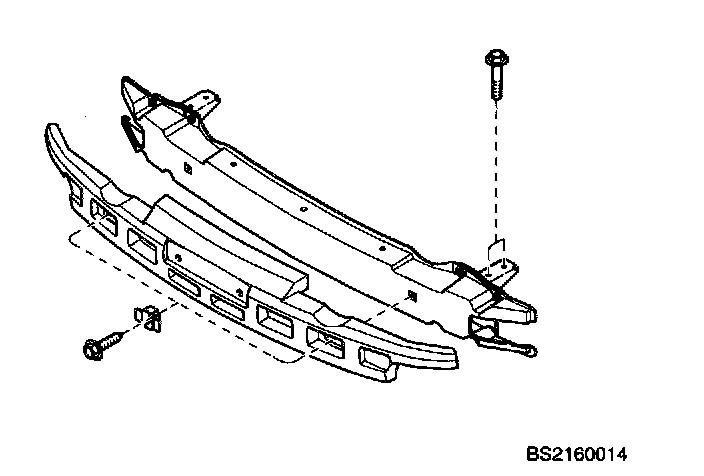

9. Remove two bolts from the left-hand bumper support bracket.
10. Repeat for the right side.




11. Remove bumper reinforcement.

Installation
Install front bumper in reverse order of removal.

Tighten bumper mounting bolts to 23 - 28 lb.ft (31 - 38 N.m, 3.2 - 3.9 kg.m)
