Fuel Leakage Test

Fuel Leakage Test
1. Remove injectors together with fuel rail.

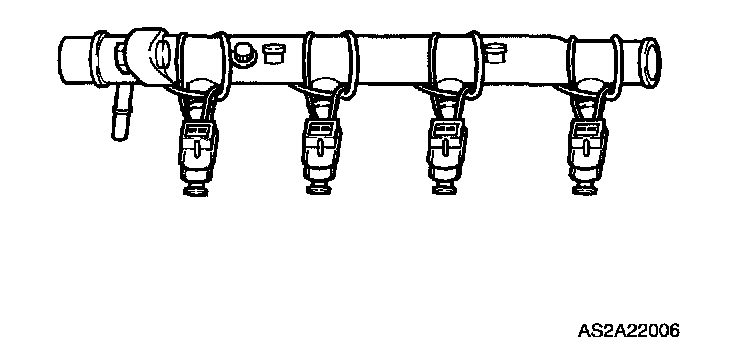

2. Secure injectors to fuel rail with wire.
3. Connect data link connector terminals FUEL PUMP and B+ with jumper wire.
4. Turn ignition switch ON.
5. Tilt injectors about 60 degrees and verify that no fuel leaks from the injector nozzles.
6. If fuel leaks, replace injector. Refer to Service and Repair.
7. Turn ignition switch OFF and remove jumper wire.
