Home >> Kia >> 2001 >> Spectra GS L4-1.8L >> Repair and Diagnosis >> Powertrain Management >> Description and Operation

Powertrain Management: Description and Operation

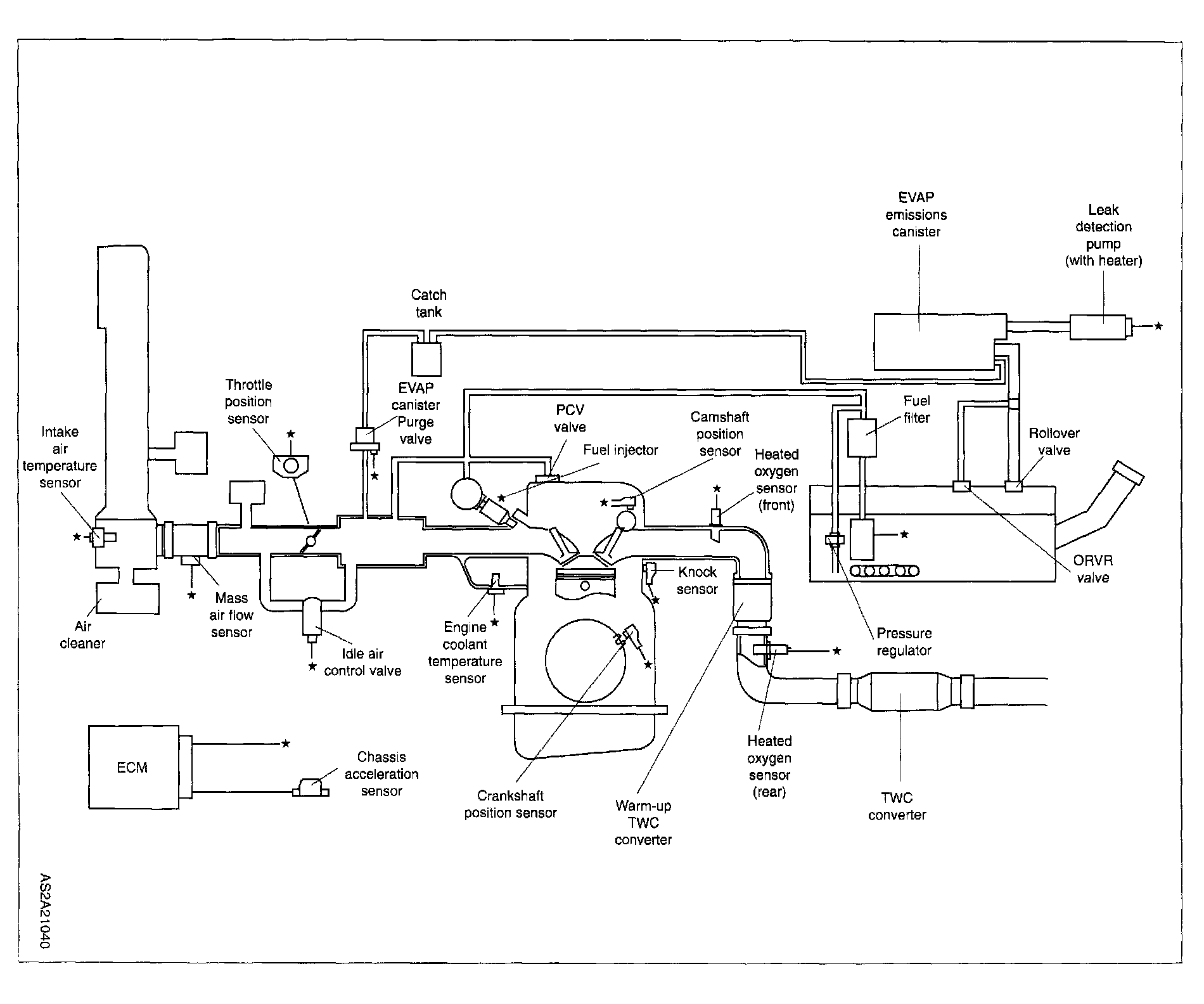

Functional Diagram:

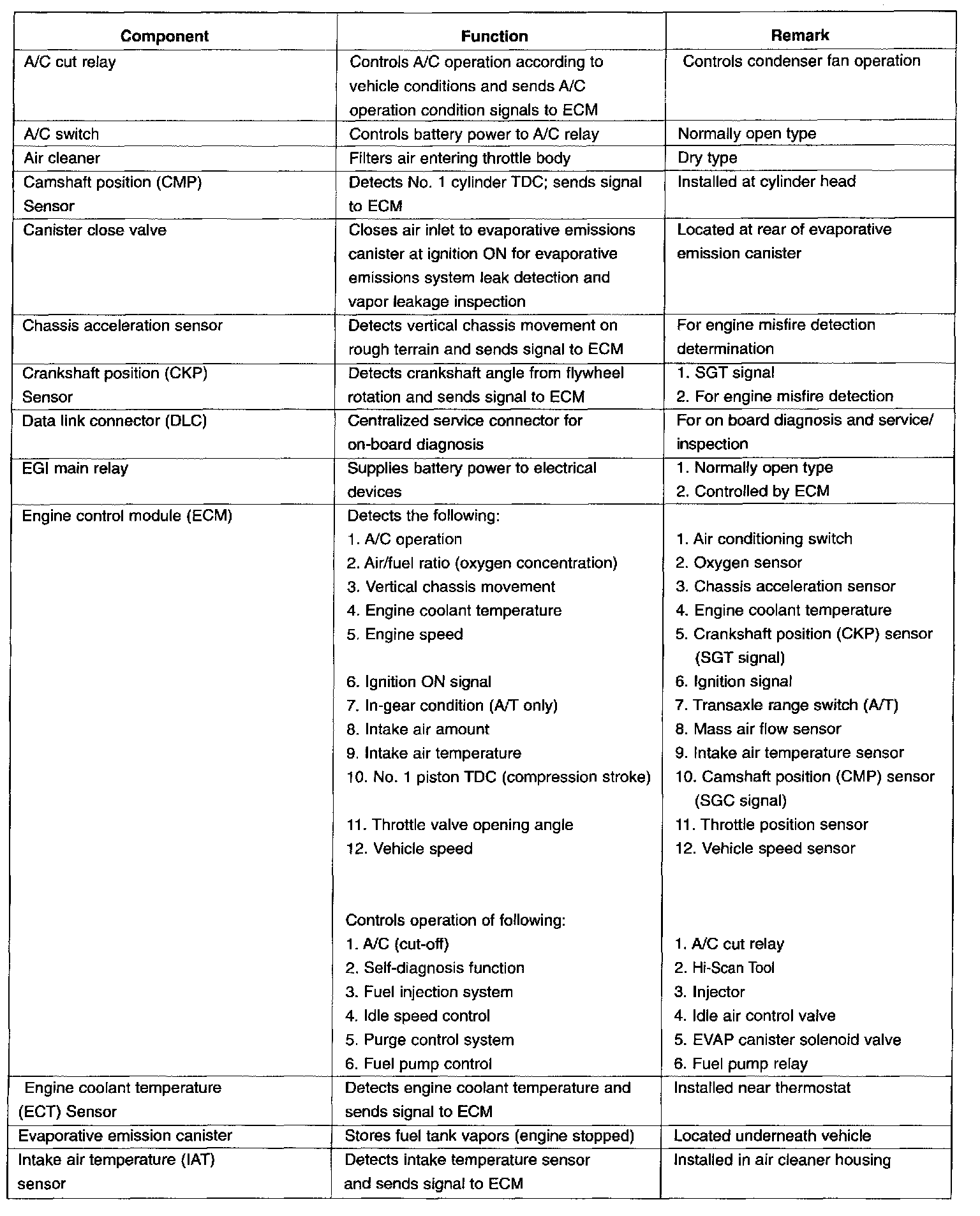

Component Description Table, Part 1:

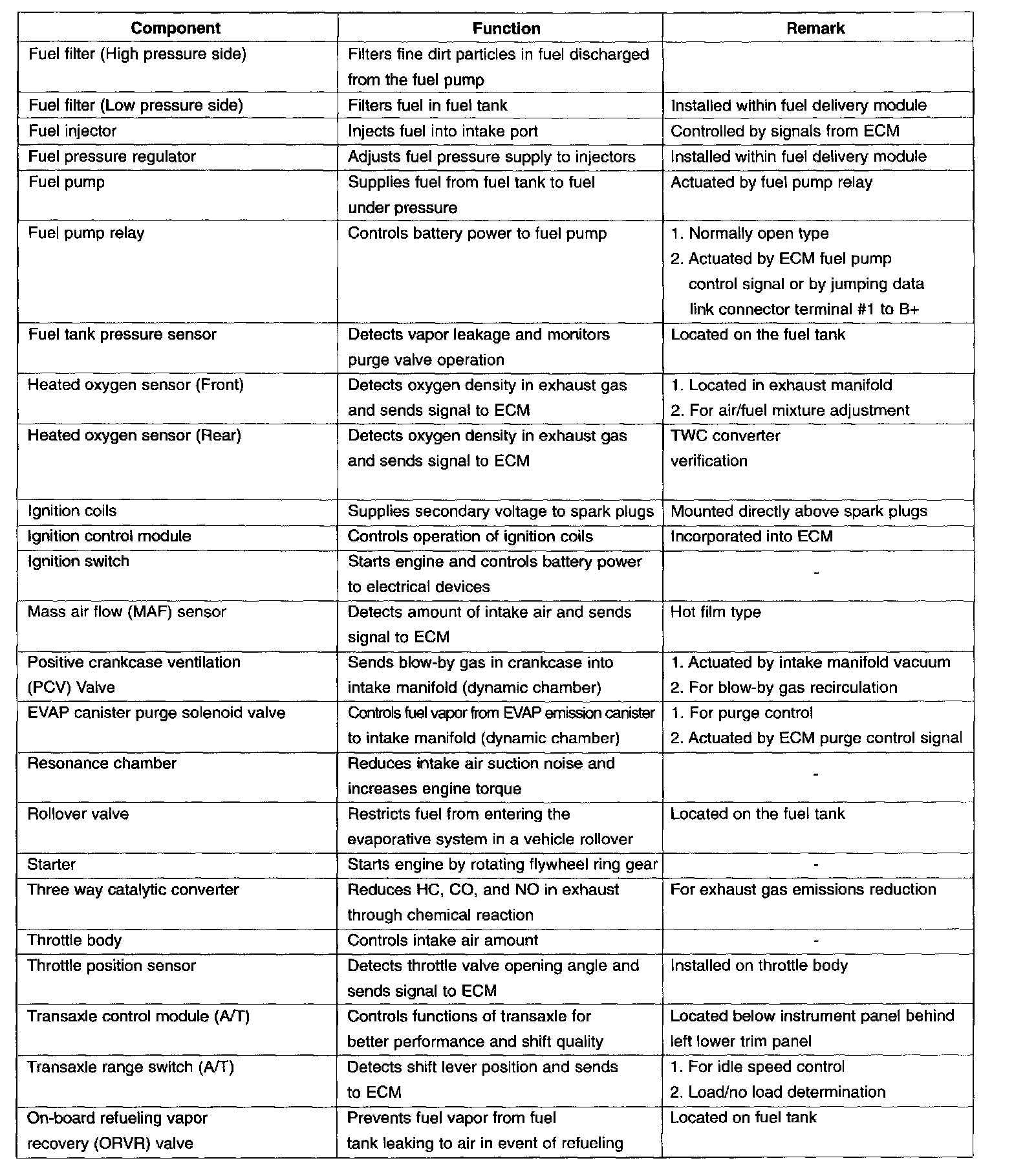

Component Description Table, Part 2:
